HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) AIR CLEANER Parts Diagram

Powered Carrier, Made in Japan

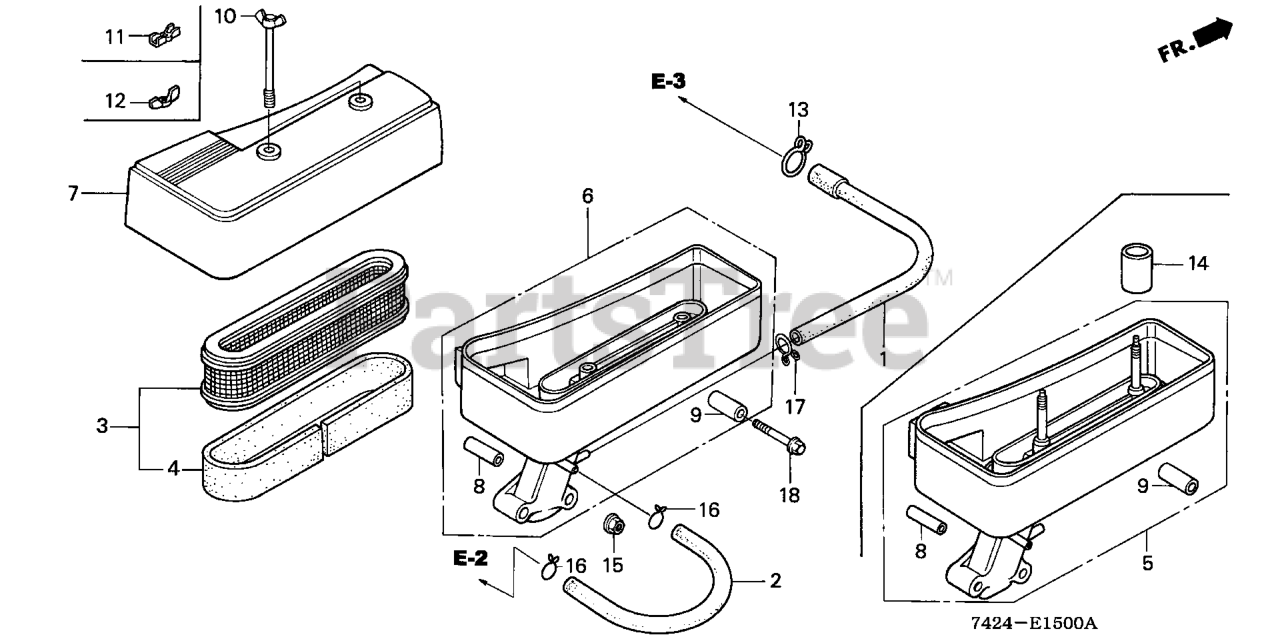

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-ZE6-010

TUBE, BREATHER (Honda Code 2580033).

$

$

Not available

2

Honda 15722-ZE6-G00

TUBE A, BREATHER

$

$

Not available

3

Honda 17210-ZE6-305

ELEMENT, AIR CLEANER

$20.99

$

In Stock, Qty 7

0

3

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5185855).

$

$

Not available

4

Honda 17218-ZE6-305

FILTER (OUTER)

$7.99

$

Usually ships in 3-6 days

0

4

Honda 17218-ZE6-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5213293).
(Superseded to 17218-ZE6-305)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 17220-ZE6-G03

HOUSING, AIR CLEANER

$

$

Not available

7

Honda 17231-ZE6-G00

COVER, AIR CLEANER

$

$

Not available

8

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17239-ZE6-300

COLLAR B, AIR CLEANER (Honda Code 1452994).

$4.99

$

In Stock, only 1 left!

0

12

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

14

Honda 91552-ZG3-010

COLLAR, ENGINE COVER (17MM) (A)

$

$

Not available

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95002-02070

CLIP, TUBE (B7) (Honda Code 0250639).

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.49

$

In Stock, only 2 left!

0
