HP400 K3 BA/B (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800001 - NAA-2800447) RECOIL STARTER Parts Diagram

Powered Carrier, Made in Japan

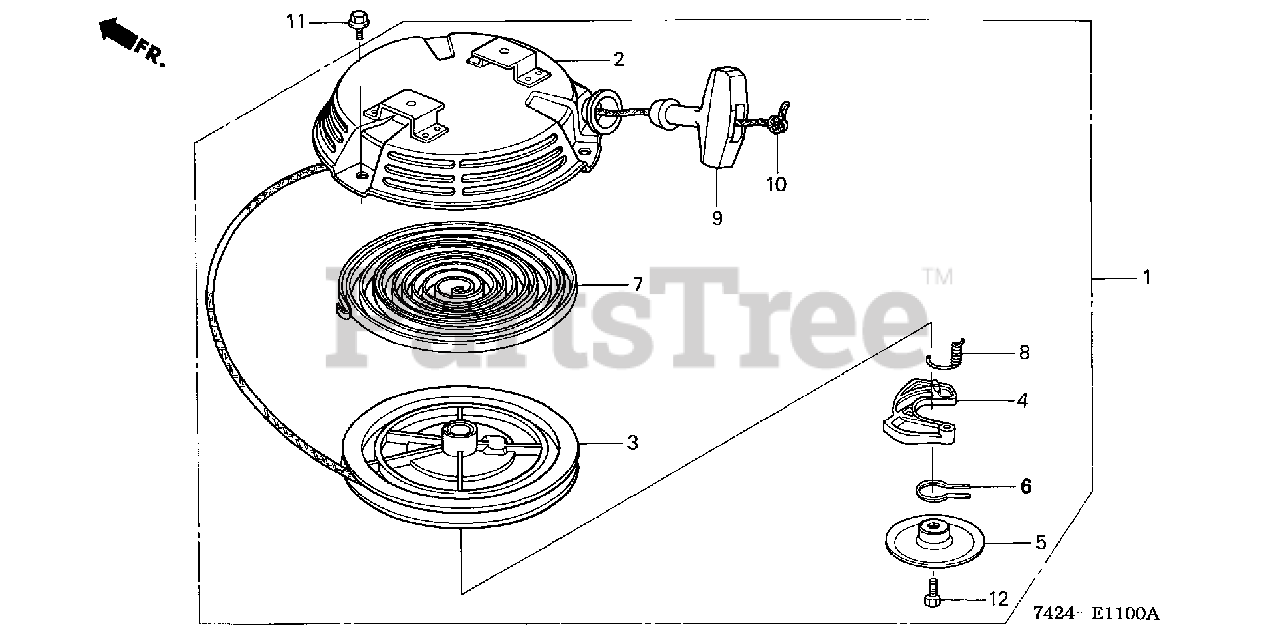

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE6-G01ZB

STARTER ASSY., RECOIL *R280* (POWER RED)

$

$

Not available

2

Honda 28410-ZE6-G01ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-ZE6-003

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-878-810

KNOB, STARTER

$

$

Not available

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

$5.99

$

In Stock, Qty 10

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

$5.99

$

In Stock, Qty 10

0

11

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0

12

Honda 92101-06012-0H

BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0
