HP400 K3 BA/B (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800001 - NAA-2800447) CARRIER (HP400K3) Parts Diagram

Powered Carrier, Made in Japan

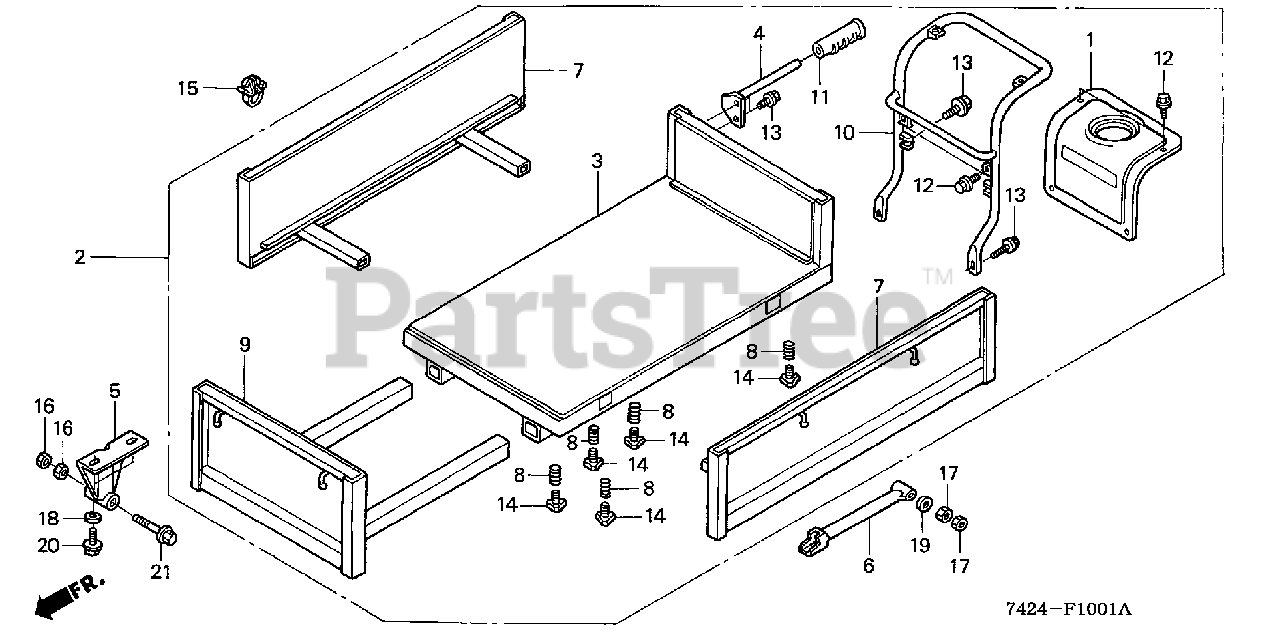

CARRIER (HP400K3) Parts Diagram

  • Title

1

Honda 17550-742-000ZA

PLATE, TANK GUARD *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

2

Honda 52100-742-C11ZA

BODY ASSY., CARRIER *NH35M* (CLOUD SILVER METALLIC)

Note: Use up to Frame SN 2800235.

$

$

Currently unavailable

2

Honda 52100-742-C12ZA

BODY ASSY., CARRIER *NH35M* (CLOUD SILVER METALLIC)

Note: Use from Frame SN 2800236.

$

$

Currently unavailable

3

Honda 52110-742-C11

BODY, CARRIER

Note: Use up to Frame SN 2800235.

$

$

Not available

3

Honda 52110-742-C12

BODY, CARRIER

Note: Use from Frame SN 2800236.

$

$

Not available

4

Honda 52117-742-921

HANDLE, CARRIER

$45.99

$

Usually ships in 3-6 days

0

5

Honda 52120-740-C01

BRACKET, CARRIER

$44.99

$

Usually ships in 3-6 days

0

6

Honda 52136-742-C11

PIPE, DUMP LOCK

$

$

Not available

7

Honda 52210-742-C11

PIPE, GUIDE

Note: Use up to Frame SN 2800235.

$

$

Not available

7

Honda 52210-742-C12

PIPE, GUIDE

Note: Use from Frame SN 2800236.

$432.99

$

Usually ships in 3-6 days

0

8

Honda 52218-740-921

SPRING, KNOB BOLT

$9.99

$

Usually ships in 3-6 days

0

9

Honda 52420-742-C11

PLATE, FR. STOPPER

Note: Use up to Frame SN 2800235.

$

$

Not available

9

Honda 52420-742-C12

PLATE, FR. STOPPER

Note: Use from Frame SN 2800236.

$531.99

$

Usually ships in 3-6 days

0

10

Honda 52610-742-010

PIPE, ENGINE GUARD

$

$

Not available

11

Honda 53165-740-D01

GRIP, HANDLE

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90001-742-C11

BOLT, FLANGE (6X10)

$

$

Not available

13

Honda 90002-742-C11

BOLT, FLANGE (8X16)

$

$

Not available

14

Honda 90106-740-921

BOLT, KNOB

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90623-SB0-003

CLIP, WIRE HARNESS (8MM) *NH1* (BLACK)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 94001-12080-0S

NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 94030-12000

NUT, HEX. (12MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

19

Honda 94103-12800

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-12080-08

BOLT, FLANGE (12X80)

$5.99

$

Usually ships in 3-6 days

0
