HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) TRANSMISSION GEAR Parts Diagram

Powered Carrier, Made in Japan

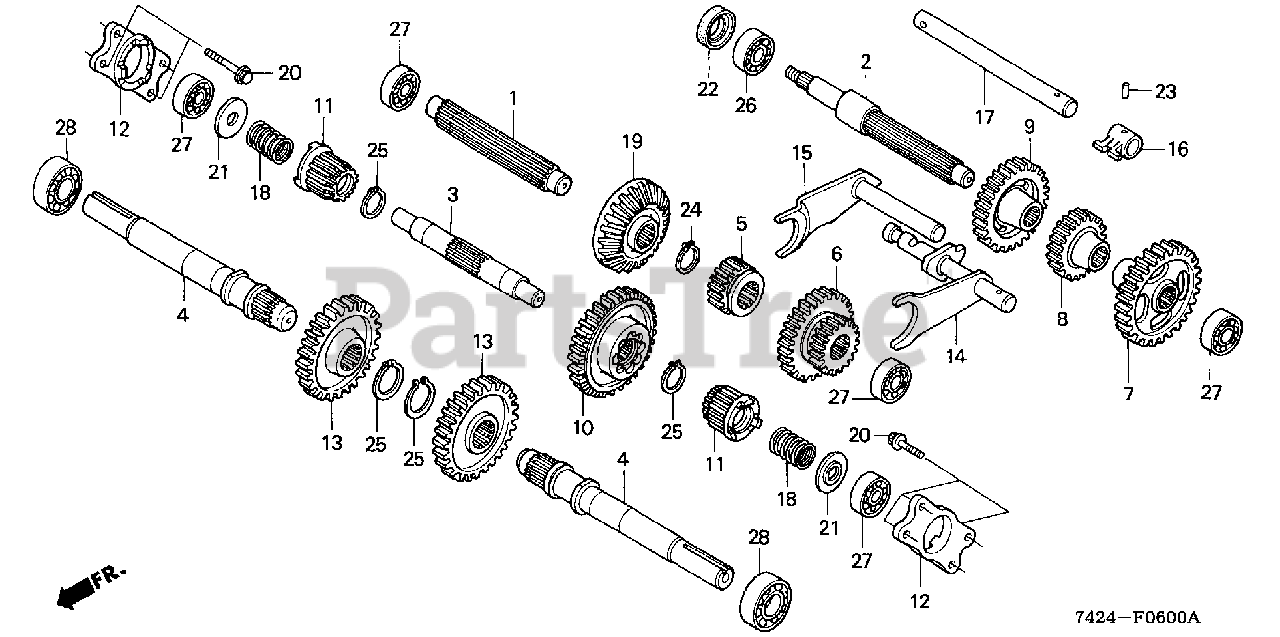

TRANSMISSION GEAR Parts Diagram

  • Title

1

Honda 23112-740-000

SHAFT, INPUT

$

$

Not available

2

Honda 23221-740-000

COUNTERSHAFT

$

$

Not available

3

Honda 23231-740-000

SHAFT, SIDE CLUTCH

$

$

Not available

4

Honda 23371-740-010

SHAFT, WHEEL

Note: Use up to Frame SN 2302008.

$

$

Currently unavailable

4

Honda 23371-740-020

SHAFT, WHEEL

Note: Use from Frame SN 2302009.

$

$

Not available

5

Honda 23411-740-010

GEAR, INPUT SHAFT CHANGE (19T)

$67.99

$

Usually ships in 3-6 days

0

6

Honda 23412-742-900

GEAR, CHANGE

$181.99

$

Usually ships in 3-6 days

0

7

Honda 23415-740-010

GEAR, FIRST IDLE (39T)

$148.99

$

Usually ships in 3-6 days

0

8

Honda 23416-742-010

GEAR, SECOND IDLE (21T)

$104.99

$

Usually ships in 3-6 days

0

9

Honda 23422-740-000

GEAR, COUNTERSHAFT (36T)

$

$

Not available

10

Honda 23461-740-010

GEAR, SIDE CLUTCH DRIVING (49T)

$252.99

$

Usually ships in 3-6 days

0

11

Honda 23511-740-000

GEAR, SIDE CLUTCH (16T)

$

$

Not available

12

Honda 23521-740-000

CASE, SIDE CLUTCH BEARING

$134.99

$

Usually ships in 3-6 days

0

13

Honda 23581-740-000

GEAR, FINAL (35T)

$

$

Not available

14

Honda 24110-740-900

FORK, INPUT SHAFT SHIFT

$80.99

$

Usually ships in 3-6 days

0

15

Honda 24120-740-010

SWINGARM, SHIFT

$62.99

$

Usually ships in 3-6 days

0

16

Honda 24123-740-000

ARM, FORK SELECTING

$48.99

$

Usually ships in 3-6 days

0

17

Honda 24311-740-000

SHAFT, SHIFTING

$25.99

$

Usually ships in 3-6 days

0

18

Honda 40181-776-000

SPRING, SIDE CLUTCH

$5.49

$

Usually ships in 3-6 days

0

19

Honda 41141-742-000

GEAR, DRIVEN BEVEL (24T)

$162.99

$

Usually ships in 3-6 days

0

20

Honda 90030-PC8-000

BOLT, SPECIAL (8MM)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90501-740-010

WASHER, CLUTCH SPRING

$10.99

$

Usually ships in 3-6 days

0

22

Honda 91202-740-003

OIL SEAL (20X31X7)

$9.49

$

Usually ships in 3-6 days

0

23

Honda 94305-50221

PIN, SPRING (5X22)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 94510-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94510-25000

CIRCLIP (OUTER) (25MM)

$1.99

$

In Stock, Qty 20+

0

26

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$21.99

$

In Stock, only 2 left!

0

27

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
