HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) MUFFLER Parts Diagram

Powered Carrier, Made in Japan

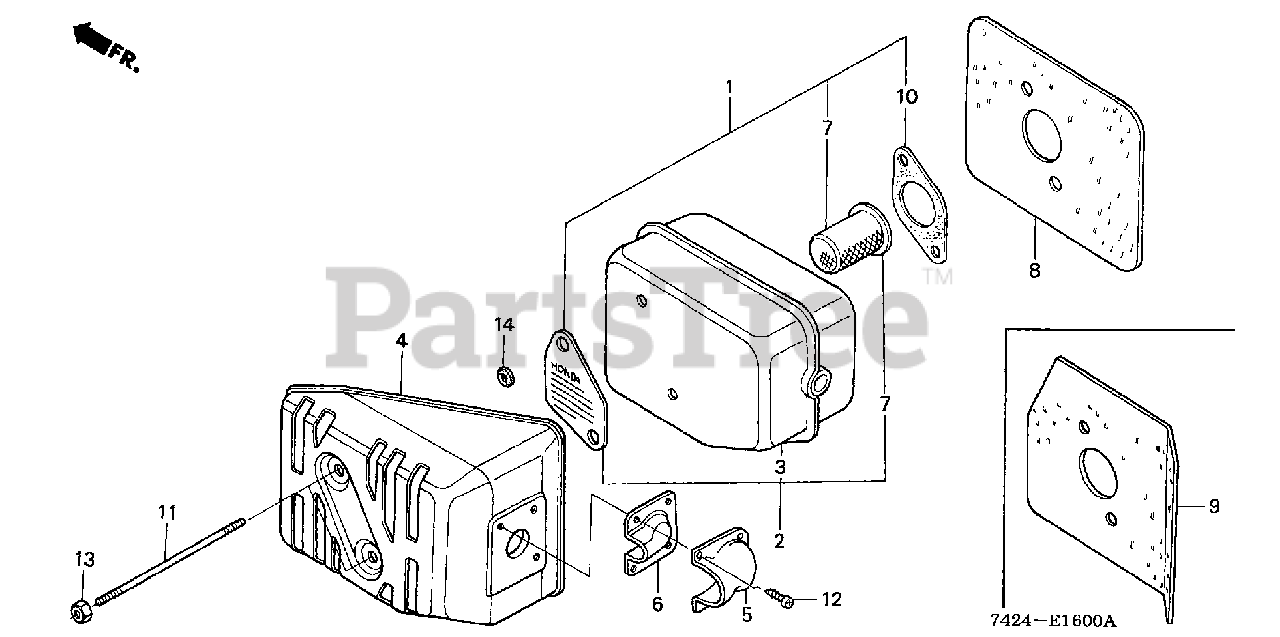

MUFFLER Parts Diagram

  • Title

1

Honda 06180-ZE6-820

ARRESTER KIT, SPARK

$29.99

$

In Stock, only 1 left!

0

3

Honda 18310-ZE6-003

MUFFLER

$

$

Not available

4

Honda 18320-ZE6-G04

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$44.99

$

Usually ships in 3-6 days

0

4

Honda 18320-ZE6-902

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER

$

$

Currently unavailable

5

Honda 18341-733-010

SEE PART DETAILS - PRI; DEFLECTOR, MUFFLER

Note: Use from Engine SN 2450904.

$

$

Not available

5

Honda 18341-ZE6-G10

SEE PART DETAILS - SUP; DEFLECTOR, MUFFLER

Note: Use up to Engine SN 2450903.

$

$

Currently unavailable

6

Honda 18342-733-010

GUIDE, MUFFLER

$13.99

$

Usually ships in 3-6 days

0

7

Honda 06180-888-505

ARRESTER KIT, SPARK

$19.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZE6-800

GASKET, MUFFLER

$

$

Not available

10

Honda 18381-ZE6-820

GASKET, MUFFLER

$4.99

$

In Stock, Qty 7

0

11

Honda 90013-ZE7-000

BOLT, STUD (6X82)

$5.99

$

In Stock, only 2 left!

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 14

0

13

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0
