HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) FUEL TANK Parts Diagram

Powered Carrier, Made in Japan

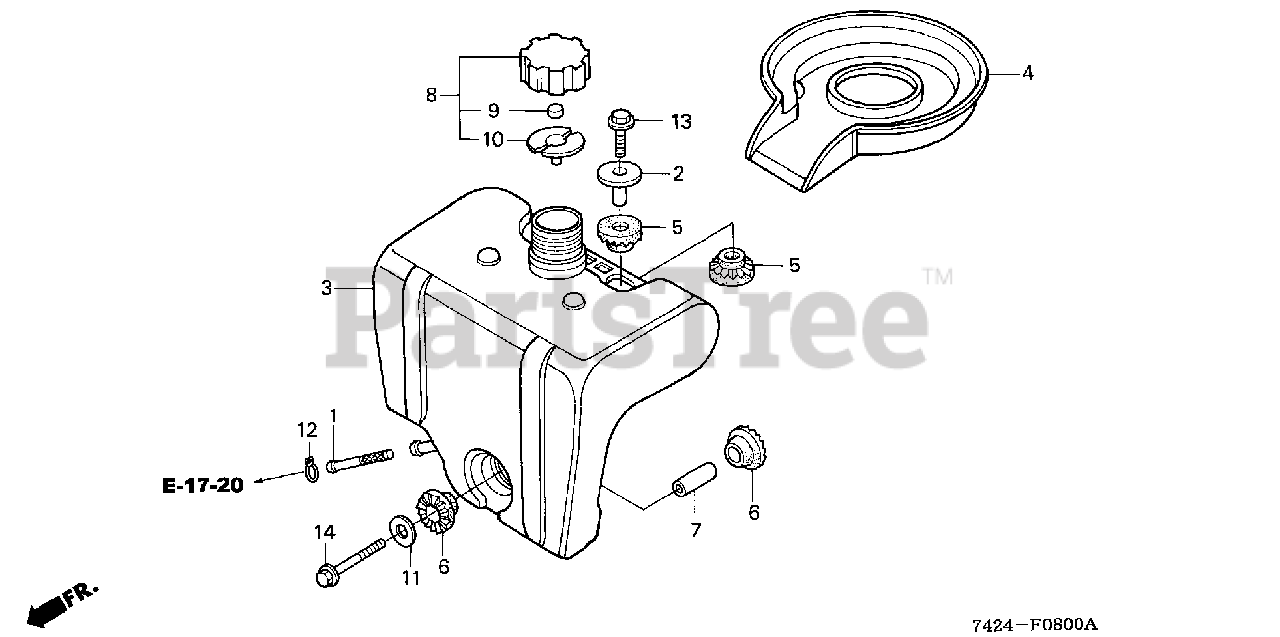

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, only 2 left!

0

2

Honda 17248-742-000

COLLAR, FUEL TANK

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17510-742-010

TANK, FUEL

$112.99

$

Usually ships in 3-6 days

0

4

Honda 17514-742-300

SEAL, FILLER NECK

$22.99

$

In Stock, only 1 left!

0

5

Honda 17515-742-000

RUBBER, TANK MOUNTING

$7.49

$

In Stock, only 2 left!

0

6

Honda 17516-896-700

RUBBER B, TANK MOUNTING

$8.99

$

In Stock, Qty 12

0

7

Honda 17518-ZE6-000

COLLAR, TANK SETTING

$

$

Not available

8

Honda 17620-ZE7-000

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

$12.99

$

In Stock, only 1 left!

0

9

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90455-896-700

WASHER, TANK MOUNTING

$3.99

$

In Stock, only 2 left!

0

12

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0

14

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0
