HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) CARRIER (HP400, HP400K1) Parts Diagram

Powered Carrier, Made in Japan

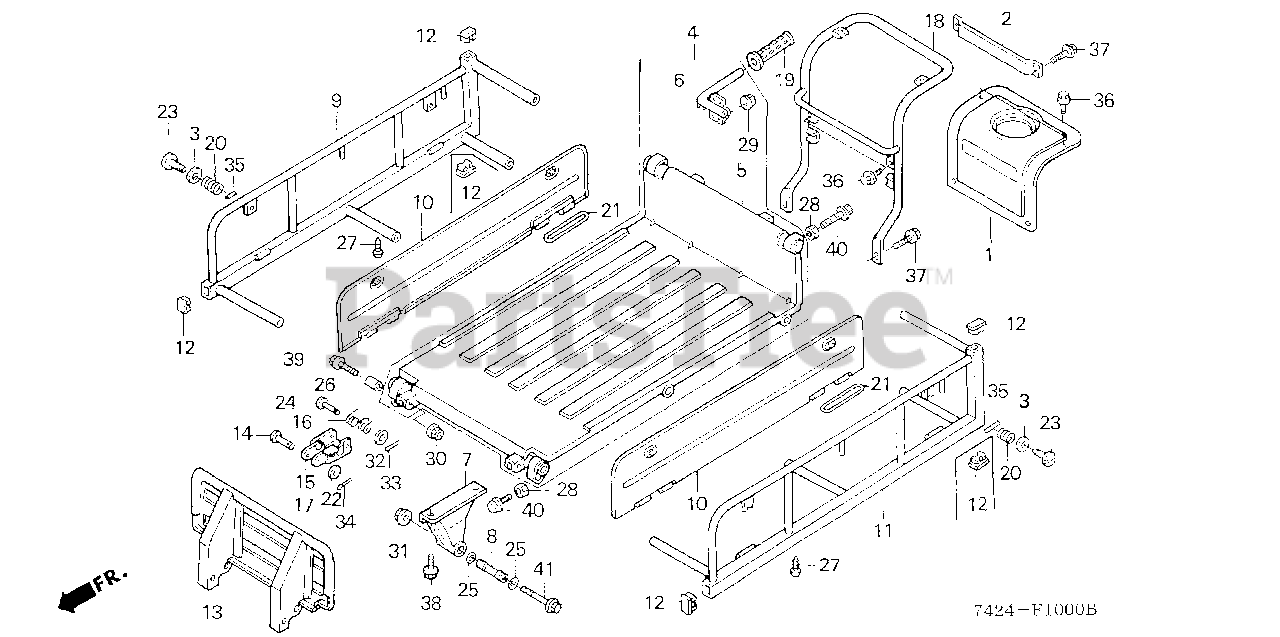

CARRIER (HP400, HP400K1) Parts Diagram

  • Title

1

Honda 17550-742-000ZA

PLATE, TANK GUARD *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

2

Honda 22846-742-000

PLATE, CLUTCH ARM GUARD

$

$

Not available

3

Honda 50129-862-000

RETAINER, LOCK SPRING

$5.99

$

Usually ships in 3-6 days

0

4

Honda 52100-742-701ZA

BODY ASSY., CARRIER *NH35M* (CLOUD SILVER METALLIC)

$

$

Currently unavailable

5

Honda 52110-742-701ZA

BODY, CARRIER *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

6

Honda 52117-742-701ZA

SEE PART DETAILS - PRI; HANDLE, CARRIER *NH35M* (CLOUD SILVER METALLIC)

$91.99

$

Usually ships in 3-6 days

0

7

Honda 52120-742-000

BRACKET, CARRIER

$

$

Not available

8

Honda 52122-740-000

COLLAR, CARRIER BRACKET

$

$

Not available

9

Honda 52210-742-701

PIPE, R. GUIDE

$

$

Not available

10

Honda 52211-742-700ZA

PLATE, CARRIER SIDE PANEL *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

11

Honda 52310-742-701

PIPE, L. GUIDE

$

$

Not available

12

Honda 52312-742-000

CAP, PIPE GUIDE

$

$

Not available

13

Honda 52420-742-700ZA

PLATE, FR. STOPPER *NH35M* (CLOUD SILVER METALLIC)

$

$

Currently unavailable

14

Honda 52421-742-700

PIN A, FR. STOPPER LOCK

$

$

Not available

15

Honda 52430-742-701

LOCK ASSY., R. FR. STOPPER

$

$

Not available

16

Honda 52434-742-700

SPRING, FR. STOPPER

$

$

Not available

17

Honda 52440-742-701

SEE PART DETAILS - PRI; LOCK ASSY., L. FR. STOPPER

$

$

Not available

18

Honda 52610-742-010

PIPE, ENGINE GUARD

$

$

Not available

19

Honda 53165-397-940

GRIP, R. HANDLE

$22.99

$

Usually ships in 3-6 days

0

20

Honda 63173-862-000

SPRING, COVER LOCK

$6.99

$

Usually ships in 3-6 days

0

21

Honda 76326-732-010

PIN, CHUTE GUIDE

$

$

Not available

22

Honda 90501-742-700

WASHER, FR. STOPPER LOCK

$

$

Not available

23

Honda 90751-734-000

PIN, COVER LOCK

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90751-742-700

PIN, FR. STOPPER

$

$

Not available

25

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

26

Honda 91556-742-700

COLLAR, FR. STOPPER

$

$

Not available

27

Honda 93901-25320

SCREW, TAPPING (5X16)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94002-10000-0S

NUT, HEX. (10MM)

$6.49

$

Usually ships in 3-6 days

0

29

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

30

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

31

Honda 94050-12000

NUT, FLANGE (12MM)

$1.49

$

In Stock, only 3 left!

0

32

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.99

$

In Stock, Qty 6

0

33

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

37

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-10020-00

BOLT, FLANGE (10X20)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 95701-10045-00

BOLT, FLANGE (10X45)

$3.99

$

Usually ships in 3-6 days

0

40

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 95701-12070-00

BOLT, FLANGE (12X70)

$4.49

$

Usually ships in 3-6 days

0
