HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) AIR CLEANER Parts Diagram

Powered Carrier, Made in Japan

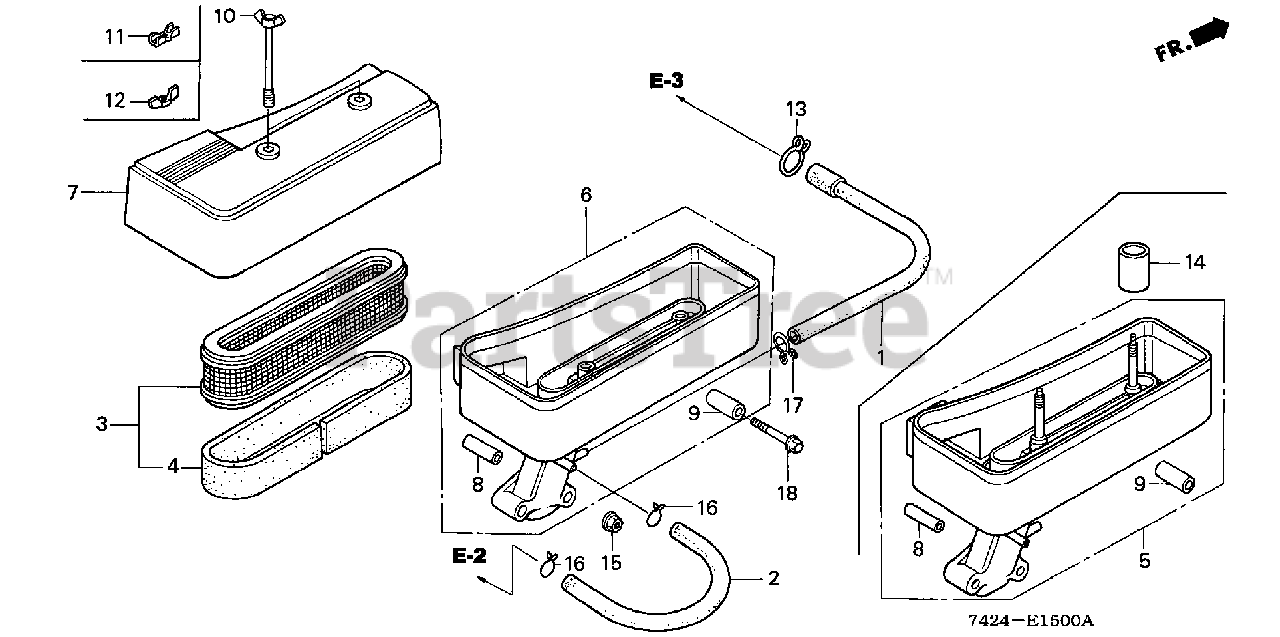

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-ZE6-010

TUBE, BREATHER

$

$

Not available

2

Honda 15722-ZE6-G00

TUBE A, BREATHER

$

$

Not available

3

Honda 17210-ZE6-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE6-305)

$20.99

$

In Stock, Qty 7

0

3

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$

$

Not available

4

Honda 17218-ZE6-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE6-305)

$7.99

$

Usually ships in 3-6 days

0

4

Honda 17218-888-003

SEE PART DETAILS - SUP; FILTER (OUTER)
(Superseded to 17218-ZE6-505)

$

$

Not available

5

Honda 17220-ZE6-G03

HOUSING, AIR CLEANER

$

$

Not available

7

Honda 17231-ZE6-G00

COVER, AIR CLEANER

$

$

Not available

8

Honda 17238-ZE7-010

COLLAR, AIR CLEANER

$4.99

$

Usually ships in 3-6 days

0

9

Honda 17239-ZE6-300

COLLAR B, AIR CLEANER

$4.99

$

In Stock, only 1 left!

0

11

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

Note: Use up to Engine SN 2429892.

$10.99

$

In Stock, only 3 left!

0

11

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use from Engine SN 2429893.

$4.49

$

In Stock, only 1 left!

0

13

Honda 90652-MB1-000

CLIP, TUBE

$1.49

$

Usually ships in 3-6 days

0

14

Honda 91552-ZG3-010

COLLAR, ENGINE COVER (17MM) (A)

$

$

Not available

15

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

17

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.99

$

In Stock, only 2 left!

0

18

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0
