HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) TRANSMISSION CASE Parts Diagram

Powered Carrier, Made in Japan

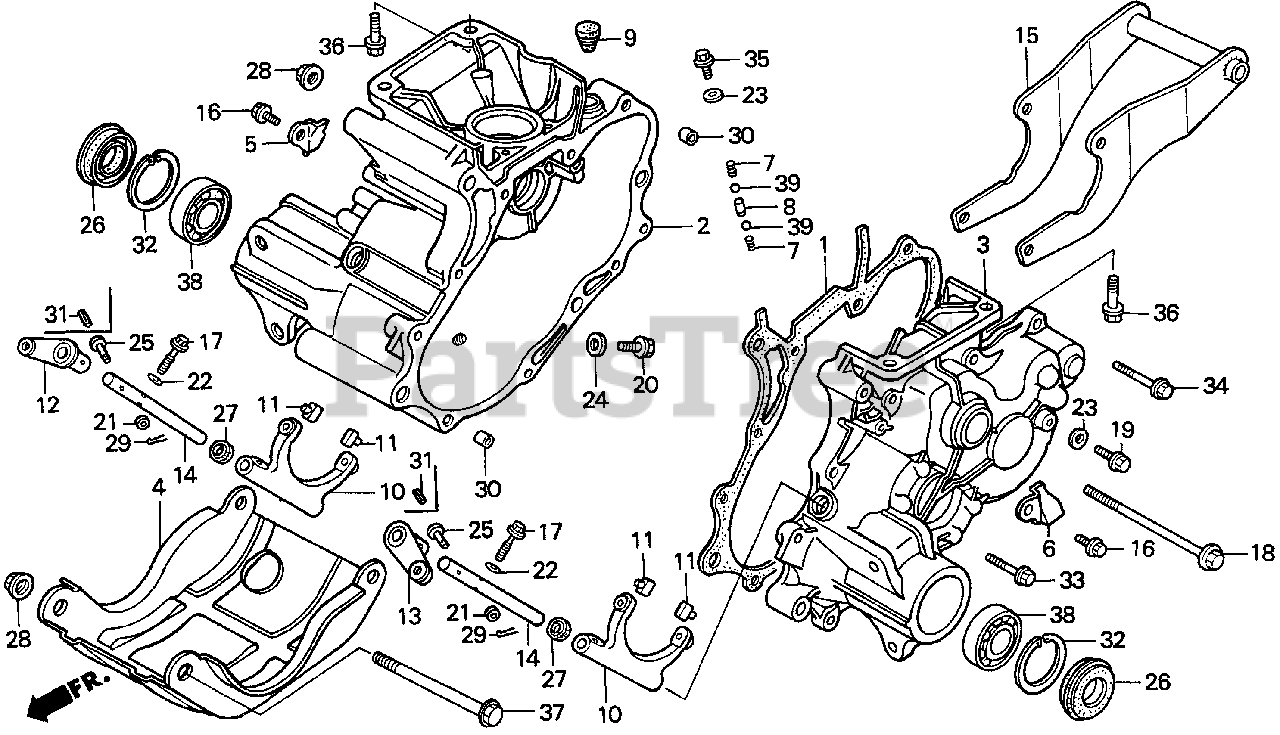

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21281-740-020

SEE PART DETAILS - PRI; GASKET, TRANSMISSION

$

$

Not available

2

Honda 215A1-740-000

CASE, R. TRANSMISSION

$

$

Not available

3

Honda 216A1-740-000

SEE PART DETAILS - SUP; CASE, L. TRANSMISSION

$

$

Currently unavailable

4

Honda 21911-740-000

PROTECTOR, TRANSMISSION CASE

$58.99

$

Usually ships in 3-6 days

0

5

Honda 21913-740-000

PLATE, R. SIDE CLUTCH

$

$

Not available

6

Honda 21914-740-000

PLATE, L. SIDE CLUTCH

$5.49

$

Usually ships in 3-6 days

0

7

Honda 24271-765-000

SPRING, BALL SETTING

$2.99

$

Usually ships in 3-6 days

0

8

Honda 24481-740-000

PIECE, INTERLOCK

$7.49

$

Usually ships in 3-6 days

0

9

Honda 25611-729-000

CAP, TRANSMISSION OIL
(Superseded to 25611-729-010)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 40111-740-000

FORK, SIDE CLUTCH

$

$

Not available

11

Honda 40112-740-003

PIN, FORK

$10.99

$

Usually ships in 3-6 days

0

12

Honda 40310-740-010

SEE PART DETAILS - PRI; ARM, R. SIDE CLUTCH

$

$

Not available

13

Honda 40320-740-010

ARM, L. SIDE CLUTCH

$42.99

$

Usually ships in 3-6 days

0

14

Honda 40331-740-000

SHAFT, SIDE CLUTCH ARM

$

$

Not available

15

Honda 42763-740-000

GUARD, TRANSMISSION

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

17

Honda 90028-634-000

BOLT, HEX. (6X21)

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90057-671-000

BOLT, ALTERNATOR

$31.99

$

Usually ships in 3-6 days

0

19

Honda 90111-727-000

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

22

Honda 90411-744-000

WASHER, CONICAL SPRING (6MM)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 90429-PD1-003

WASHER, SEALING (8MM)

$

$

Not available

24

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 91206-733-014

SEE PART DETAILS - SUP; OIL SEAL (25X52X9)

Note: Use up to Frame SN 2007112.

$27.99

$

Usually ships in 0 days

0

26

Honda 91206-733-024

SEE PART DETAILS - PRI; OIL SEAL (25X52X9)

$27.99

$

Usually ships in 3-6 days

0

27

Honda 91251-740-003

OIL SEAL (12X18.4.2)

$5.99

$

Usually ships in 3-6 days

0

28

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

30

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

31

Honda 94305-50221

PIN, SPRING (5X22)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$4.49

$

Usually ships in 3-6 days

0

33

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0

34

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

35

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

36

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0

37

Honda 95701-10125-00

BOLT, FLANGE (10X125)

$4.49

$

Usually ships in 3-6 days

0

38

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

39

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
