HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) MUFFLER Parts Diagram

Powered Carrier, Made in Japan

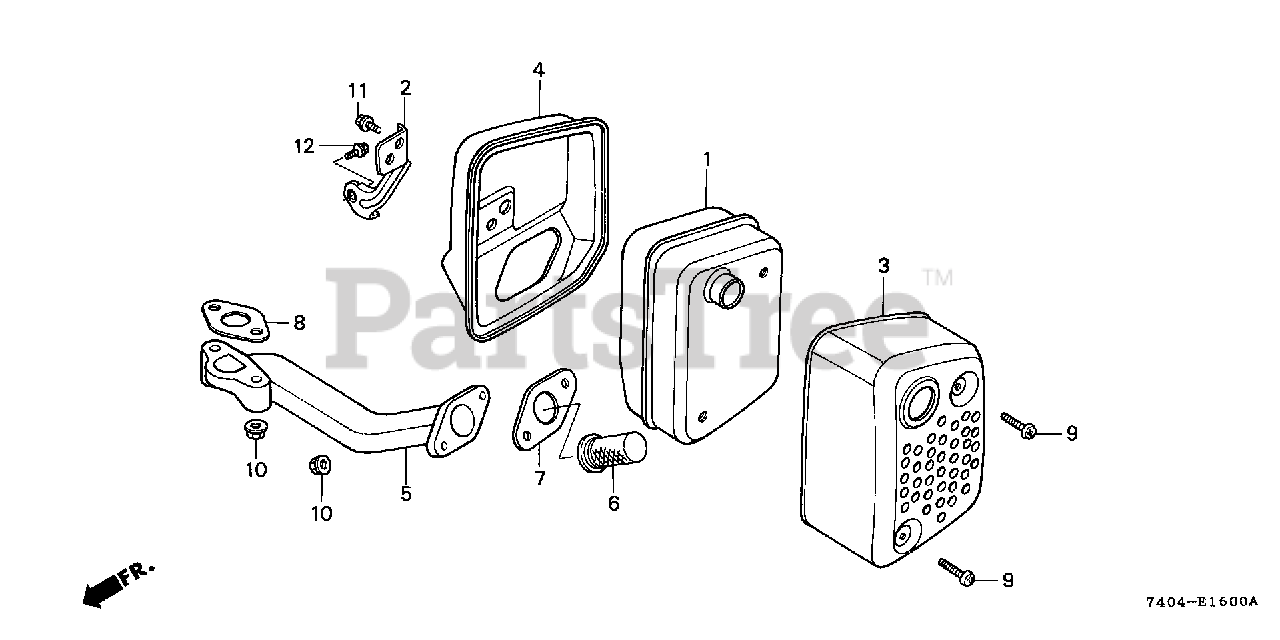

MUFFLER Parts Diagram

  • Title

$

$

Not available

2

Honda 18318-ZG1-750

STAY, MUFFLER

$

$

Not available

3

Honda 18320-ZG1-751

PROTECTOR A, MUFFLER

Note: Use up to Engine SN 2490143.

$

$

Not available

3

Honda 18320-ZG1-752

PROTECTOR A, MUFFLER

Note: Use from Engine SN 2490144.

$

$

Not available

4

Honda 18323-ZG1-H10

PROTECTOR B, MUFFLER

$

$

Not available

4

Honda 18323-ZG1-751

PROTECTOR B, MUFFLER

$

$

Not available

5

$

$

Not available

6

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

7

Honda 18382-ZG1-750

SEE PART DETAILS - SUP; GASKET B, MUFFLER

Note: Use up to Engine SN 2539493.

$

$

Not available

7

Honda 18382-ZG1-800

SEE PART DETAILS - PRI; GASKET B, MUFFLER

Note: Use from Engine SN 2539494.

$

$

Not available

8

Honda 18381-ZG0-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

9

Honda 93500-06006-0B

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
