HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) CARRIER Parts Diagram

Powered Carrier, Made in Japan

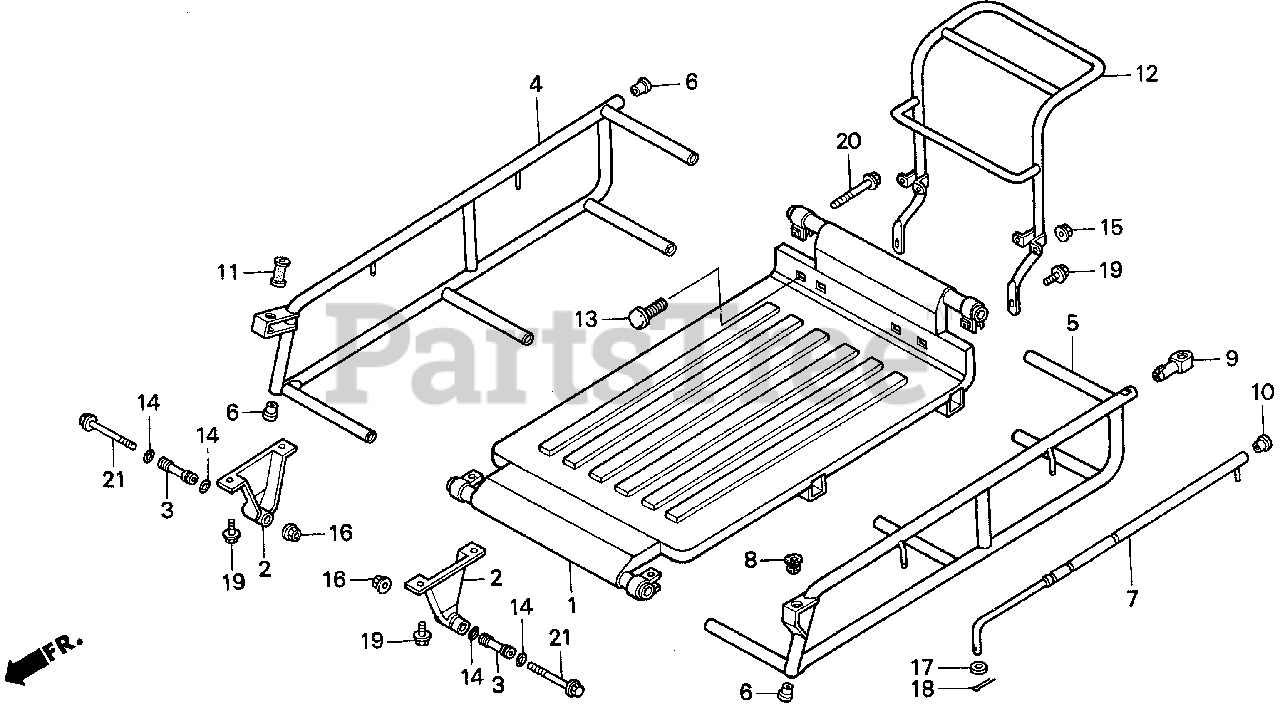

CARRIER Parts Diagram

  • Title
1

Honda 52110-740-000ZB

BODY, CARRIER *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

2

Honda 52120-740-000

BRACKET, CARRIER

$

$

Not available

3

Honda 52122-740-000

COLLAR, CARRIER BRACKET

$

$

Not available

4

Honda 52210-740-000

PIPE, R. GUIDE

$

$

Not available

5

Honda 52310-740-000

PIPE, L. GUIDE

$

$

Not available

6

Honda 52312-740-000ZA

CAP, L. GUIDE PIPE *NH1* (BLACK)

$

$

Not available

7

Honda 52410-740-000

BAR ASSY., FR.

$

$

Not available

8

Honda 52414-740-000ZA

COLLAR, FR. BAR *NH1* (BLACK)

$

$

Not available

9

Honda 52416-740-000

HOLDER, FR. BAR

$

$

Not available

10

Honda 52417-740-000

CAP, FR. BAR

$6.49

$

Usually ships in 3-6 days

0

11

Honda 52418-740-000

BUSH, CARRIER GUIDE

$

$

Not available

12

Honda 52610-740-000

PIPE, ENGINE GUARD

$

$

Not available

13

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

14

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 94050-12000

NUT, FLANGE (12MM)

$1.49

$

In Stock, only 3 left!

0

17

Honda 94102-12000

WASHER, FLAT (12MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94201-25220

PIN, COTTER (2.5X22)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-12070-00

BOLT, FLANGE (12X70)

$4.49

$

Usually ships in 3-6 days

0
