HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) CARBURETOR Parts Diagram

Powered Carrier, Made in Japan

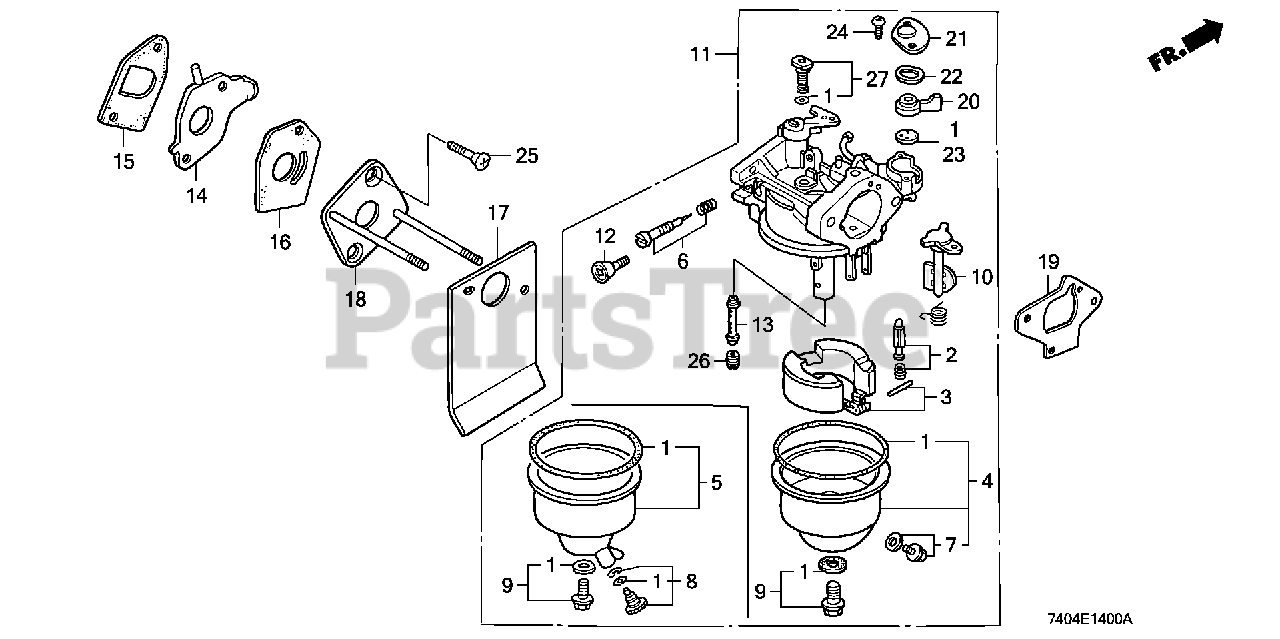

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG1-D20

GASKET SET

Note: Use from Engine SN BF18A E.

$18.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BF18A D.

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$30.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

Note: Use up to Engine SN BF18A D.

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16015-ZG1-D20

CHAMBER SET, FLOAT

Note: Use from Engine SN BF18A E.

$41.99

$

Usually ships in 3-6 days

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: Use up to Engine SN BF18A D.

$10.99

$

In Stock, only 3 left!

0

8

Honda 16024-ZH7-A20

SCREW SET, DRAIN

Note: Use from Engine SN BF18A E.

$11.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$15.99

$

Usually ships in 3-6 days

0

10

Honda 16044-ZG1-771

CHOKE SET

$

$

Not available

11

Honda 16100-ZG1-772

SEE PART DETAILS - SUP; CARBURETOR ASSY.
(Superseded to 16100-ZG1-775)

Note: Use up to Engine SN 2244887.

$

$

Not available

11

Honda 16100-ZG1-773

SEE PART DETAILS - SUP; CARBURETOR ASSY.
(Superseded to 16100-ZG1-775)

Note: Use up to Engine SN 2244887.

$

$

Not available

11

Honda 16100-ZG1-775

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Not available

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

13

Honda 16166-ZG1-771

NOZZLE, MAIN

$

$

Not available

14

Honda 16211-ZG0-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZG0-020)

Note: Use up to Engine SN 2158568.

$12.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZG0-020

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$12.99

$

Usually ships in 3-6 days

0

15

Honda 16212-ZG0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, Qty 10

0

16

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

17

Honda 16221-ZG1-J31

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$

$

Not available

18

Honda 16225-ZG1-750

PLATE, CARBURETOR JOINT

$

$

Not available

19

Honda 16269-ZG1-751

GASKET, AIR CLEANER

$

$

Not available

20

Honda 16953-ZG1-751

SEE PART DETAILS - SUP; LEVER, VALVE

$

$

Currently unavailable

21

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

22

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$4.49

$

Usually ships in 3-6 days

0

23

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

$4.49

$

In Stock, Qty 20+

0

24

Honda 93500-03008-0G

SCREW, PAN (3X8)

$

$

Not available

25

Honda 93600-05020-0H

SCREW, FLAT (3X6)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 99101-ZG0-0620

SEE PART DETAILS - PRI; JET, MAIN (#62)

$7.99

$

In Stock, Qty 6

0

26

Honda 99101-187-0580

JET, MAIN (#58)

$11.99

$

Usually ships in 3-6 days

0

26

Honda 99101-187-0600

JET, MAIN (#60)

$10.99

$

Usually ships in 3-6 days

0

27

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 1 left!

0
