HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) AIR CLEANER Parts Diagram

Powered Carrier, Made in Japan

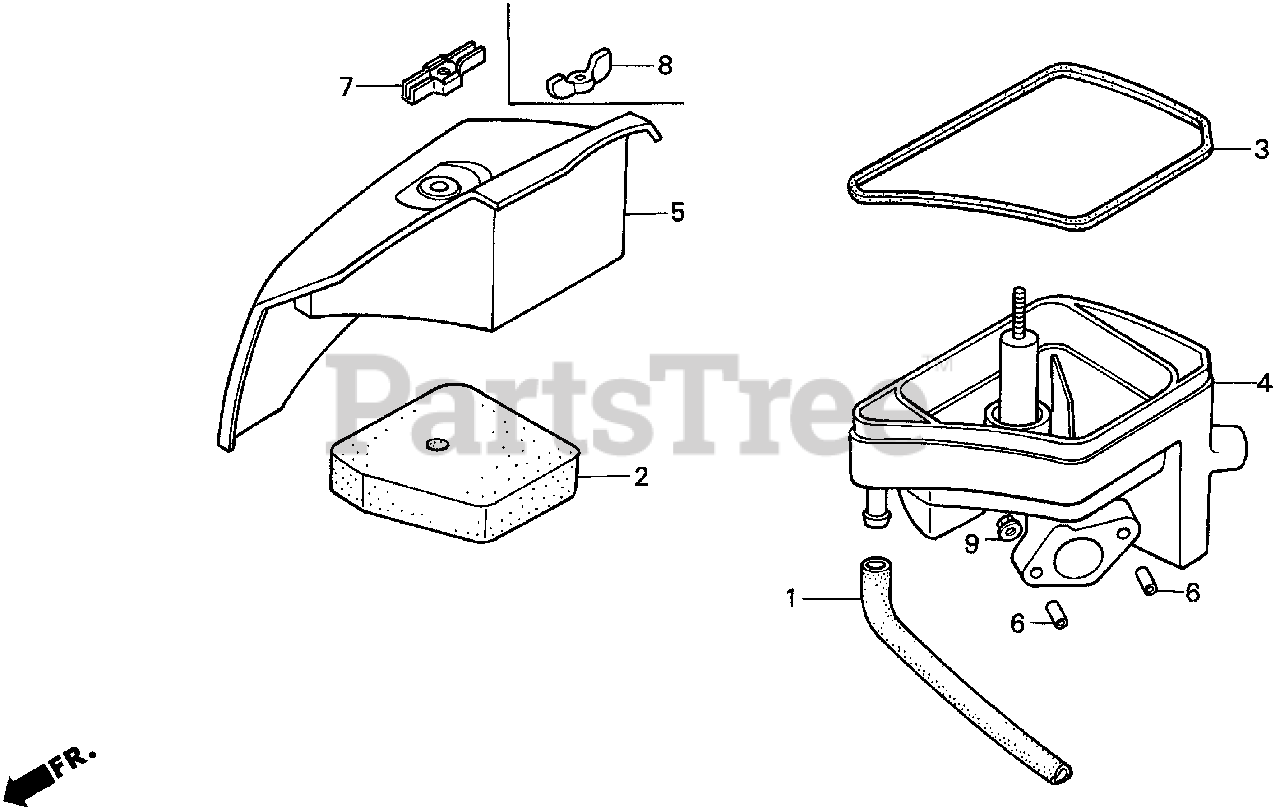

AIR CLEANER Parts Diagram

  • Title
1

Honda 15721-ZG1-700

TUBE, BREATHER

$

$

Not available

2

Honda 17211-ZG1-750

ELEMENT, AIR CLEANER

$

$

Not available

3

Honda 17219-ZG1-750

RUBBER, SEAL

$

$

Not available

4

Honda 17220-ZG1-771

HOUSING, AIR CLEANER

$

$

Not available

5

Honda 17231-ZG1-751ZA

SEE PART DETAILS - PRI; COVER, AIR CLEANER *R8* (BRIGHT RED)

$

$

Not available

6

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

Note: Use from Engine SN 2490114 to 2565893.

$10.99

$

In Stock, only 3 left!

0

7

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use up to Engine SN 2490113.

$4.49

$

In Stock, only 1 left!

0

8

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 2565894.

$5.49

$

In Stock, Qty 20+

0

9

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
