HP 3400 - Billy Goat 34" HomePro Finish Mower HANDLE Parts Diagram

34" HomePro Finish Mower

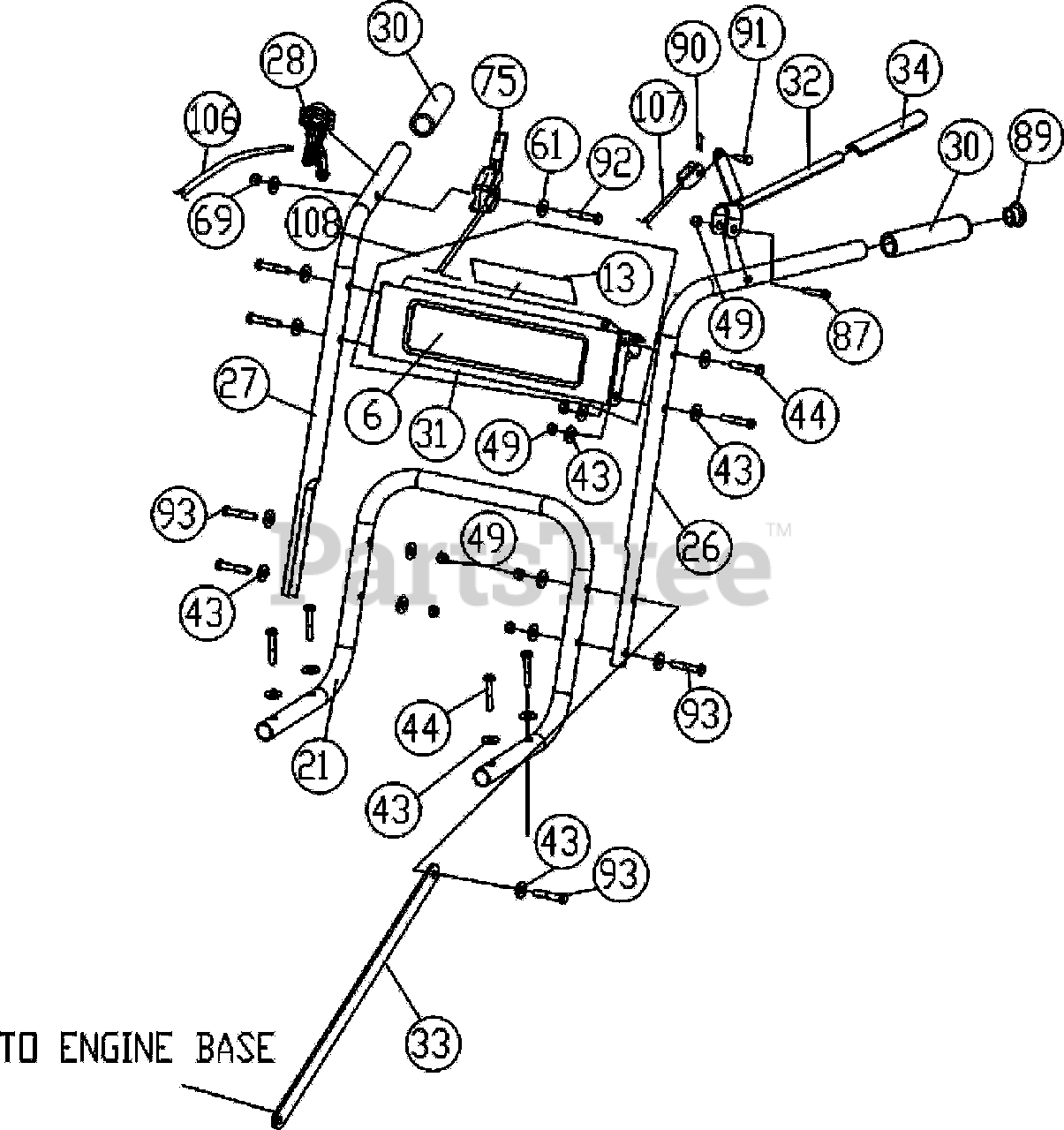

HANDLE Parts Diagram

  • Title

6

Billy Goat 521300

Label Logo HP

$6.99

$

Usually ships in 2-11 days

0

13

Billy Goat 521301

Label Instruction HP

$8.99

$

Usually ships in 2-11 days

0

21

Billy Goat 521214

Handle Lower HP

$36.99

$

Usually ships in 2-11 days

0

26

Billy Goat 521216

Handle Upper LH HP

$20.99

$

Usually ships in 2-11 days

0

27

Billy Goat 521215

Handle Upper RH HP

$20.99

$

Usually ships in 2-11 days

0

28

Billy Goat 521104

Lever Control Drive HP

$53.99

$

In Stock, only 1 left!

0

30

Billy Goat 500267

Grip Handle

$6.99

$

In Stock, only 2 left!

0

31

Billy Goat 521222

Console WA HP

$

$

Not available

32

Billy Goat 521136

Lever Blade HP

$

$

Not available

33

Billy Goat 521218

Brace Handle HP

$

$

Not available

34

Billy Goat 500379

Grip Lever Orange

$4.99

$

In Stock, only 1 left!

0

43

Billy Goat 8171003

Washer 5/16 Flat ZP

$0.99

$

In Stock, Qty 10

0

44

Billy Goat 8041031

Screwcap 5/16-18 x 1/4" HEX ZP

$0.99

$

In Stock, only 3 left!

0

49

Billy Goat 8160002

Nut Lock 5/16-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

61

Billy Goat 8172007

Washer 1/4" SAE

$0.99

$

In Stock, Qty 7

0

69

Billy Goat 8160001

Nut Lock 1/4 - 20 HEX ZP

$0.99

$

In Stock, Qty 8

0

75

Billy Goat 840144

Cable Control Throttle
(Superseded to 840234)

$129.99

$

Usually ships in 2-11 days

0

87

Billy Goat 360284

Bolt Shoulder 3/8" x 1 1/4"

$3.99

$

In Stock, only 2 left!

0

89

Billy Goat 890132

Plug Tube Insert 1" OD

$

$

Not available

90

Billy Goat 440193

Pin Clip Hitch .051 x 3/4"

$0.99

$

In Stock, only 3 left!

0

91

Billy Goat 440124

Clevis Pin 0.25 x 0.50"

$1.49

$

In Stock, only 4 left!

0

92

Billy Goat 8041011

Screwcap 1/4-20 x 2 1/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

93

Billy Goat 8041032

Screwcap 5/16-18 x 2" HCS ZP

$0.99

$

In Stock, Qty 6

0

106

Billy Goat 521124

Cable Clutch Wheel HP
(Superseded to 521124-S)

$65.99

$

Usually ships in 2-11 days

0

107

Billy Goat 521114

Cable Clutch Blade HP

$48.99

$

In Stock, only 1 left!

0

108

Billy Goat 521402

Console WA HP w/labels

$

$

Not available
