HP 3400 - Billy Goat 34" HomePro Finish Mower DECK Parts Diagram

34" HomePro Finish Mower

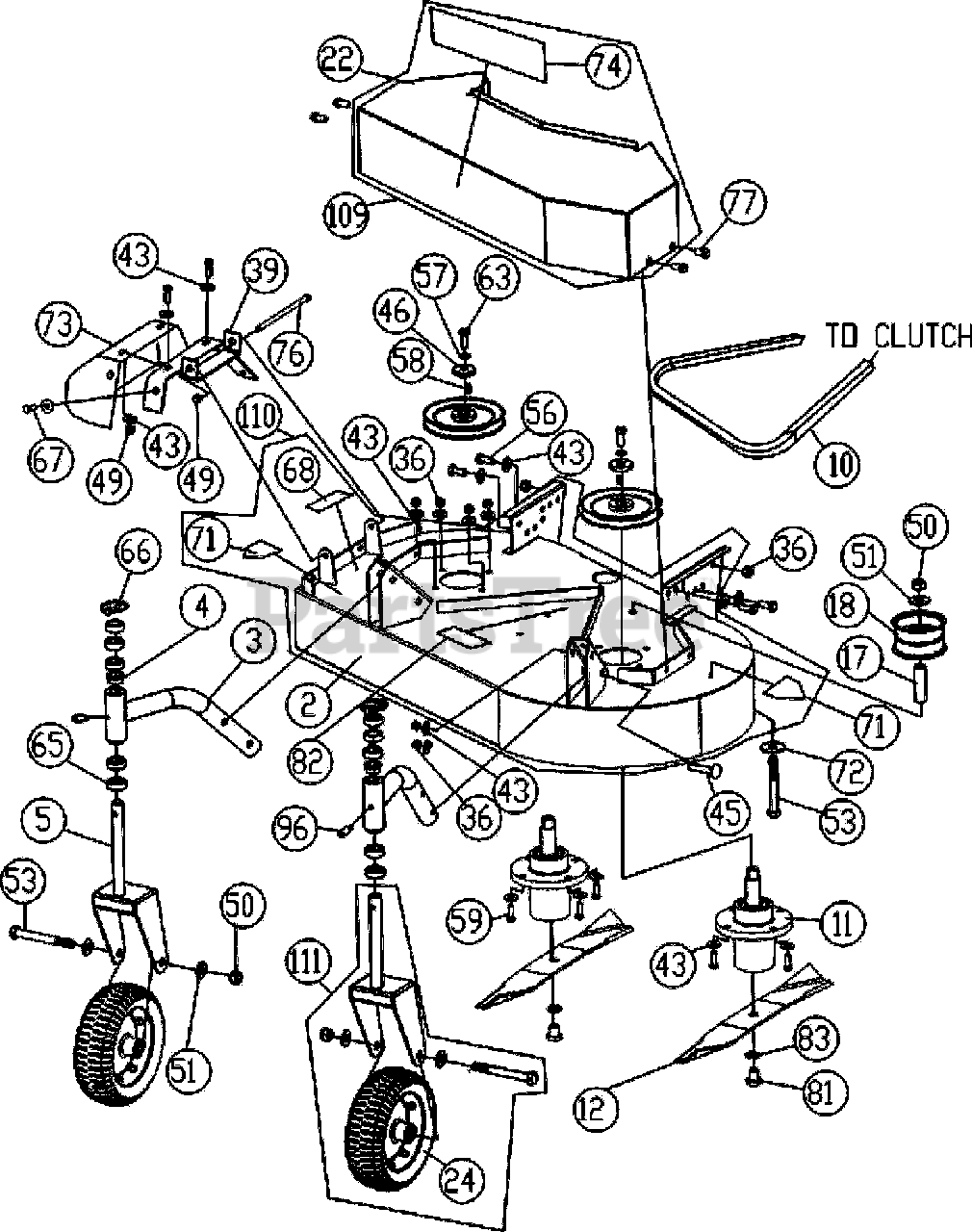

DECK Parts Diagram

  • Title

2

Billy Goat 521209

Deck WA HP

$

$

Not available

3

Billy Goat 521210

Caster Arm WA HP

$90.99

$

Usually ships in 2-11 days

0

4

Billy Goat 520184

Bushing Flange 1" OD 3/4" ID

$8.99

$

In Stock, only 1 left!

0

5

Billy Goat 521211

Caster Bracket WA HP

$93.99

$

Usually ships in 2-11 days

0

10

Billy Goat 521112

Belt 5l x 60

$59.99

$

Usually ships in 2-11 days

0

11

Billy Goat 521101

Spindle Assy w/Pulley

$165.99

$

Usually ships in 2-11 days

0

12

Billy Goat 521109

Blade 17.25"

$25.99

$

In Stock, only 1 left!

0

17

Billy Goat 521225

Spacer Fixed Idler

$7.99

$

Usually ships in 2-11 days

0

18

Billy Goat 521113

Pulley Idler

$74.99

$

Usually ships in 2-11 days

0

22

Billy Goat 521108

Guard Belt HP
(Superseded to 521403)

$195.99

$

Usually ships in 2-11 days

0

24

Billy Goat 441123

Wheel 8" od x 0.5" Bearing

$74.99

$

Usually ships in 2-11 days

0

36

Billy Goat 8160003

Nut Lock 3/8" - 16

$0.99

$

In Stock, Qty 6

0

39

Billy Goat 521111

Bracket Mount Deflector

$40.99

$

Usually ships in 2-11 days

0

43

Billy Goat 8171003

Washer 5/16 Flat ZP

$0.99

$

In Stock, Qty 10

0

45

Billy Goat 8024062

Bolt Carriage 3/8-16 x 2"

$1.49

$

Usually ships in 2-11 days

0

46

Billy Goat 440153

Washer 1.5 OD x .453 ID x .25 THK

$2.99

$

Usually ships in 2-11 days

0

49

Billy Goat 8160002

Nut Lock 5/16-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

50

Billy Goat 8160005

Nut Lock 1/2 - 13 HEX ZP

$0.99

$

In Stock, only 1 left!

0

51

Billy Goat 8172011

Washer 1/2" SAE ZP

$0.99

$

In Stock, Qty 5

0

53

Billy Goat 8041107

Screwcap 1/2"-13 x 4 1/2" HCS ZP

$3.49

$

Usually ships in 2-11 days

0

56

Billy Goat 8041050

Screwcap 3/8"-16 x 1" HCS ZP

$0.99

$

In Stock, Qty 5

0

57

Billy Goat 8177012

Washer Lock 3/8" S/T Med

$0.99

$

In Stock, Qty 9

0

58

Billy Goat 9201072

Key 3/16" sq x 5/8"

$2.99

$

In Stock, only 2 left!

0

59

Billy Goat 8041052

Screwcap 3/8" - 16 x 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

63

Billy Goat 900154

Screwcap 3/8"-24 x 1" HCS Gr. 8

$2.49

$

Usually ships in 2-11 days

0

64

Billy Goat 8181007

Washer Lock 1/4" External Tooth

$0.99

$

Usually ships in 2-11 days

0

65

Billy Goat 520034

Bushing Caster Yoke Spacer

$5.49

$

Usually ships in 2-11 days

0

66

Billy Goat 520004

Lynch Pin 3/16" x 1 9/16"

$2.49

$

In Stock, only 2 left!

0

67

Billy Goat 8041028

Screwcap 5/16-18 x 1" HEX ZP

$0.99

$

In Stock, Qty 7

0

68

Billy Goat 810736

Label Danger Flying Debris

$3.99

$

In Stock, only 2 left!

0

71

Billy Goat 400424

Label Warning Rotating Blades

$3.99

$

In Stock, only 1 left!

0

72

Billy Goat 850443-P

Impeller Washer Plated

$0.99

$

Usually ships in 2-11 days

0

73

Billy Goat 521110

Deflector Rubber

$43.99

$

Usually ships in 2-11 days

0

74

Billy Goat 521307

Label Badge Logo HP

$8.99

$

Usually ships in 2-11 days

0

76

Billy Goat 8042034

Screwcap 5/16-18 x 6 1/2" HCS ZP

$3.99

$

In Stock, only 1 left!

0

77

Billy Goat 8123128

Screw self tap 5/16" x 3/4" HEX

$1.49

$

In Stock, only 1 left!

0

81

Billy Goat 8042031

Screwcap 5/8"-18 x 1" HCS GR. 8

$3.49

$

Usually ships in 2-11 days

0

82

Billy Goat 900327

Label Warning Guards

$3.99

$

In Stock, only 3 left!

0

83

Billy Goat 8171010

Washer Lock 5/8" S/T Med

$0.99

$

Usually ships in 2-11 days

0

96

Billy Goat 610363

Zerk Grease Fitting

$0.99

$

Usually ships in 2-11 days

0

109

Billy Goat 521403

Guard belt hp WA w/labels

$195.99

$

Usually ships in 2-11 days

0

110

Billy Goat 521404

Deck WA HP w/labels

$

$

Not available

111

Billy Goat 521405

Caster Assy HP kit

$206.99

$

In Stock, only 1 left!

0
