HP 30 SB - Weed Eater String Trimmer Carburetor Assembly (WA207/207A) P/N 530035262 Parts Diagram

String Trimmer

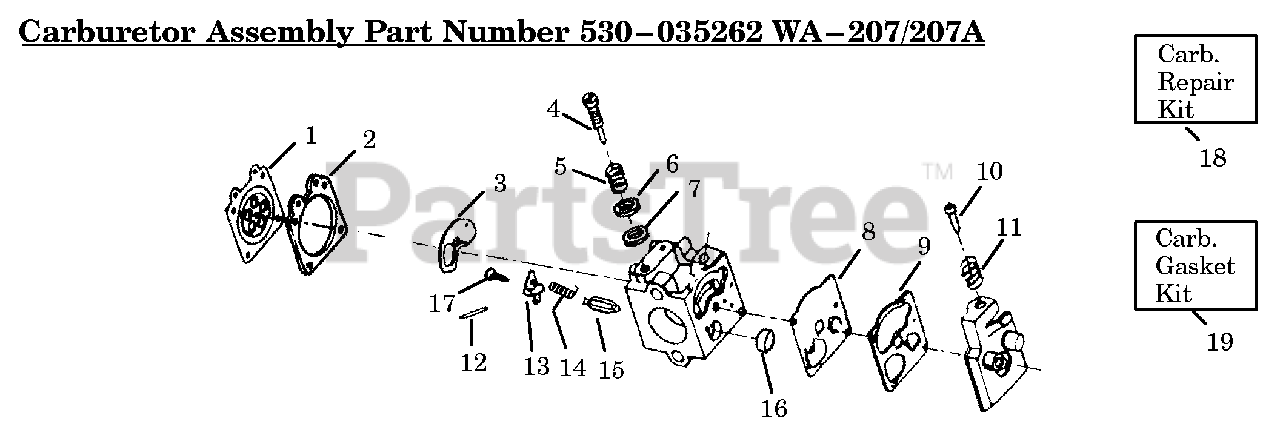

Carburetor Assembly (WA207/207A) P/N 530035262 Parts Diagram

  • Title
1

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$51.99

$

In Stock, Qty 10

0

2

Poulan 530035151

Metering Diaphragm Gasket

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$3.99

$

In Stock, Qty 8

0

3

Poulan 530035211

Circuit Plate Gasket

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$

$

Not available

4

Poulan 530035212

Mixture Needle

$

$

Not available

5

Poulan 530035214

Mixture Needle Spring
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530035217

Mixture Needle Washer

$

$

Not available

7

Poulan 530035218

"O" Ring Mixture

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$

$

Not available

8

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$31.99

$

In Stock, Qty 6

0

9

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

Note: Included in Carb. Kwik Repair Kit & Carb. Gasket/Diaphragm Kit

$11.99

$

In Stock, only 3 left!

0

10

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

12

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: Included in Carb. Kwik Repair Kit

$7.99

$

In Stock, only 3 left!

0

13

Poulan 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in Carb. Kwik Repair Kit

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 530035188

Metering Lever Spring

Note: Included in Carb. Kwik Repair Kit

$4.99

$

In Stock, Qty 10

0

15

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

Note: Included in Carb. Kwik Repair Kit

$22.99

$

In Stock, Qty 8

0

16

Poulan 530035178

Fuel Inlet Screen

Note: Included in Carb. Kwik Repair Kit

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

18

Poulan 530035264

Carb. Kwik Repair Kit

$

$

Not available

19

Poulan 530035219

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

$20.99

$

In Stock, Qty 5

0

530035262

Poulan 530035262

Carburetor Assembly (WA207/207A)

$

$

Not available
