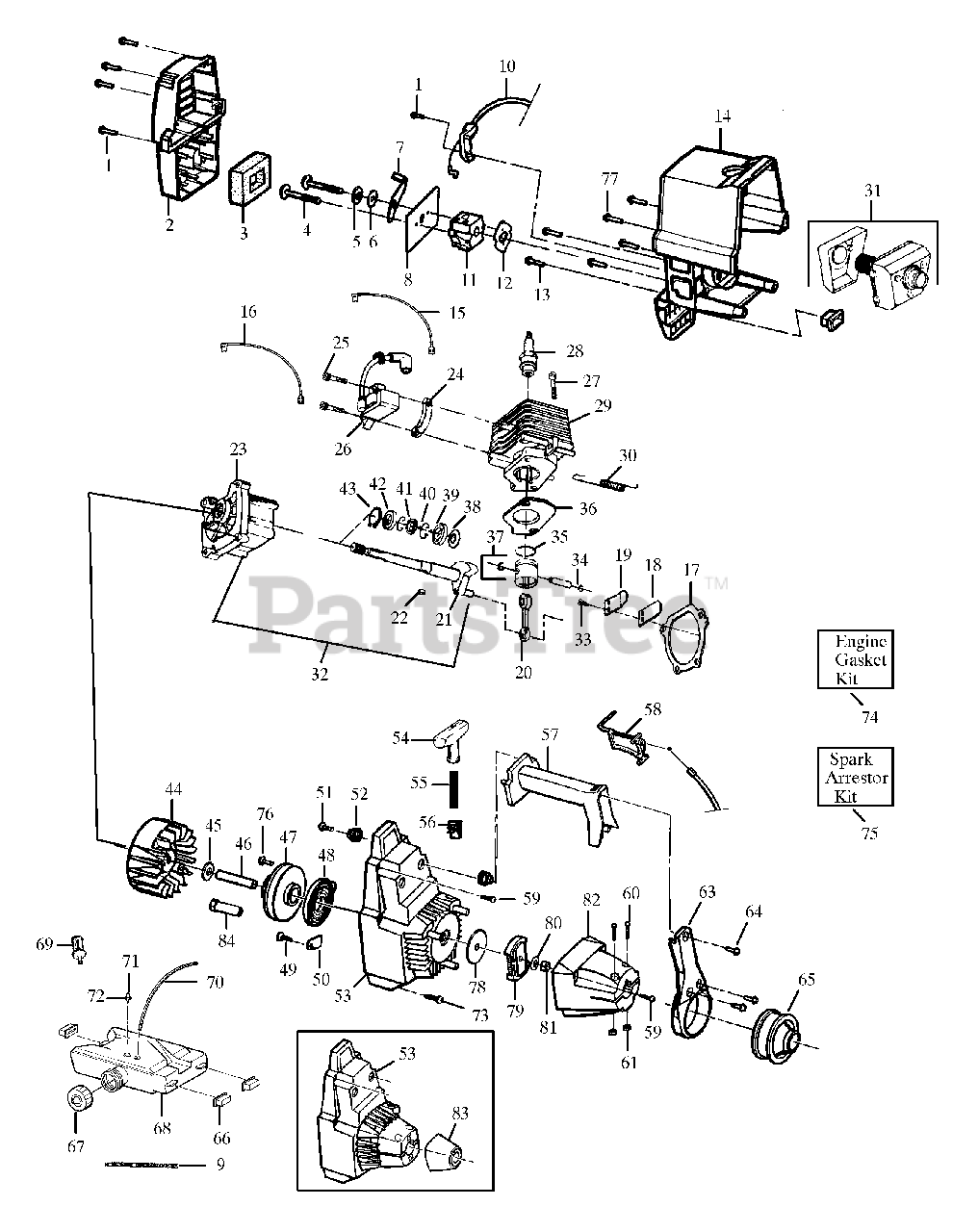

HP 22 T - Weed Eater String Trimmer Engine Block & Shroud Parts Diagram

String Trimmer

Engine Block & Shroud Parts Diagram

  • Title

1

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530036380

Muffler/Air Box Cover

$8.99

$

Usually ships in 3-10 days

0

3

Poulan 530036429

Air Filter Foam

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530027526

Choke Shutter

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 530036384

Air Filter Plate

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530024677

Spring

$

$

Not available

10

Poulan 530036386

Throttle Cable Ass'y.

$

$

Not available

11

Poulan 530035262

Carburetor Models HP22, HP28, HP30T

$

$

Not available

11

Poulan 530035259

Carburetor Models HP22T, HP30SB
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Poulan 530019164

Carburetor Gasket

Note: Included in Engine Gasket Kit

$7.49

$

In Stock, only 2 left!

0

13

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

14

Poulan 530036379

Shroud

$

$

Not available

15

Poulan 530014663

Lead Wire Ass'y

$9.99

$

Usually ships in 3-10 days

0

16

Poulan 530014662

Ground Wire Ass'y

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 530019154

Crankcase/Shroud Gasket

Note: Included in Engine Gasket Kit

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed Models HP22, HP22T

$6.49

$

In Stock, only 2 left!

0

18

Poulan 530036233

Reed Models HP28, HP30T, HP30SB

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530014005

Connecting Rod Ass'y. Models HP22, HP22T

Note: (Incl. Bearings)

$

$

Not available

20

Poulan 530010960

Connecting Rod Ass'y. Models HP28, HP30T, HP30SB

Note: (Incl. Bearings)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010945

Crankshaft Ass'y. Models HP22, HP28, HP30T

$43.99

$

Usually ships in 3-10 days

0

21

Poulan 530010934

Crankshaft Ass'y. Models HP22T, HP30SB

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530014016

Crankcase Ass'y.

Note: (Incl. 39-42)

$

$

Not available

24

Poulan 530027525

Spacer (Models HP22 & HP22T Only)

$0.99

$

In Stock, only 1 left!

0

25

Poulan 530015776

Screw Models HP22, HP22T

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530015128

Screw Models HP28, HP30T, HP30SB
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530039134

Ignition Module

$

$

Not available

27

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530030077

Spark Plug

$

$

Not available

29

Poulan 530012244

Cylinder Models HP22, HP22T
(Superseded to 530069627)

$

$

Not available

29

Poulan 530012235

Cylinder Models HP28, HP30T, HP30SB

$

$

Not available

30

Poulan 530036409

Muffler Attachment Spring

$

$

Not available

31

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

32

Poulan 530014004

Crankcase & Crankshaft Ass'y Models HP22, HP28, HP30T

Note: (Incl. 21, 23, 38 & 43)

$

$

Not available

32

Poulan 530014015

Crankcase & Crankshaft Ass'y Models HP22T, HP30SB
(Superseded to 530071705)

Note: (Incl. 21, 23, 38 & 43)

$37.99

$

Usually ships in 3-10 days

0

33

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530026413

Piston Ring Models HP22, HP22T

$

$

Not available

35

Poulan 530025875

Piston Ring Models HP28, HP30T, HP30SB

$

$

Not available

36

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

Note: Included in Engine Gasket Kit

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530069274

Piston Kit Models HP22, HP22T

Note: (Incl. #34,35 & pin)

$

$

Not available

37

Poulan 530069275

Piston Kit Models HP28, HP30T, HP30SB
(Superseded to 530069899)

Note: (Incl. #34,35 & pin)

$

$

Not available

38

Poulan 530015788

Spacer

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530039111

Flywheel Ass'y. Models HP22, HP28, HP30T
(Superseded to 530047198)

$

$

Not available

44

Poulan 530039136

Flywheel Ass'y. Models HP22T, HP30SB
(Superseded to 530039189)

$

$

Not available

45

Poulan 530015828

Washer Models HP22, HP28, HP30T

$4.99

$

Usually ships in 3-10 days

0

45

Poulan 530016030

Washer Models HP22T, HP30SB

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530027511

Flywheel Spacer-Model HP22T, HP30SB Only

$8.99

$

Usually ships in 3-10 days

0

47

Poulan 530069291

Starter Pulley Kit
(Superseded to 530071387)

$

$

Not available

48

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

49

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

51

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 530037105

Handle Isolator

$1.49

$

Usually ships in 3-10 days

0

53

Poulan 530014793

Fan Housing Models HP22, HP28, HP30T

$

$

Not available

53

Poulan 530014794

Fan Housing Models HP22T, HP30SB

$17.99

$

Usually ships in 3-10 days

0

54

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

56

Poulan 530029239

Rocker Switch
(Superseded to 530069572)

$9.49

$

In Stock, only 3 left!

0

57

Poulan 530036385

Handle

$

$

Not available

58

Poulan 530036428

Trigger

$8.99

$

Usually ships in 3-10 days

0

59

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

60

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

61

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

63

Poulan 530036174

Handle Cover

$38.99

$

Usually ships in 3-10 days

0

64

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

65

Poulan 530037115

Isolator AV

$

$

Not available

66

Poulan 530029760

Fuel Tank Isolator

$0.99

$

Usually ships in 3-10 days

0

67

Poulan 530014777

Fuel Cap Ass'y.

$

$

Not available

68

Poulan 530014479

Fuel Tank Ass'y. Non-primer units

$

$

Not available

68

Poulan 530047128

Fuel Tank Ass'y. Units with primer bulb

Note: Part Change

$

$

Not available

69

Poulan 530014815

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

70

Poulan 530069247

Fuel Line Kit

$7.99

$

In Stock, Qty 20+

0

71

Poulan 530026119

Check Valve

$5.99

$

In Stock, only 4 left!

0

72

Poulan 530029696

Retainer

$

$

Not available

73

Poulan 530015935

Screw

$0.99

$

Usually ships in 3-10 days

0

74

Poulan 530069325

Engine Gasket Kit
(Superseded to 530069302)

$4.99

$

Usually ships in 3-10 days

0

75

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

76

Poulan 530015823

Screw
(Superseded to 530016080)

$6.49

$

Usually ships in 3-10 days

0

77

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

78

Poulan 530094189

Clutch Washer-Models HP22T, HP30SB

$6.99

$

In Stock, only 1 left!

0

79

Poulan 530069254

Clutch Ass'y. Kit Models HP22T, HP30SB

$

$

Not available

80

Poulan 530015796

Washer Models HP22T, HP30SB

$3.99

$

Usually ships in 3-10 days

0

81

Poulan 530001733

Nut Models HP22T, HP30SB

$

$

Not available

82

Poulan 530014795

Clutch Housing Models HP22T, HP30SB

$35.99

$

Usually ships in 3-10 days

0

83

Poulan 530036989

Shaft Spacer-Model HP28 & HP30T Only

$2.49

$

Usually ships in 3-10 days

0

84

Poulan 530027953

Drive Coupling-Models HP22, HP28 & HP30T Only

$

$

Not available
