Horse-OPC - Troy-Bilt Rear-Tine Tiller, 7 & 8hp (SN: 00940750 & Above) TINE ASSEMBLIES Parts Diagram

Rear-Tine Tiller, 7 & 8hp

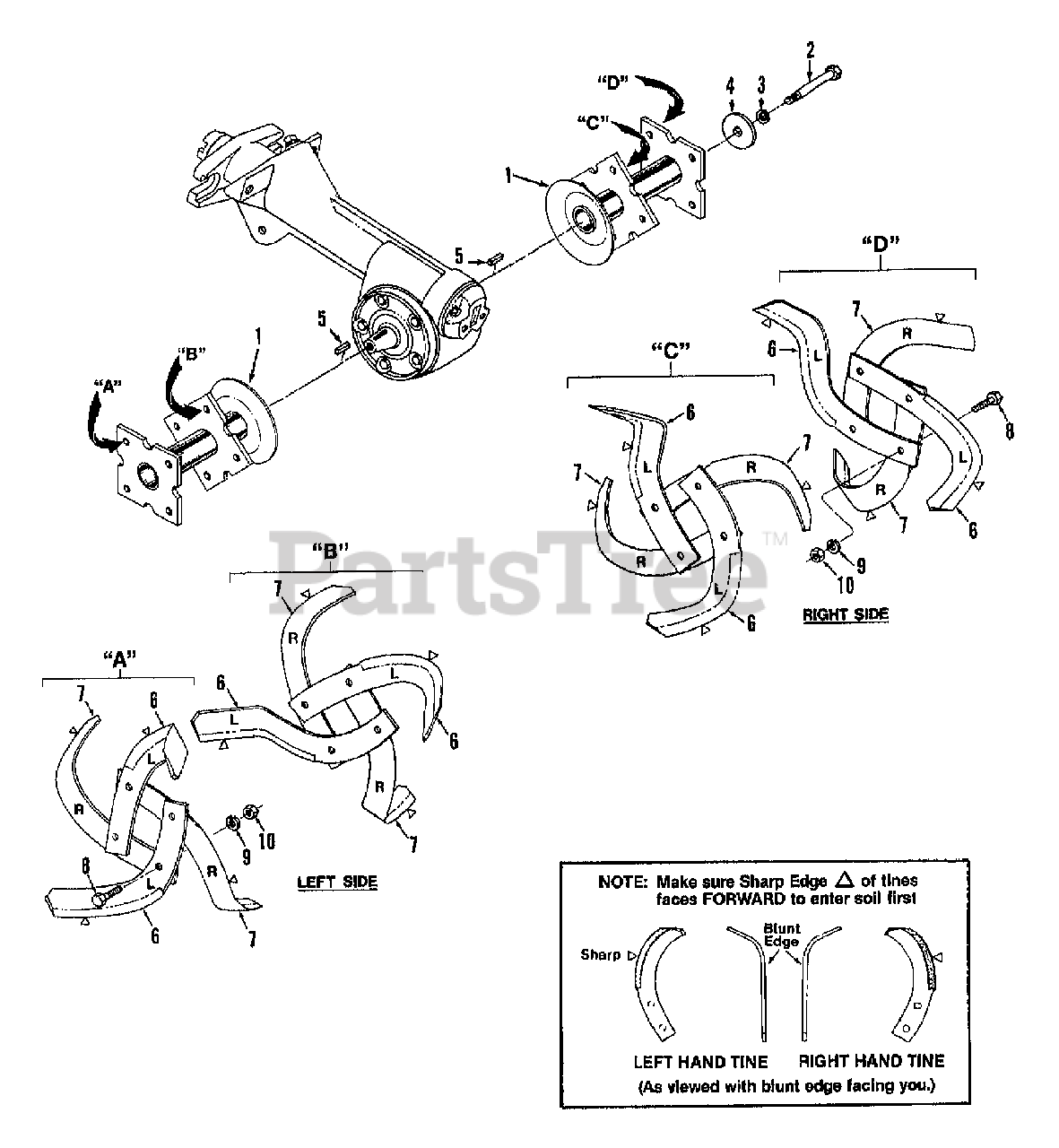

TINE ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt GW-1900871010

HOLDER-TINE RED

$

$

Currently unavailable

2

MTD GW-9669

SCR-HH 1/2-20X4.75 GR5

$

$

Not available

3

Troy-Bilt GW-9914

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

4

Troy-Bilt GW-9952

WASHER-1.5X.531X.187

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9301

KEY-.188 SQX1.0

$3.99

$

In Stock, only 3 left!

0

6

Troy-Bilt GW-1270-1A

TINE-BOLO LT W/HDW
(Superseded to 742-04119-0637)

$

$

Not available

7

Troy-Bilt GW-1270-2A

TINE-BOLO RT W/HDW
(Superseded to 742-04118-0637)

$

$

Not available

8

Troy-Bilt GW-9711

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

MTD GW-1901118

TINES-BOLO HORSE/PONY/ECONO

$

$

Not available

Troy-Bilt GW-1245K

TINES-BOLO HORSE/PONY/ECONO
(Superseded to 1901118A)

$

$

Not available

MTD GW-10355

KIT-TINE HOLDER W/HDW

$

$

Not available

Troy-Bilt GW-10802

TINES-CUSTOM TILLING

$

$

Not available

Troy-Bilt GW-2475-1

TINE-HARD FACED LT
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-2475-2

TINE-HARD FACED RT
(Superseded to GW-2475-2001)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt GW-9807

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0
