Horse-OPC - Troy-Bilt Rear-Tine Tiller, 7 & 8hp (SN: 00940750 & Above) ELECTRIC START SYSTEM (5 PRONG) Parts Diagram

Rear-Tine Tiller, 7 & 8hp

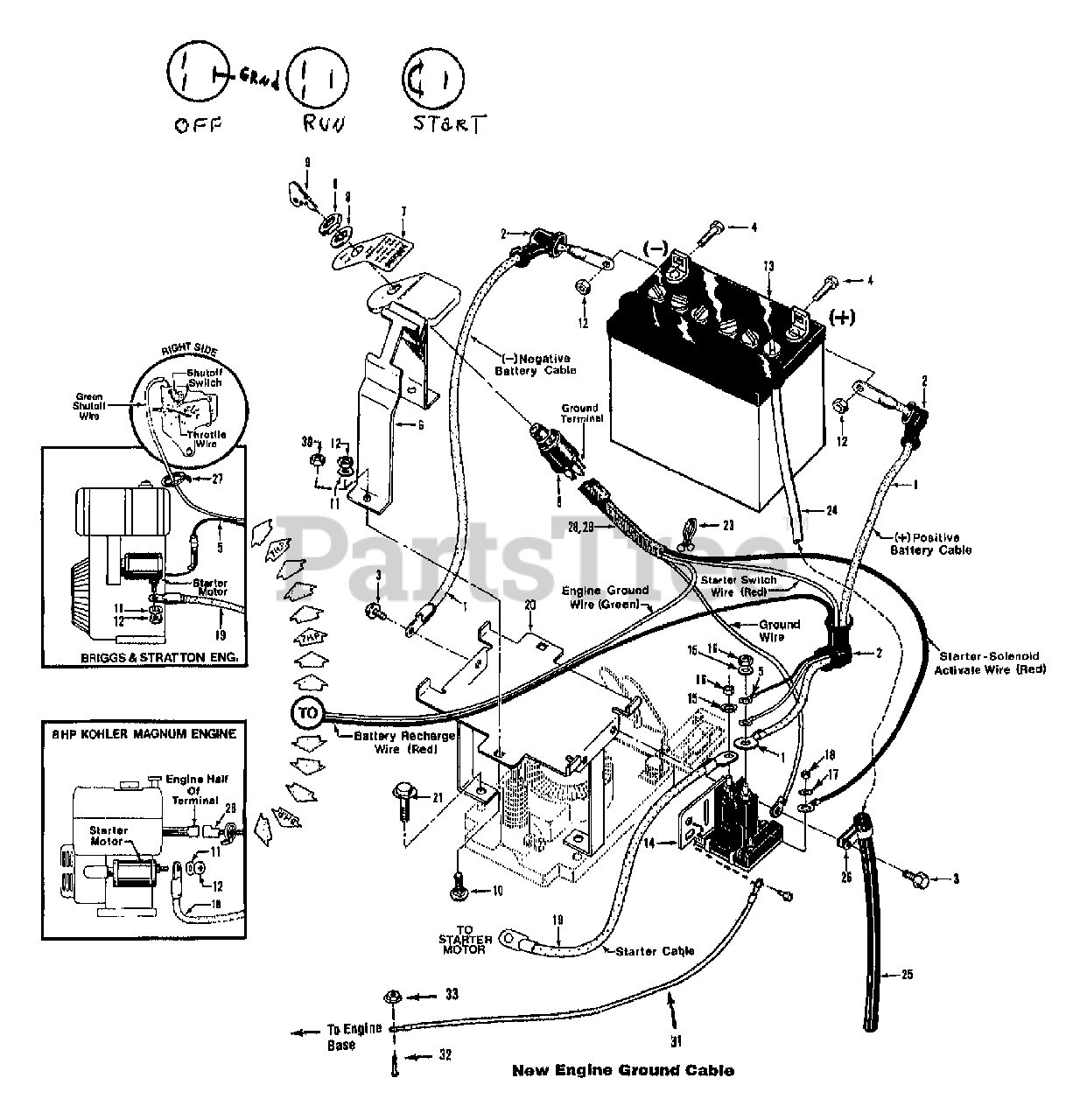

ELECTRIC START SYSTEM (5 PRONG) Parts Diagram

  • Title

1

Troy-Bilt GW-96515

CABLE-BATTERY 10"

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt GW-97020

BOOT-BATTERY CABLE

$

$

Not available

3

Troy-Bilt GW-9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-9780

SCR-HH 1/4-20X.625
(Superseded to 1186309)

$

$

Not available

5

Troy-Bilt GW-1554

WIRE-RECHARGE 5&7 BRIGGS (INCL. TERMINAL & EYELET)
(Superseded to 1901894)

$

$

Not available

6

Troy-Bilt GW-2616

CLAMP-KEYSWITCH W/DECAL OPC
(Superseded to 1900873)

$162.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-1900944

DECAL-KEYSWITCH TILLER
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1908112

ASSM-KEYSWITCH ELEC TLR
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

9

Troy-Bilt GW-96520

KEYS-IGN T/BLAZER 1 PAIR
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

10

Troy-Bilt GW-9566

SCR-CARR 1/4-20X1.25
(Superseded to 1186073)

$2.99

$

In Stock, only 2 left!

0

11

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

13

Troy-Bilt GW-9092B

BATTERY-12 VOLT HORSE (INCL. #9009 VENT TUBE)
(Superseded to 925-1707D)

$

$

Not available

14

Troy-Bilt GW-96514

SOLENOID (INCL. NUTS & WASHERS FOR CABLES & WIRES)
(Superseded to GW-96514099)

$48.99

$

In Stock, only 1 left!

0

15

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

17

Troy-Bilt GW-9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt GW-96510

CABLE-BATTERY 12"

$11.99

$

In Stock, only 1 left!

0

20

Troy-Bilt GW-2571

BRKT-BATTERY OPC PNT

$129.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt GW-90047

SCR-HFLK 3/8-16X1.50
(Superseded to 1186349)

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt GW-9265

TIE-TWIST LOCK

$

$

Not available

24

MTD GW-9009

TUBE-VENT BATTERY/HSE

$

$

Not available

25

MTD GW-1475

TUBING-RUBBER

$

$

Not available

26

MTD GW-9224

CLAMP

$

$

Not available

27

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

28

MTD GW-1908118

KIT-WIRE HARNESS ASSM

$

$

Not available

29

MTD GW-1908117

ASSM-WIRE HARNESS

$

$

Not available

30

Troy-Bilt GW-9844

NUT-HF/LK 1/4-20 ZP
(Superseded to 1186389)

$3.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt GW-1901202

CABLE-BATTERY 15"
(Superseded to 1901202)

$34.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt GW-90045

SCR-HFLK 5/16-18X1.00 ZP (FOR KOHLER ENGINE ONLY)
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

33

Troy-Bilt GW-9848

NUT-HFLK 5/16-18 ZP (FOR KOHLER ENGINE ONLY)
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0
