Horse-OPC - Troy-Bilt Rear-Tine Tiller, 7 & 8hp (SN: 00864077 - 00923346) FORWARD INTERLOCK SYSTEM Parts Diagram

Rear-Tine Tiller, 7 & 8hp

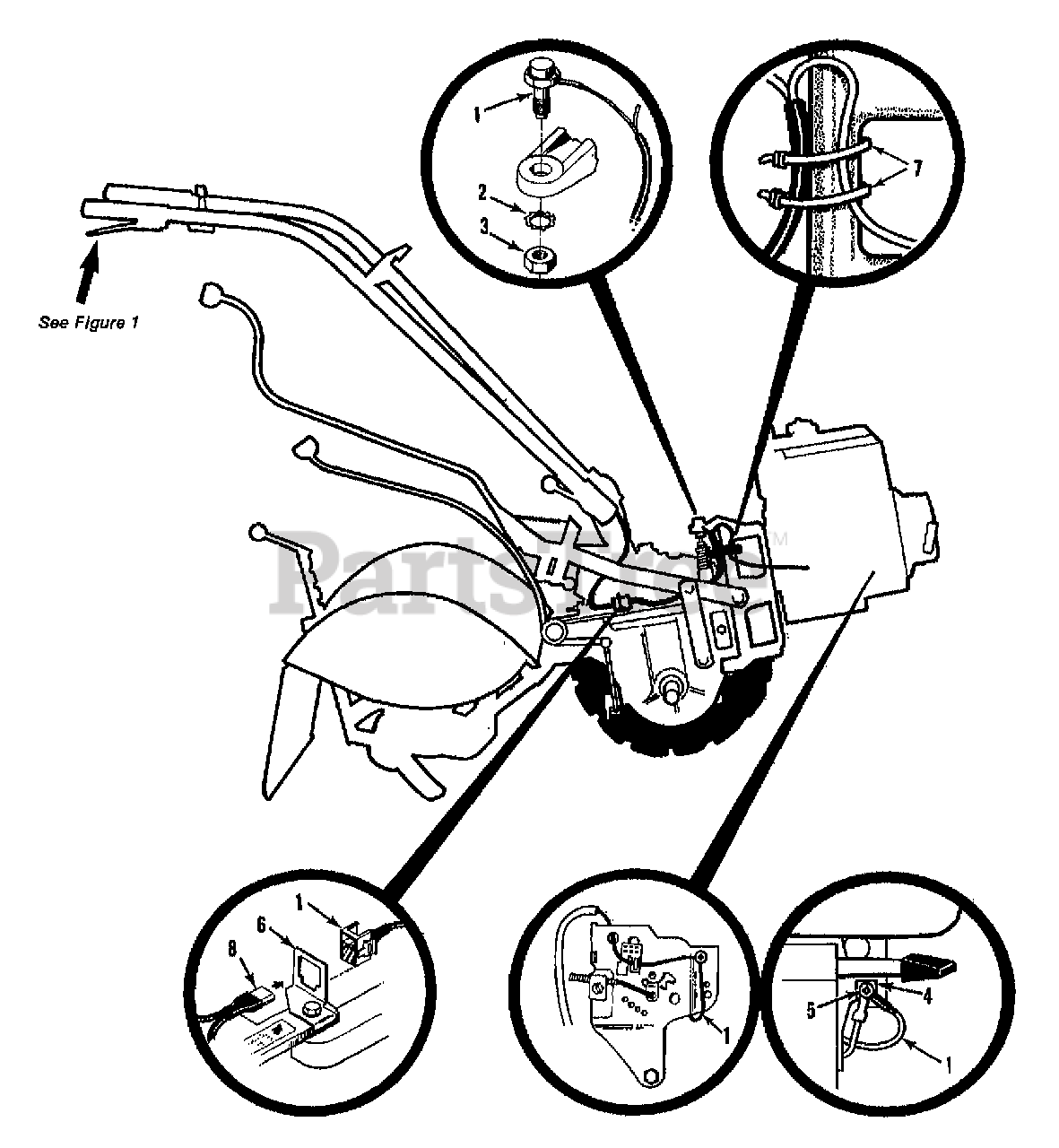

FORWARD INTERLOCK SYSTEM Parts Diagram

  • Title
1

MTD GW-2552

HARNESS-WIRE ENG OPC (PARTS NOT AVAILABLE SEPERATELY)

$

$

Not available

2

Troy-Bilt GW-9971

WASHER-LK .438 EXT TOOTH

$

$

Not available

3

Troy-Bilt GW-9851

NUT-HEX/JAM 7/16-20
(Superseded to 1186246)

$

$

Not available

4

NLA

GROMMET-7 T/L & 8 KOH OPC

$

$

Not available

5

NLA

SCR #8-18 SELF TAP

$

$

Not available

6

MTD GW-9205

CLIP-CONNECTOR

$

$

Not available

7

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt GW-2551

HARNESS-WIRE OPC HORSE

$

$

Not available
