Horse III - Troy-Bilt Rear-Tine Tiller, 7hp (SN: 640000 - 855638) Handlebar Assembly Parts Diagram

Rear-Tine Tiller, 7hp

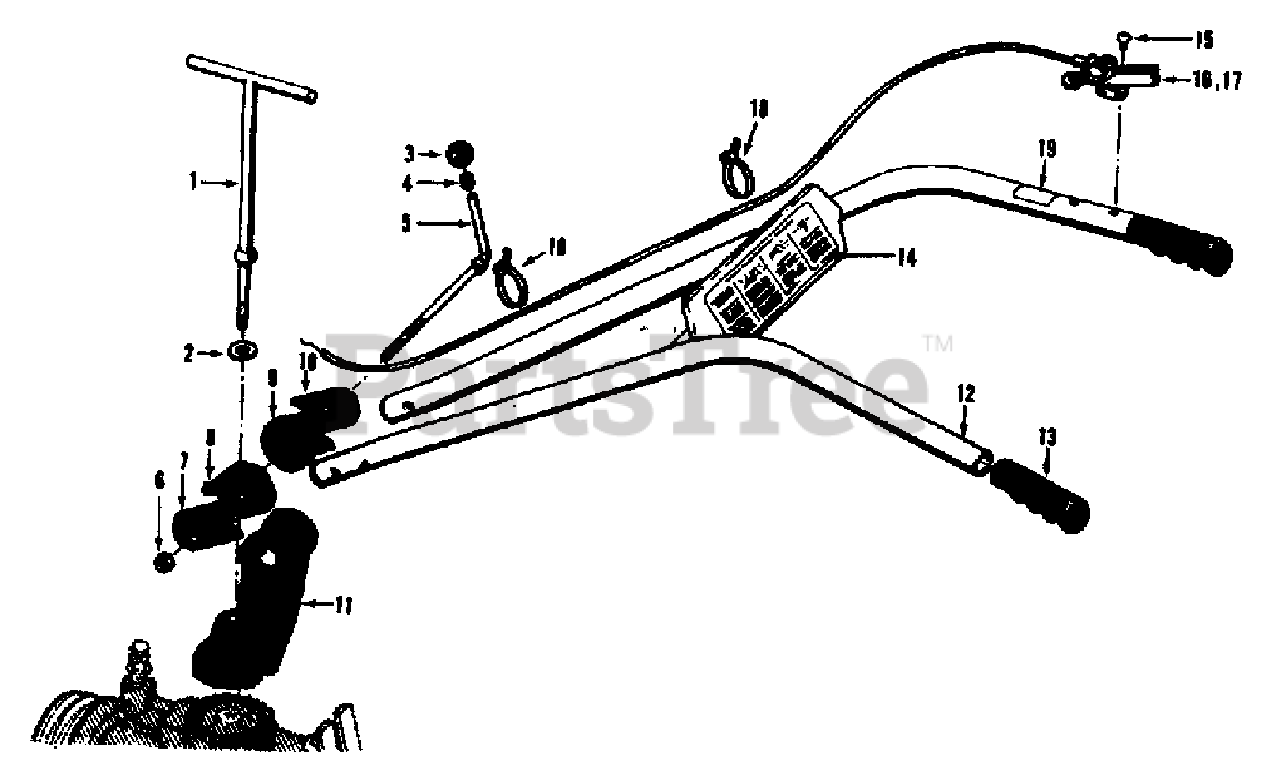

Handlebar Assembly Parts Diagram

  • Title

1

MTD GW-1167

CLAMP-T-bar, handlebar mounting

Note: For recoil or electric start models

$

$

Not available

2

Troy-Bilt GW-9915

LOCKWASHER-spring lock 5/8"
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

3

Troy-Bilt GW-9119

KNOB -handlebar height adjustment

$11.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-9120

RING- retaining (tolerance ring)

$6.99

$

In Stock, only 1 left!

0

5

Troy-Bilt GW-1881

STUD - handlebar height adjustment

Note: Includes #9119 knob (Ref. #3) and #9803 nut (Ref. #6)

$62.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt GW-9803

NUT- hex., 1/2"-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt GW-1021-1

CLAMP- handlebar height adjustment,left
(Superseded to 1900854010)

$36.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt GW-1020-1

RATCHET- handlebar height adjustment, left
(Superseded to 1900856010)

$42.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-1020-2

RATCHET- handlebar height adjustment, right
(Superseded to 1900857010)

$49.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-1021-2

CLAMP - handlebar height adjustment, right
(Superseded to 1900855010)

$38.99

$

Usually ships in 3-6 days

0

11

MTD GW-1019

BASE- handlebar mounting

$

$

Not available

12

Troy-Bilt GW-2214

HANDLEBAR AND PANEL ASSEMBLY

Note: (Includes Ref. No. 14, #2230 Decal, and two Ref. No. 13, #9118 Grip)

$

$

Currently unavailable

13

Troy-Bilt GW-9118

GRIP-handlebar
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

14

Troy-Bilt GW-2412

DECAL- power unit operating instructions

$

$

Not available

15

Troy-Bilt GW-9733

SCREW - pan hot., #10-32 x 1/2", self-tapping
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

16

MTD GW-9015

THROTTLE LEVER AND CABLE ASSEMBLY -

Note: for 6 HP Tecumseh, 7 HP Kohler and 8 HP Briggs & Stratton engines. Does not include Ref. No. 15, #9733 Screw or Ref. No.18, 89116 Clip; Replaces 9240

$

$

Not available

MTD GW-9967

THROTTLE LEVER AND CABLE ASSEMBLY -

Note: For use with the 7 HP Tecumseh engine only

$

$

Not available

17

MTD GW-9033

THROTTLE LEVER AND CABLE ASSEMBLY -

Note: for 8 HP Kohler engine. Does not include Ref. No. 15, #97333 screw or Ref. No. 18, #9116 Clip

$

$

Not available

18

Troy-Bilt GW-9202

TIE - plastic Secures throttle cable
(Superseded to 725-0157)

Note: Replaces 9116

$3.99

$

In Stock, only 2 left!

0

19

MTD GW-2449

DECAL- throttle operation

Note: For Tecumseh and Kohler model engines only

$

$

Not available
