Horse II - Troy-Bilt Rear-Tine Tiller, 8hp (SN: 001001 - 639999) ELECTRIC START SYSTEMS (TEC.)(S/N 291332 & BELOW) Parts Diagram

Rear-Tine Tiller, 8hp

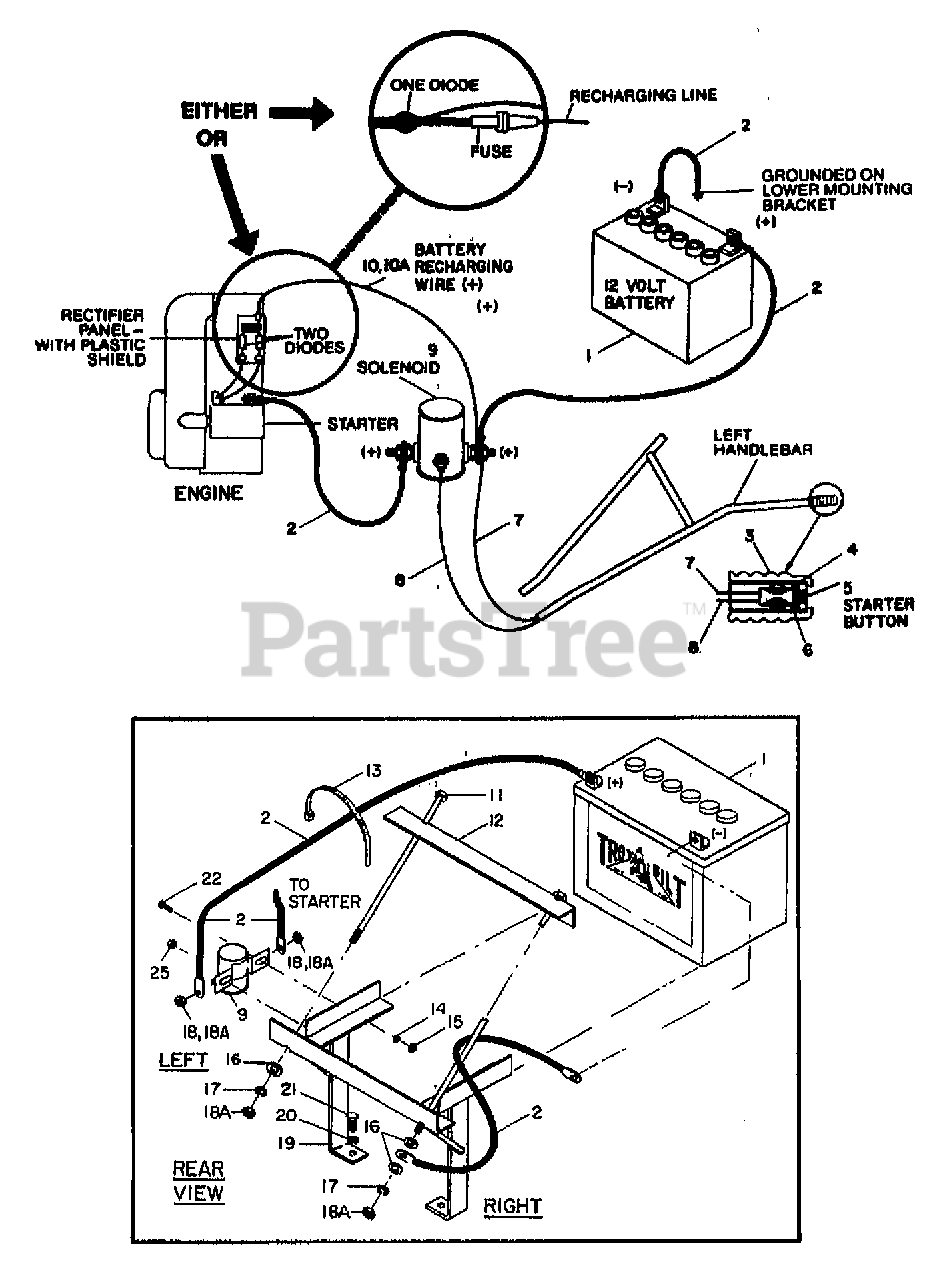

ELECTRIC START SYSTEMS (TEC.)(S/N 291332 & BELOW) Parts Diagram

  • Title
1

Troy-Bilt 9123

KIT-VENTED BATTERY

$

$

Currently unavailable

2

Troy-Bilt 9124

CABLE-BATTERY

$

$

Currently unavailable

3

Troy-Bilt 9141

GRIP-HANDLEBAR

$

$

Currently unavailable

4

Troy-Bilt 1180

SPACER-1.25X1X1.375

$

$

Currently unavailable

5

Troy-Bilt 9128

SWITCH-STARTER

$

$

Currently unavailable

6

Troy-Bilt 1229

WASHER-#1.25X.938X.062

$

$

Currently unavailable

7

Troy-Bilt 1225

ASSM-WIRE LG

$

$

Currently unavailable

8

Troy-Bilt 1226

ASSM-WIRE SM

$

$

Currently unavailable

9

Troy-Bilt 9127

KIT-SOL W/HDW

$

$

Currently unavailable

10

Troy-Bilt 1424

ASSEMBLY-CONNECTOR

$

$

Currently unavailable

10A

Troy-Bilt 1227

ASSM-WIRE SOL/RECTIFIER

$

$

Currently unavailable

Troy-Bilt 29561

FUSE, 6AMPS (TEC. PART NUMBER)

$

$

Currently unavailable

11

Troy-Bilt 9706

SCR-HH 5/16-18 X 9

$

$

Currently unavailable

12

Troy-Bilt 1168

CLAMP-BATTERY BRKT

$

$

Currently unavailable

13

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

15

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

16

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

17

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

18

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

18A

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

19

Troy-Bilt 1169

KIT-BATTERY BRKT HORSE

$

$

Currently unavailable

20

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

21

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

22

Troy-Bilt 9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

23

Troy-Bilt 9218

CLIP-SPECIAL
(Superseded to GW-9218)

$

$

Not available

25

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable
