Horse II - Troy-Bilt Rear-Tine Tiller, 8hp (SN: 001001 - 639999) ELECTRIC START SYSTEMS (B&S) Parts Diagram

Rear-Tine Tiller, 8hp

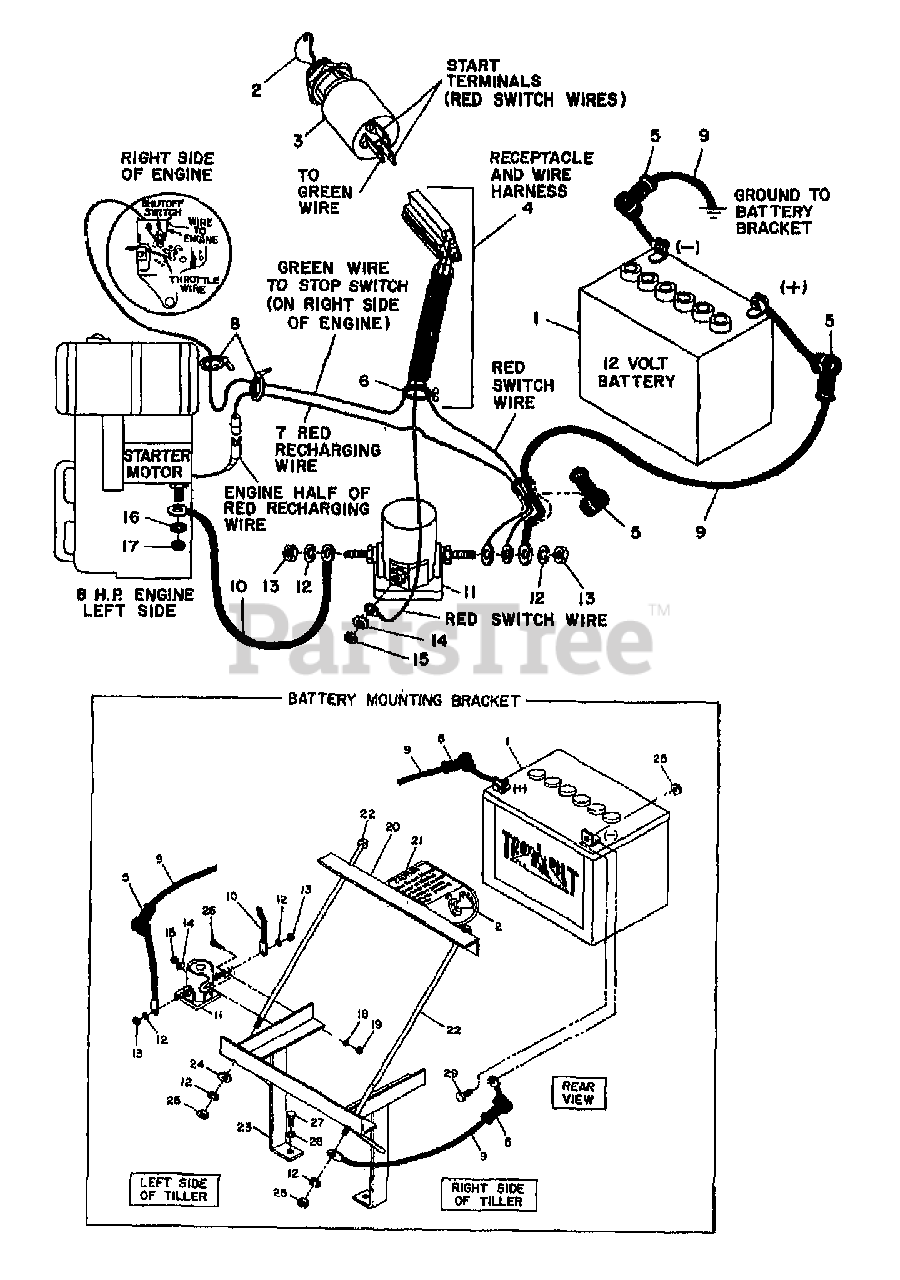

ELECTRIC START SYSTEMS (B&S) Parts Diagram

  • Title
1

Troy-Bilt 9123

KIT-VENTED BATTERY

$

$

Currently unavailable

2

Troy-Bilt 9243

KEYS(1 PAIR) FOR SWITCH

$

$

Currently unavailable

3

Troy-Bilt 9230

KEYSWITCH W/KEYS

$

$

Currently unavailable

4

Troy-Bilt 20424

ASSM-HARNESS 2647/20857

$

$

Currently unavailable

$

$

Currently unavailable

6

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available

7

Troy-Bilt 1554

WIRE-RECHARGE 5&7 BRIGGS

$

$

Currently unavailable

8

Troy-Bilt 9266

TIE-CABLE NYLON BLACK

$

$

Currently unavailable

9

Troy-Bilt 9295

CABLE-BATTERY

$

$

Currently unavailable

10

Troy-Bilt 9223

CABLE-BATTERY

$

$

Currently unavailable

11

Troy-Bilt 9127

KIT-SOL W/HDW

$

$

Currently unavailable

12

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

13

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

14

Troy-Bilt 9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

16

0

LOCKWASHER 1/4"

$

$

Not available

17

0

NUT HEX 1/4"-20

$

$

Not available

18

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

19

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

20

Troy-Bilt 1468

KEYSWITCH PLATE/CLAMP-WELD

$

$

Currently unavailable

21

Troy-Bilt 20418

DECAL-KEYSWITCH TILLER

$

$

Currently unavailable

22

Troy-Bilt 9706

SCR-HH 5/16-18 X 9

$

$

Currently unavailable

23

Troy-Bilt 1169

KIT-BATTERY BRKT HORSE

$

$

Currently unavailable

24

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

25

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

26

Troy-Bilt 9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

27

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

28

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

29

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable
