Horse II - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) ENGINE, PULLEYS, BELTS, HANDLES & SHIFTS Parts Diagram

Rear-Tine Tiller, 6hp

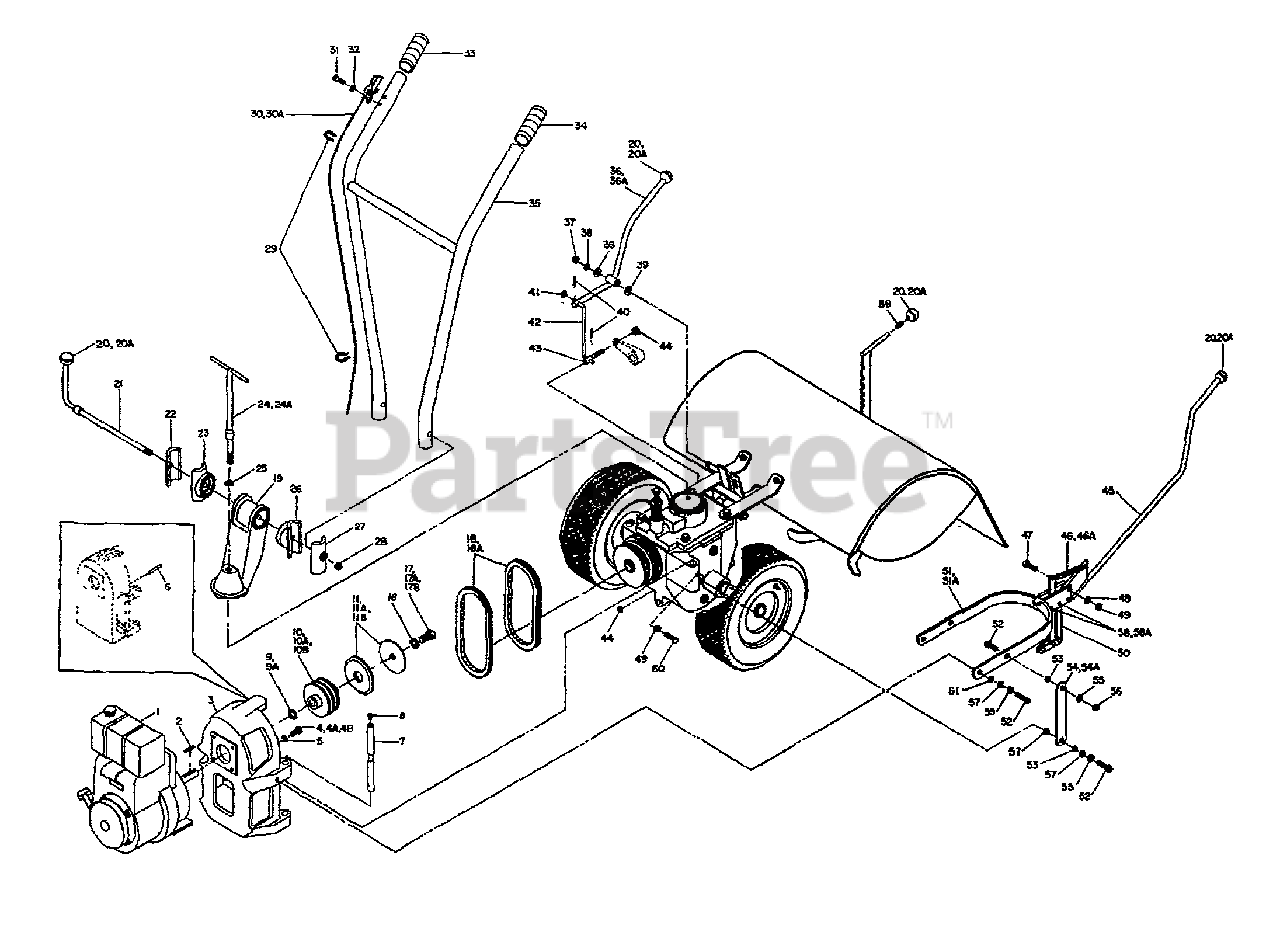

ENGINE, PULLEYS, BELTS, HANDLES & SHIFTS Parts Diagram

  • Title

1

0

ENGINE

$

$

Not available

2

Troy-Bilt 9303

KEY-.188 SQ X 2.33
(Superseded to GW-9303)

$3.99

$

In Stock, Qty 10

0

3

Troy-Bilt 1698

MOUNT-MOTOR ENG.HSE I,II,III

$

$

Currently unavailable

4

Troy-Bilt 9707

SCR 5/16-24 X 1

$

$

Currently unavailable

4A

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

4B

Troy-Bilt 9732

SCR 5/16-24 X 1

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 9310

PIN-SPIROL .25 X 2.5

$

$

Currently unavailable

7

Troy-Bilt 1034

BAR-ENG MTG W/CAP PLUG

$

$

Currently unavailable

8

Troy-Bilt 9147

PLUG-CAP (RED)
(Superseded to GW-9147)

$8.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

9A

MTD 1213

SHIM-1.0X.7656X.062
(Superseded to 690-900-0047)

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1483

PULLEY-ENG MACH
(Superseded to 619-04124)

$153.99

$

In Stock, only 2 left!

0

10A

Troy-Bilt 1007-1

PULLEY-ENG MACH D/BELT

$

$

Not available

10B

Troy-Bilt 1007

KIT-PULLEY CONVERSION

$

$

Currently unavailable

11

Troy-Bilt 1919

KIT-ADJ BLOCK/REV DISC
(Superseded to GW-1919)

$104.99

$

In Stock, Qty 15

0

11A

Troy-Bilt 1072A

KIT-REV DISC 2 SPEED

$

$

Currently unavailable

11B

Troy-Bilt 1072K

KIT-REV DISC 2 SPEED

$

$

Currently unavailable

16

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

17

Troy-Bilt 9738

SCR-HH 3/8-24X1.75 ZP

$

$

Currently unavailable

17A

Troy-Bilt 9715

SCR-HH 3/8-24X1.5 G5

$

$

Currently unavailable

17B

Troy-Bilt 9708

BOLT-HH 5/16-24 X 1.5 ZP

$

$

Currently unavailable

18

Troy-Bilt 9245

BELT-V
(Superseded to GW-9245)

$23.99

$

In Stock, Qty 20+

0

18A

Troy-Bilt 1128

KIT-V BELT

$

$

Currently unavailable

19

Troy-Bilt 1019

KIT-BASE ASSM

$

$

Currently unavailable

20

Troy-Bilt 9119

KNOB-CONTROL
(Superseded to GW-9119)

$11.99

$

In Stock, Qty 8

0

20A

Troy-Bilt 9136

KNOB-THREADED

$

$

Currently unavailable

21

Troy-Bilt 1881

STUD-H/BAR W/NUT & RING
(Superseded to GW-1881)

$62.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1021-2

CLAMP-RH HORSE 1021-2

$

$

Currently unavailable

23

Troy-Bilt 1020-2

RATCHET-RT H/BAR CAST

$

$

Currently unavailable

24

Troy-Bilt 1043

T-CLAMP WELD

$

$

Currently unavailable

24A

Troy-Bilt 1167

SCR-5/8 (2373/1043)

$

$

Currently unavailable

25

Troy-Bilt 9915

WASHER-LK .625 ZP

$

$

Currently unavailable

26

Troy-Bilt 1020-1

RATCHET-LT H/BAR CAST

$

$

Currently unavailable

27

Troy-Bilt 1021-1

CLAMP-LH HORSE 1021-1

$

$

Currently unavailable

28

Troy-Bilt 9803

NUT-HEX JAM 1/2-13

$

$

Currently unavailable

29

Troy-Bilt 9116

TIE-RED

$

$

Currently unavailable

30

Troy-Bilt 9240

CABLE-THROTTLE

$

$

Currently unavailable

30A

Troy-Bilt 9115

CABLE-THROTTLE

$

$

Currently unavailable

31

Troy-Bilt 9733

SCR-PHS M10-32X.5 STH ZP
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

32

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

33

Troy-Bilt 9118

GRIP-H/BAR SMOOTH

$

$

Currently unavailable

34

Troy-Bilt 9141

GRIP-HANDLEBAR

$

$

Currently unavailable

35

Troy-Bilt 1046A

ASSM-HANDLEBAR

$

$

Currently unavailable

36

Troy-Bilt 1843

LEVER-SPD SHIFT W/KNOB

$

$

Currently unavailable

36A

Troy-Bilt 1230A

LEVER-WHL SPEED W/KNOB

$

$

Currently unavailable

37

Troy-Bilt 9806

NUT-H/LK 1/2-20 ZP

$

$

Currently unavailable

38

Troy-Bilt 9914

WASHER-LK .5

$

$

Currently unavailable

39

MTD 9907

WASHER-PLAIN 1/2 ZP
(Superseded to 742-04092-0637)

$34.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 9317

PIN-COTTER .094X1.0
(Superseded to GW-9317)

$3.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

42

Troy-Bilt 1231

ROD-CONNECTING
(Superseded to GW-1231)

$16.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1033

SWIVEL
(Superseded to GW-1033)

$15.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 9808

NUT-H/LK 5/16-18

$

$

Currently unavailable

45

Troy-Bilt 1134A

TRAC-RER

$

$

Currently unavailable

46

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

46A

Troy-Bilt 1122

SPRING-.406 X 3.125

$

$

Currently unavailable

47

Troy-Bilt 9705

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

48

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

49

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

50

Troy-Bilt 1042

KIT-ROLLER HORSE 1 & 2

$

$

Currently unavailable

Troy-Bilt 1051A

KIT-ROLLER REPAIR

$

$

Currently unavailable

51

Troy-Bilt 1921

KIT-LEVER FWD/REV-HORSE 2

$

$

Currently unavailable

51A

Troy-Bilt 1037

YOKE-2SP WELD PNT

$

$

Currently unavailable

52

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

53

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 1488

BAR-CLUTCH YOKE

$

$

Currently unavailable

54A

MTD 1098

LINK-CLUTCH YOKE
(Superseded to 690-120-0041)

$

$

Not available

55

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

56

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

57

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

58

Troy-Bilt 9323

PIN-SPIROL .313 X 1.0

$

$

Currently unavailable

58A

MTD 1136

TRACTOR-R.E.R. 11HP 36"
(Superseded to 690-900-0037)

$

$

Not available

59

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

61

Troy-Bilt 2146

BUSHING-.5X.375X.325
(Superseded to GW-2146)

$6.49

$

In Stock, only 4 left!

0
