Horse I - Troy-Bilt Rear-Tine Tiller, 8hp (SN: 001001 - 639999) TINES, HOOD, WHEELS & DEPTH REGULATOR Parts Diagram

Rear-Tine Tiller, 8hp

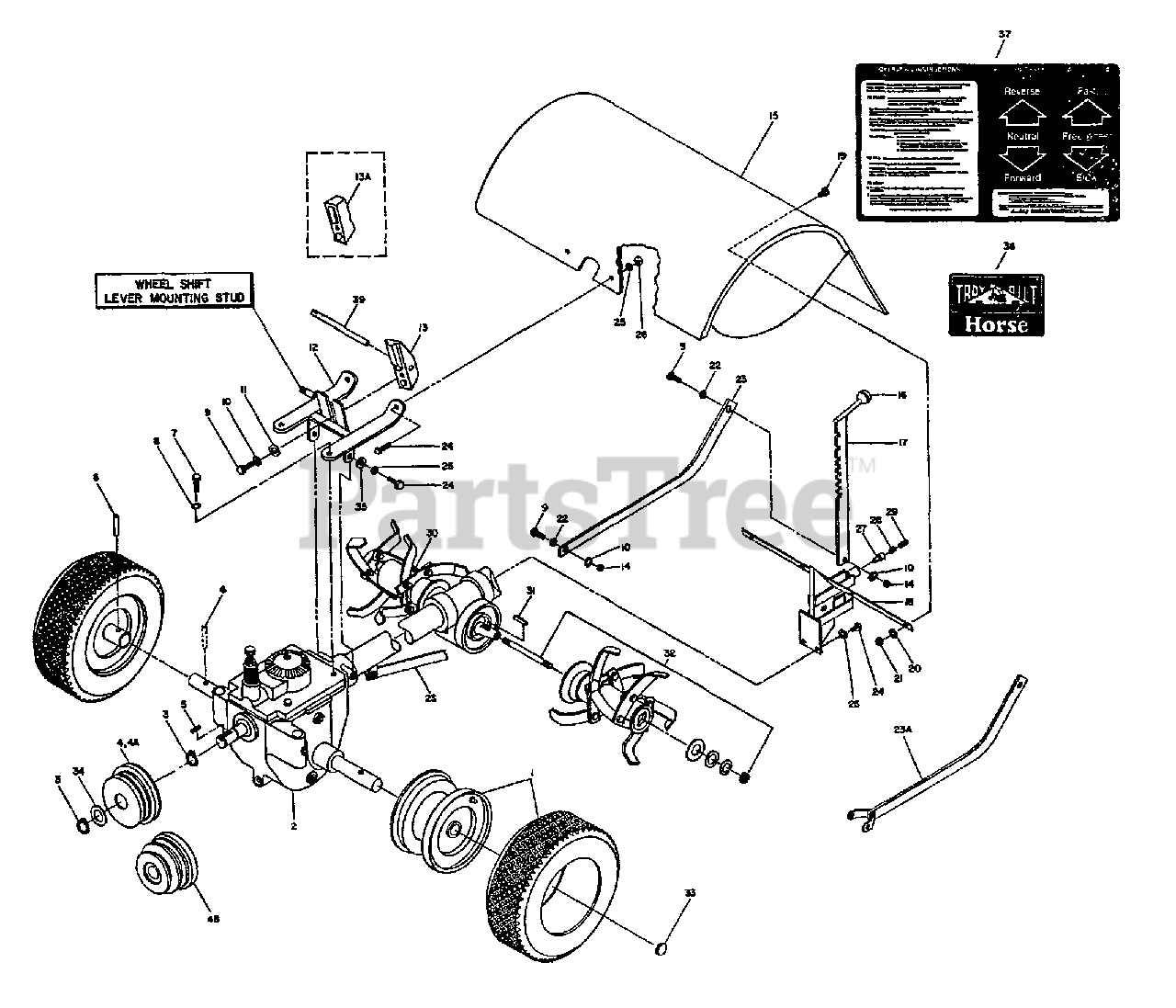

TINES, HOOD, WHEELS & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 9142

ASSM-STD TIRE

$

$

Currently unavailable

2

0

CASE

$

$

Not available

3

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1008-1

PULLEY-TRANS MACH 2 BELT

$

$

Not available

4A

MTD 1008

KIT-PULLEY CONVERSION
(Superseded to 690-120-0067)

$

$

Not available

4B

Troy-Bilt 1484

PULLEY-TRANS-MACH

$

$

Currently unavailable

5

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.99

$

In Stock, Qty 11

0

7

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

8

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

9

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

10

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

11

Troy-Bilt 9903

WASHER-1.0X.438X.104 ZP

$

$

Currently unavailable

12

Troy-Bilt 1077

BRKT-FRONT HOOD WELD

$

$

Currently unavailable

13

Troy-Bilt 1920

KIT-ADJ BLOCK 4 SP
(Superseded to GW-1920)

$60.99

$

In Stock, only 1 left!

0

13A

Troy-Bilt 1133-1A

BLOCK-BELT ADJUST MACH

$

$

Currently unavailable

14

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

15

Troy-Bilt 1519

HOOD W/DECALS HI&II

$

$

Currently unavailable

16

Troy-Bilt 9119

KNOB-CONTROL
(Superseded to GW-9119)

$11.99

$

In Stock, Qty 8

0

17

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 1076

KIT-REAR HOOD BRKT

$

$

Currently unavailable

19

Troy-Bilt 9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

20

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

21

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

22

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 4763

BAR-DRAG PNT RED

$

$

Currently unavailable

23A

Troy-Bilt 1116

ASSM-WELD DRAG BAR PNT

$

$

Currently unavailable

24

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

25

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

26

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

27

Troy-Bilt 1119

PLUNGER

$

$

Currently unavailable

28

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

29

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

30

0

BOLO TINE ASSEMBLY, RIGHT

$

$

Not available

31

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

32

0

SEE TINE ASSEMBLIES, PAGES 18 & 19

$

$

Not available

33

Troy-Bilt 9145

CAP-HUB BLK PLASTIC

$

$

Currently unavailable

34

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

?36

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

37

Troy-Bilt 1239

DECAL-HOOD

$

$

Currently unavailable

38

Troy-Bilt 1238

DECAL-HORSE LOGO OPC

$

$

Currently unavailable

39

Troy-Bilt 2100

BAR-ADJUST
(Superseded to GW-2100)

$12.99

$

In Stock, only 1 left!

0
