Horse I - Troy-Bilt Rear-Tine Tiller, 7hp (SN: 001001 - 639999) TRANSMISSION ASSEMBLIES Parts Diagram

Rear-Tine Tiller, 7hp

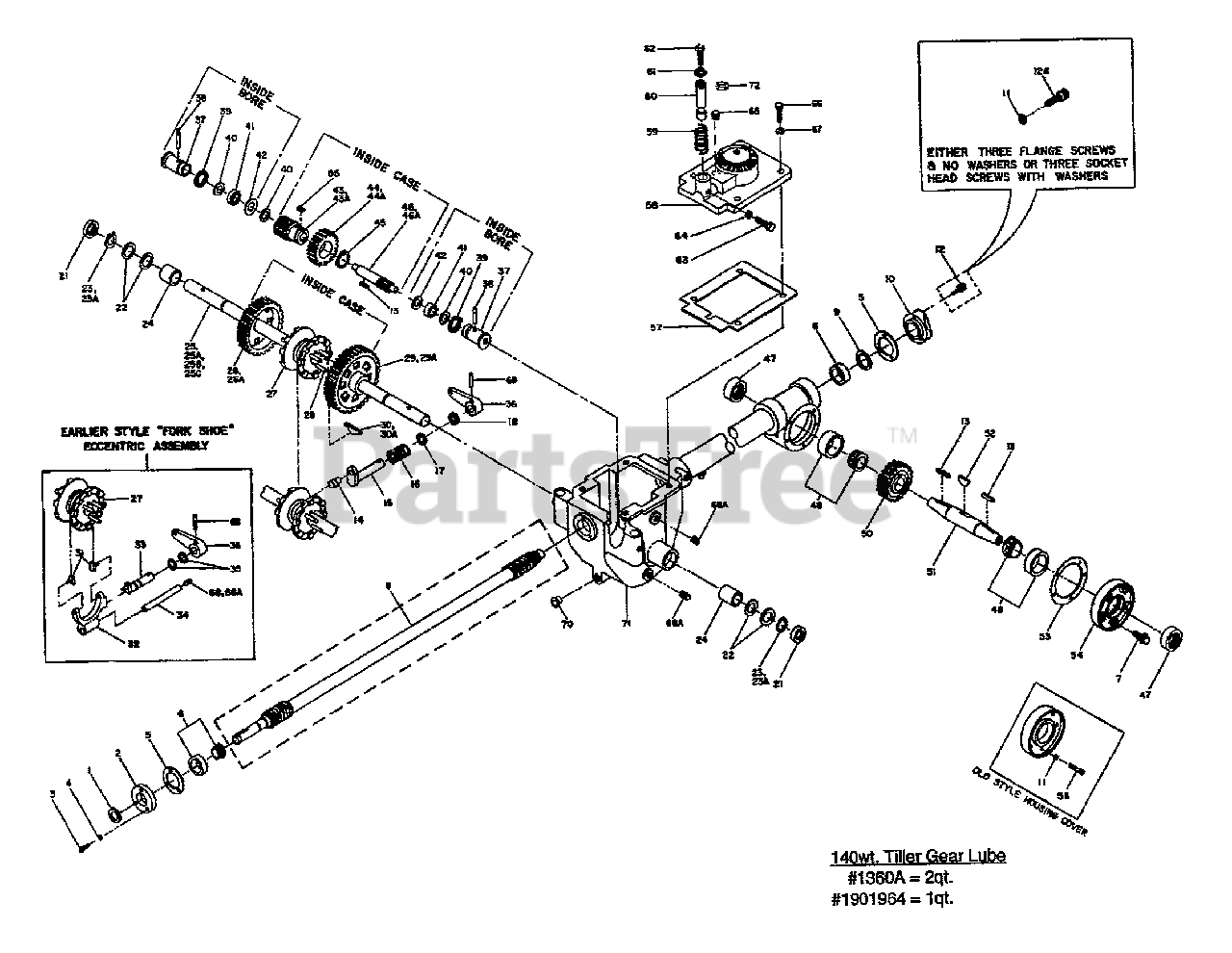

TRANSMISSION ASSEMBLIES Parts Diagram

  • Title

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable

1

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

2

Troy-Bilt 1114

COVER-FRONT

$

$

Currently unavailable

3

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

4

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

5

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

6

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

7

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

8

Troy-Bilt 1902

KIT-DRIVESHAFT HORSE

$

$

Currently unavailable

9

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

11

Troy-Bilt 9911

WASHER-LK .25 HI-COLLAR
(Superseded to GW-9911)

$5.99

$

In Stock, Qty 9

0

12

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

12A

Troy-Bilt 9719

SCR-HXSKT 1/4-20X1.0
(Superseded to GW-9719)

$5.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1442

PIN-.375 X .72
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

15

Troy-Bilt 1568

SHAFT-ECCENTRIC HORSE TLR

$

$

Currently unavailable

16

Troy-Bilt 1441

SPRING .845 X 1.25
(Superseded to GW-1441)

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1440

WASHER # .875 X .65 X .06
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 7

0

18

Troy-Bilt 9611

SEAL-OIL ECCENTRIC

$

$

Currently unavailable

21

Troy-Bilt 9609

SEAL-OIL WHEELSHAFT

$

$

Currently unavailable

22

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

22

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1166-5

SHIM-1.375X1.015X.005
(Superseded to 736-04257)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

23A

Troy-Bilt 9501

RING-RETAINING 5100-100

$

$

Currently unavailable

24

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

25

Troy-Bilt 1878

KIT-WHEELSHAFT
(Superseded to GW-1878)

$229.99

$

In Stock, Qty 8

0

25A

Troy-Bilt 1235A

KIT-WHEELSHAFT

$

$

Currently unavailable

25B

Troy-Bilt 1879

KIT-WHEELSHAFT

$

$

Currently unavailable

25C

Troy-Bilt 1025

KIT-WHEELSHAFT

$

$

Currently unavailable

26

Troy-Bilt 1232

GEAR-SPUR 46 TEETH MACH
(Superseded to GW-1232)

$154.99

$

Usually ships in 3-6 days

0

26A

Troy-Bilt 1005

GEAR-SPUR-50 TEETH-MACH

$

$

Currently unavailable

27

Troy-Bilt 1237

CLUTCH-MACH
(Superseded to GW-1237)

$162.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1112

PIN-CLUTCH .25 2.65
(Superseded to GW-1112)

$4.99

$

In Stock, Qty 6

0

29

Troy-Bilt 1223

GEAR-SPUR 56 TEETH MACH
(Superseded to GW-1223)

$223.99

$

Usually ships in 3-6 days

0

29A

Troy-Bilt 1004

GEAR-SPUR 60 TEETH-MACH

$

$

Currently unavailable

30

Troy-Bilt 9357

KEY-HI PRO .25X1.812
(Superseded to 714-04014)

$20.99

$

In Stock, only 2 left!

0

30A

Troy-Bilt 9305

KEY-HI PRO .25X1.062
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

31

Troy-Bilt 1094

PIN-.375 X .72

$

$

Currently unavailable

32

Troy-Bilt 1016

CLUTCH FORK

$

$

Currently unavailable

33

Troy-Bilt 1027A

SHAFT-ECC WITH O RING

$

$

Currently unavailable

34

Troy-Bilt 1041

PIN-.5X4.0 FORK #

$

$

Currently unavailable

35

Troy-Bilt 9603

RING-O .625 X .438

$

$

Currently unavailable

36

Troy-Bilt 1029

LEVER-ECC. #1029

$

$

Currently unavailable

13

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1060A

PLUG-PINION BRG W/RING
(Superseded to GW-1060A)

$

$

Not available

38

Troy-Bilt 9309

PIN-SPIROL .25 X 2.0
(Superseded to 715-0121)

$6.99

$

In Stock, Qty 8

0

39

Troy-Bilt 9604

RING-O 1 ID
(Superseded to GW-9604)

$5.49

$

In Stock, Qty 11

0

40

Troy-Bilt 1132-1

SHIM-1.234X1.015X.033
(Superseded to GW-1132-1)

$6.99

$

In Stock, Qty 5

0

40

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1132-3

SHIM-1.234X1.015X.01
(Superseded to GW-1132-3)

$6.99

$

In Stock, Qty 5

0

41

Troy-Bilt 9404

BRG-BALL (7 BALLS)
(Superseded to GW-9404)

$27.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 1126

WASHER-# 1X.484X.06
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 1233

GEAR-SPUR 20 TEETH MACH
(Superseded to GW-1233)

$142.99

$

Usually ships in 3-6 days

0

43A

Troy-Bilt 1056

GEAR-SPLINE-16 TEETH-MACH

$

$

Currently unavailable

44

Troy-Bilt 1221

GEAR-WORM 36 TEETH MACH

$

$

Currently unavailable

44A

Troy-Bilt 1057

GEAR-WORM-30 TEETH-MACH

$

$

Currently unavailable

45

Troy-Bilt 9502

RING-RETAINING 5100-150
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 1222

GEAR-SPLINE 10 TEETH MACH
(Superseded to GW-1222)

$139.99

$

Usually ships in 3-6 days

0

46A

Troy-Bilt 1055

GEAR-SPLINE 6 TEETH MACHINE

$

$

Currently unavailable

55

Troy-Bilt 9300

KEY
(Superseded to GW-9300)

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

?19

Troy-Bilt 9911

WASHER-LK .25 HI-COLLAR
(Superseded to GW-9911)

$5.99

$

In Stock, Qty 9

0

47

Troy-Bilt 9616

SEAL-OIL TILLERSHAFT

$

$

Currently unavailable

48

0

TAPERED, BEARING & CUP

$

$

Not available

50

0

WORM GEAR

$

$

Not available

?50A

Troy-Bilt 11527

KIT-TILLER GEAR & BRGS

$

$

Currently unavailable

51

Troy-Bilt 1026A

SHAFT-TILLER W/KEY

$

$

Currently unavailable

52

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 1129-1

GASKET-TILLER COVER
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

53

Troy-Bilt 1129-2

GASKET-TILLER COVER
(Superseded to GW-1129-2099)

$8.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 1872

COVER-W/SCRS(TLR) (9780)

$

$

Currently unavailable

56

Troy-Bilt 9718

SCR-HXSKT 1/4-20X.625

$

$

Currently unavailable

57

Troy-Bilt 1123

GASKET-TRANS COVER
(Superseded to GW-1123)

$8.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 1003

ASSM-COVER W/BOLT-HORSE

$

$

Currently unavailable

59

Troy-Bilt 1251

SPRING .78 X 2.125

$

$

Currently unavailable

?59A

Troy-Bilt 1496

SPRING-REV PLUNGER ZP

$

$

Currently unavailable

60

Troy-Bilt 1035

ASSM-NEUTRAL PLUNGER
(Superseded to GW-1035)

$37.99

$

In Stock, Qty 5

0

61

Troy-Bilt 9831

NUT-HFLK 3/8-16 ZP

$

$

Currently unavailable

62

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

63

Troy-Bilt 9751

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

64

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

65

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable

?67

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

68

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

68A

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

?69

Troy-Bilt 9307

PIN-SPIROL .188 X 1.25
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

70

Troy-Bilt 9122

PLUG-CAP (RED)
(Superseded to GW-9122)

$10.99

$

Usually ships in 3-6 days

0

71

0

TRANSMISSION CASE, HOUSING & TUBE ASSEMBLY

$

$

Not available

72

Troy-Bilt 9504

RING-KLIP EXT .594 ID ZP

$

$

Currently unavailable
