Horse I - Troy-Bilt Rear-Tine Tiller, 7hp (SN: 001001 - 639999) SEALS, COVERS, GASKETS, AND PIPE PLUGS Parts Diagram

Rear-Tine Tiller, 7hp

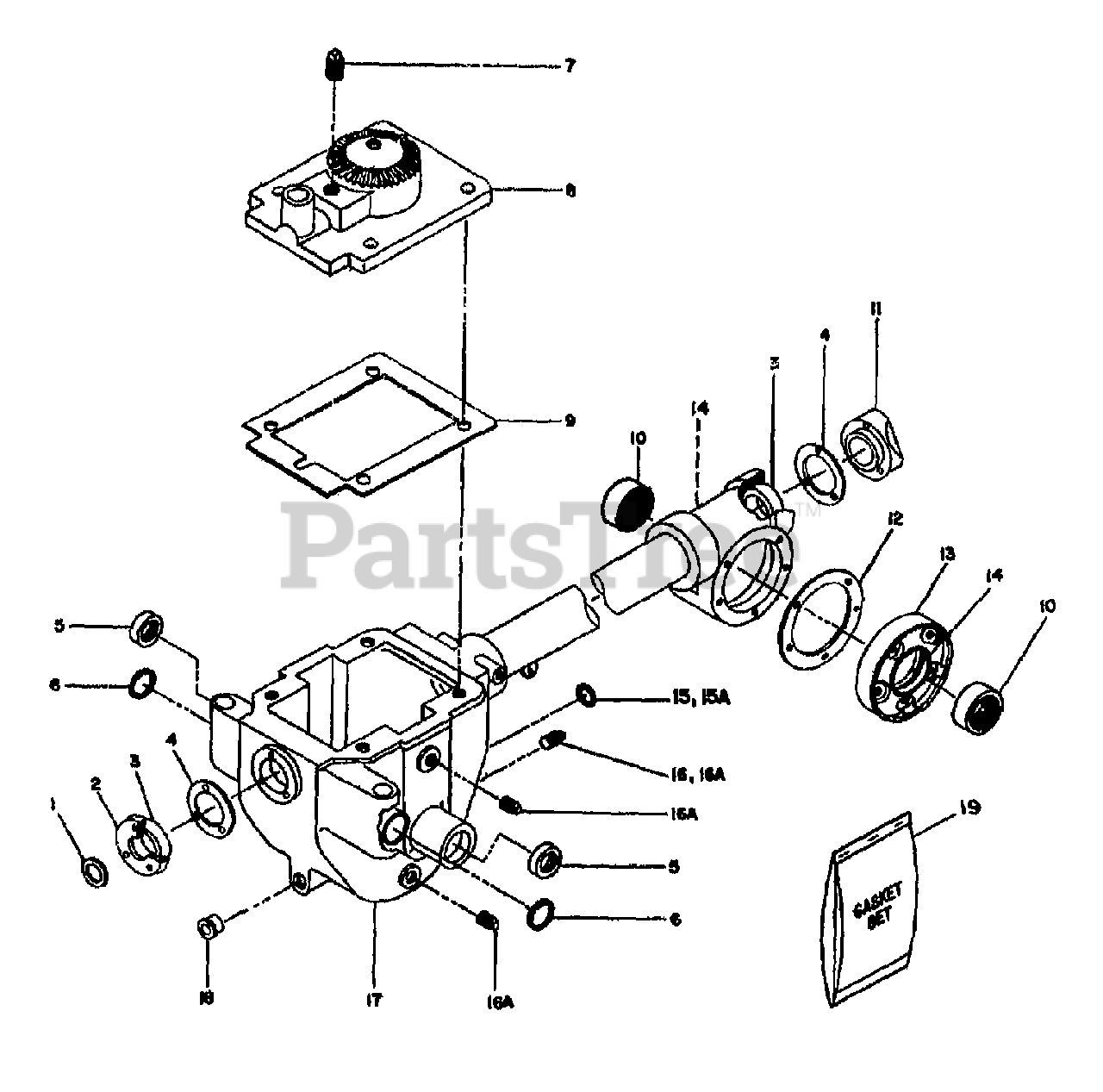

SEALS, COVERS, GASKETS, AND PIPE PLUGS Parts Diagram

  • Title

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable

1

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

2

Troy-Bilt 1114

COVER-FRONT

$

$

Currently unavailable

3

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 18

0

4

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

5

Troy-Bilt 9609

SEAL-OIL WHEELSHAFT

$

$

Currently unavailable

6

Troy-Bilt 9604

RING-O 1 ID
(Superseded to GW-9604)

$5.49

$

In Stock, Qty 11

0

7

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1003

ASSM-COVER W/BOLT-HORSE

$

$

Currently unavailable

9

Troy-Bilt 1123

GASKET-TRANS COVER
(Superseded to GW-1123)

$8.49

$

In Stock, only 4 left!

0

10

Troy-Bilt 9616

SEAL-OIL TILLERSHAFT

$

$

Currently unavailable

11

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

12

Troy-Bilt 1129-1

GASKET-TILLER COVER
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

12

Troy-Bilt 1129-2

GASKET-TILLER COVER
(Superseded to GW-1129-2099)

$8.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 1872

COVER-W/SCRS(TLR) (9780)

$

$

Currently unavailable

14

Troy-Bilt 11527

KIT-TILLER GEAR & BRGS

$

$

Currently unavailable

15

Troy-Bilt 9611

SEAL-OIL ECCENTRIC

$

$

Currently unavailable

15A

Troy-Bilt 9603

RING-O .625 X .438

$

$

Currently unavailable

16

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

16A

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

17

0

CASE

$

$

Not available

18

Troy-Bilt 9122

PLUG-CAP (RED)
(Superseded to GW-9122)

$10.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1121A

TRANS GASKET SET

$

$

Currently unavailable
