Horse I - Troy-Bilt Rear-Tine Tiller, 7hp (SN: 001001 - 639999) BOLO TINES ASSEMBLIES Parts Diagram

Rear-Tine Tiller, 7hp

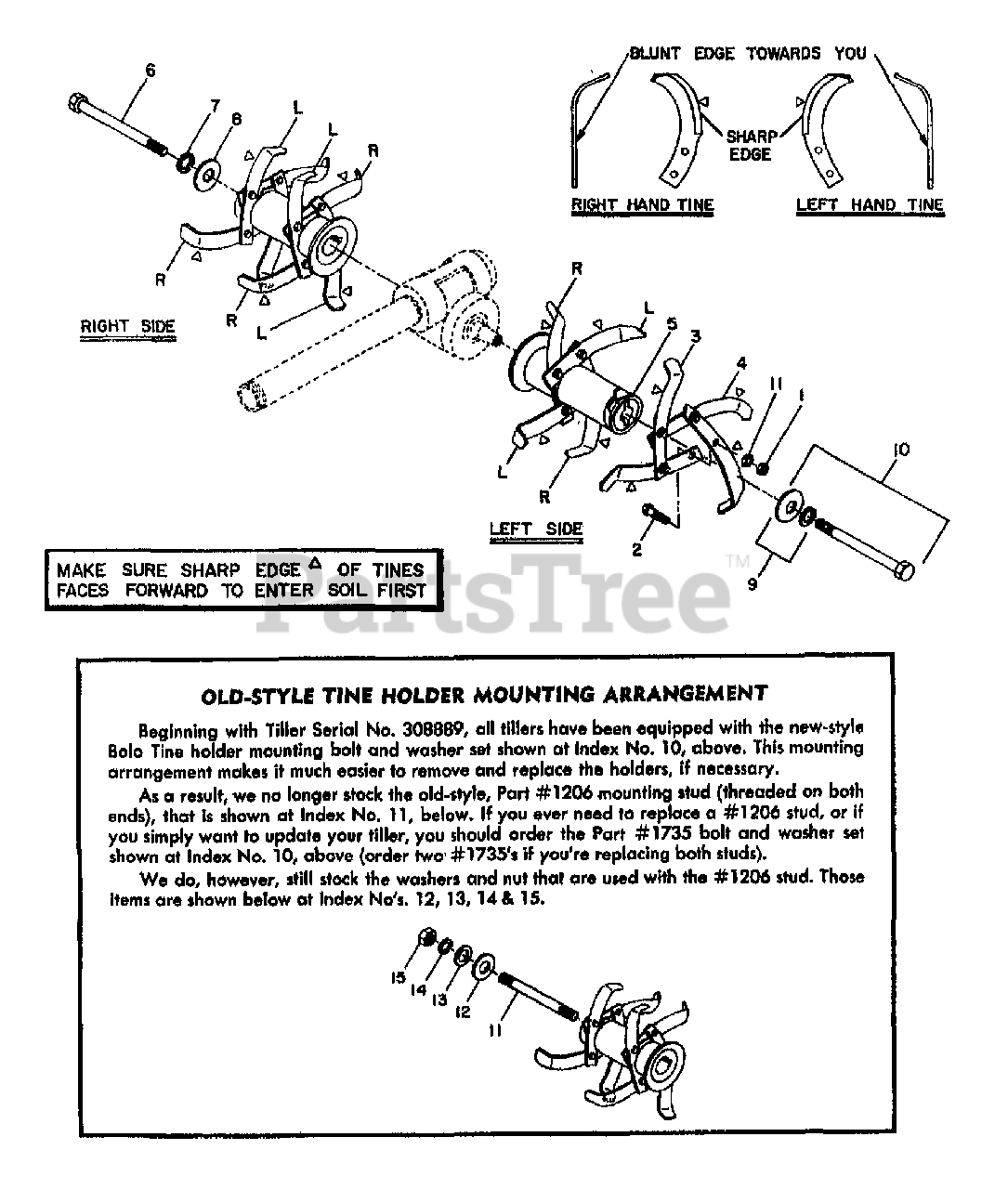

BOLO TINES ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

2

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

3

Troy-Bilt 1270-2A

TINE-BOLO RT W/HDW
(Superseded to 742-04118-0637)

$

$

Not available

4

Troy-Bilt 1270-1A

TINE-BOLO LT W/HDW
(Superseded to 742-04119-0637)

$

$

Not available

5

Troy-Bilt 1205

HOLDER-TINE W/SHIELD

$

$

Currently unavailable

6

Troy-Bilt 1463

BOLT-HH 1/2-20 X 5.75 ZP

$

$

Currently unavailable

7

Troy-Bilt 9914

WASHER-LK .5

$

$

Currently unavailable

8

Troy-Bilt 1461

WASHER-#1.75X.531X.187 ZP

$

$

Currently unavailable

9

Troy-Bilt 1207A

WASHER-SET BOLO

$

$

Currently unavailable

10

Troy-Bilt 1735

KIT-TINE BOLT & WASHER

$

$

Currently unavailable

11

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

Troy-Bilt 1246

BOLO HOLDERS & TINES

$

$

Currently unavailable

Troy-Bilt 1245K

TINES-BOLO HORSE/PONY/ECONO

$

$

Currently unavailable

11

Troy-Bilt 1206

KIT-TINE BOLT & WASHER

$

$

Currently unavailable

12

Troy-Bilt 9908

WASHER-1.75X.625X.11

$

$

Currently unavailable

13

MTD 9905

WASHER-PLAIN 1/2 ZP

$

$

Not available

14

Troy-Bilt 9914

WASHER-LK .5

$

$

Currently unavailable

15

Troy-Bilt 9805

NUT-HEX 1/2-20

$

$

Currently unavailable
