Horse I - Troy-Bilt Rear-Tine Tiller, 7hp (SN: 001001 - 639999) ASSEMBLED DRIVE SHAFTS Parts Diagram

Rear-Tine Tiller, 7hp

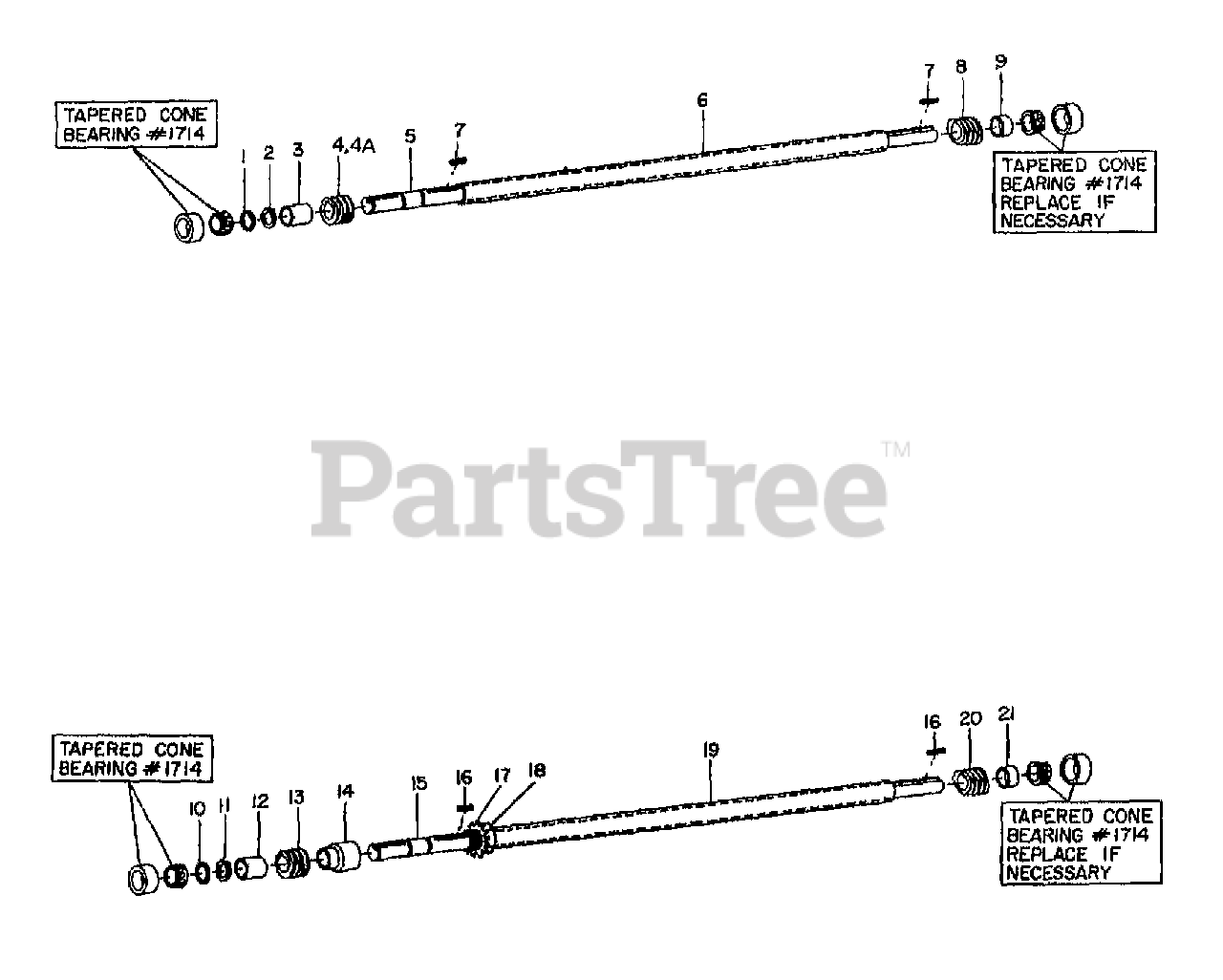

ASSEMBLED DRIVE SHAFTS Parts Diagram

  • Title

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

1

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1065

SPACER-1X.76X1.25

$

$

Currently unavailable

4

Troy-Bilt 1220

WORM-1.25 PD .26 LEAD

$

$

Currently unavailable

4A

Troy-Bilt 1058

GEAR-WORM 1.25 PD .62 LEAD

$

$

Currently unavailable

5

Troy-Bilt 1024

DRIVESHAFT-MACH

$

$

Currently unavailable

6

Troy-Bilt 1219

SLEEVE-WORM SPACER

$

$

Currently unavailable

7

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1063

WORM-1.25 PD .62 LEAD

$

$

Currently unavailable

9

Troy-Bilt 1066

SPACER-1X.76X.54

$

$

Currently unavailable

10

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1065

SPACER-1X.76X1.25

$

$

Currently unavailable

13

Troy-Bilt 1058

GEAR-WORM 1.25 PD .62 LEAD

$

$

Currently unavailable

14

Troy-Bilt 1070

SPACER-1.25X(VAR)X1.5

$

$

Currently unavailable

15

Troy-Bilt 1024

DRIVESHAFT-MACH

$

$

Currently unavailable

16

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1069

SPACER SLEEVE

$

$

Currently unavailable

18

Troy-Bilt 1068

NUT 1.0-14 ADJ

$

$

Currently unavailable

19

Troy-Bilt 1067

TUBING-MACH

$

$

Currently unavailable

20

Troy-Bilt 1063

WORM-1.25 PD .62 LEAD

$

$

Currently unavailable

21

Troy-Bilt 1066

SPACER-1X.76X.54

$

$

Currently unavailable
