Horse I - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) WHEELS AND TIRES Parts Diagram

Rear-Tine Tiller, 6hp

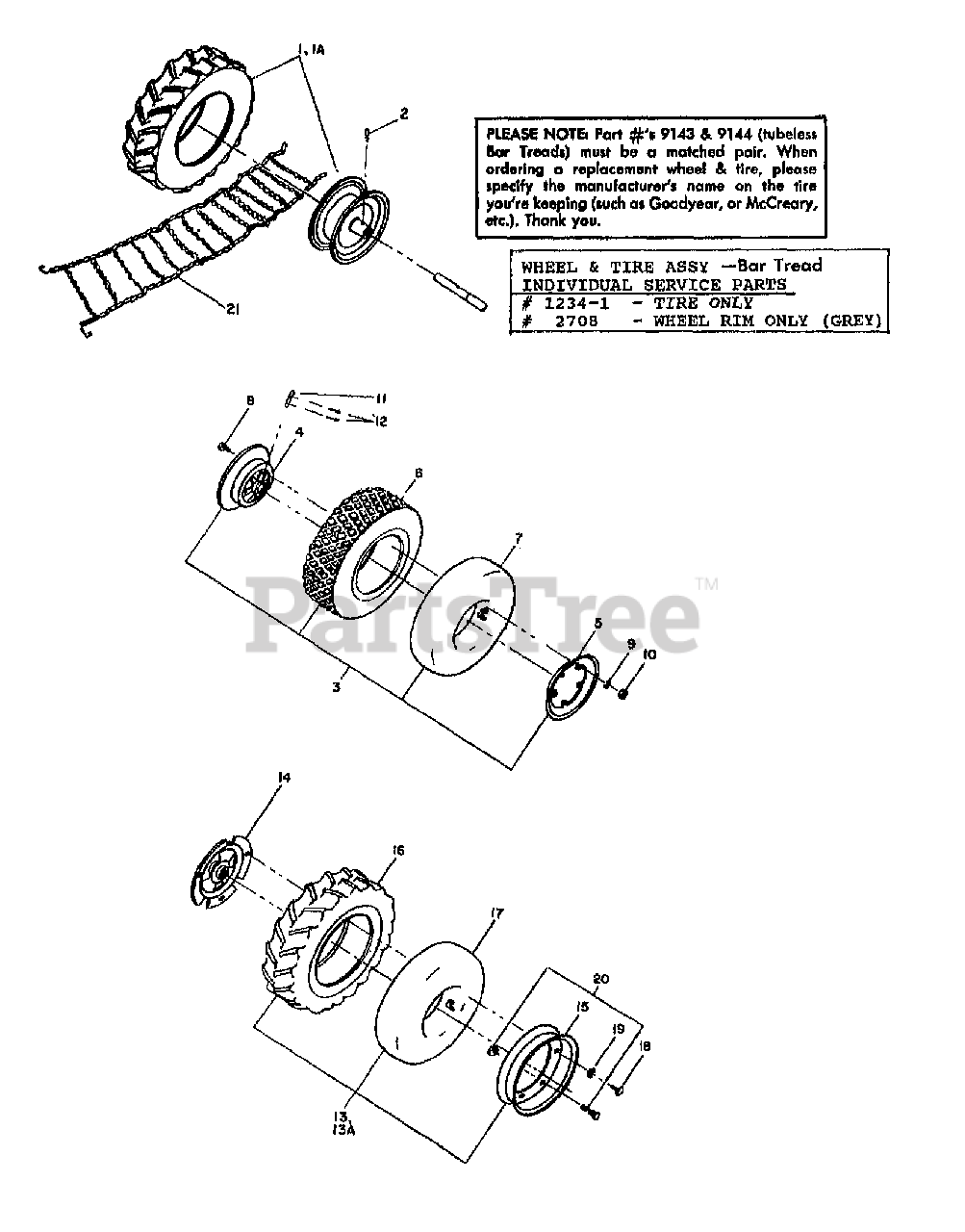

WHEELS AND TIRES Parts Diagram

  • Title

Troy-Bilt GW-1234-1

TIRE-BTT 4.80/4.00X8.00
(Superseded to 734-0808A)

$123.99

$

Usually ships in 3-6 days

0

MTD GW-2708

RIM-WHEEL 8" GRAY

$

$

Not available

1

MTD GW-9144

TIRE-RT BT GARDEN TRAC

$

$

Not available

1A

MTD GW-9143

TIRE-LT BT GARDEN TRAC

$

$

Not available

2

Troy-Bilt GW-9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.99

$

In Stock, Qty 11

0

3

Troy-Bilt GW-9148

4X7TIRE/TUBE

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Troy-Bilt GW-1017

WHEEL RIM

$

$

Currently unavailable

6

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Troy-Bilt GW-9712

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-9913

WASHER-LK .375
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-1097

KIT-NUT/BOLT PIN WHL/SHAFT
(Superseded to GW-1780)

$

$

Not available

12

Troy-Bilt GW-9317

PIN-COTTER .094X1.0

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt GW-9149

ASSM-WHEEL 4X8 BTT

$

$

Currently unavailable

13A

Troy-Bilt GW-9150

ASSM-RT WHL BTT

$

$

Currently unavailable

14

Troy-Bilt GW-1163

HUB-WHEEL MACH

$

$

Currently unavailable

15

Troy-Bilt GW-9113

RIMS W/HDW (1648)

$

$

Currently unavailable

16

Troy-Bilt GW-9111

TIRE-BTT 4.80/4.00X8.00
(Superseded to 734-0808A)

$123.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-9112

TUBE-INNER BT (4 X 8)

$

$

Currently unavailable

18

Troy-Bilt GW-9709

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

19

Troy-Bilt GW-9913

WASHER-LK .375
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

20

0

STUD & NUT

$

$

Not available

21

Troy-Bilt GW-9146

CHAINS-HORSE TILLER

$

$

Currently unavailable
