Horse I - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) TINES, HOOD, WHEELS & DEPTH REGULATOR Parts Diagram

Rear-Tine Tiller, 6hp

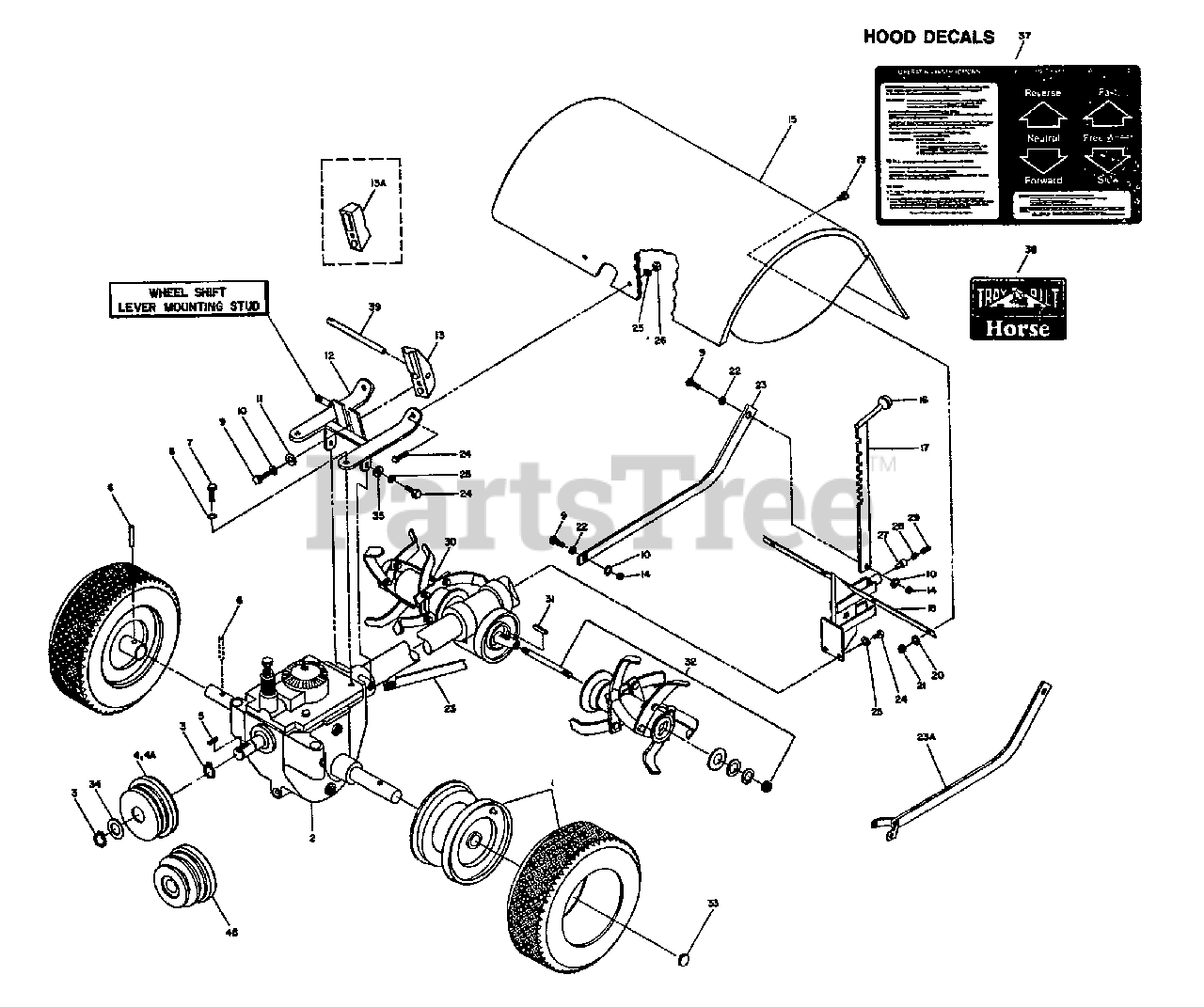

TINES, HOOD, WHEELS & DEPTH REGULATOR Parts Diagram

  • Title

1

MTD GW-9142

ASSM-STD TIRE

$

$

Not available

2

N/A

CASE

$

$

Not available

3

Troy-Bilt GW-9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt GW-1008-1

PULLEY-TRANS MACH 2 BELT

$131.99

$

Usually ships in 3-6 days

0

4A

MTD GW-1008

KIT-PULLEY CONVERSION

$

$

Not available

4B

Troy-Bilt GW-1484

PULLEY-TRANS-MACH
(Superseded to 753-05600A)

$446.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9301

KEY-.188 SQX1.0

$3.99

$

In Stock, only 3 left!

0

6

Troy-Bilt GW-9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.99

$

In Stock, Qty 11

0

7

MTD GW-9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

8

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-9710

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt GW-9903

WASHER-1.0X.438X.104 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

12

MTD GW-1077

BRKT-FRONT HOOD WELD

$

$

Not available

13

Troy-Bilt GW-1920

KIT-ADJ BLOCK 4 SP

$60.99

$

In Stock, only 1 left!

0

13A

Troy-Bilt GW-1133-1A

BLOCK-BELT ADJUST MACH

$69.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

15

MTD GW-1519

HOOD W/DECALS HI&II

$

$

Not available

16

Troy-Bilt GW-9119

KNOB-CONTROL

$11.99

$

In Stock, only 1 left!

0

17

Troy-Bilt GW-1117A

DEPTH REGULATOR W/KNOB
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

18

MTD GW-1076

KIT-REAR HOOD BRKT

$

$

Not available

19

Troy-Bilt GW-9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

20

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

22

Troy-Bilt GW-1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt GW-4763

BAR-DRAG PNT RED
(Superseded to 1903633)

$80.99

$

In Stock, only 3 left!

0

23A

MTD GW-1116

ASSM-WELD DRAG BAR PNT

$

$

Not available

24

Troy-Bilt GW-9703

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt GW-1119

PLUNGER

$27.99

$

In Stock, only 2 left!

0

28

MTD GW-1120

SPRING .406 X 1.25

$

$

Not available

29

Troy-Bilt GW-9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

30

N/A

BOLO TINE ASSEMBLY, RIGHT

$

$

Not available

31

Troy-Bilt GW-9301

KEY-.188 SQX1.0

$3.99

$

In Stock, only 3 left!

0

32

N/A

SEE TINE ASSEMBLIES, PAGES 18 & 19

$

$

Not available

33

Troy-Bilt GW-9145

CAP-HUB BLK PLASTIC
(Superseded to 1902020)

$

$

Not available

34

Troy-Bilt GW-1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

?36

Troy-Bilt GW-9712

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

37

MTD GW-1239

DECAL-HOOD

$

$

Not available

38

Troy-Bilt GW-1238

DECAL-HORSE LOGO OPC
(Superseded to GW-2610)

$

$

Not available

39

Troy-Bilt GW-2100

BAR-ADJUST

$12.99

$

In Stock, only 1 left!

0
