Horse I - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) ELECTRIC START SYSTEMS (TEC.)(S/N 291332 & BELOW) Parts Diagram

Rear-Tine Tiller, 6hp

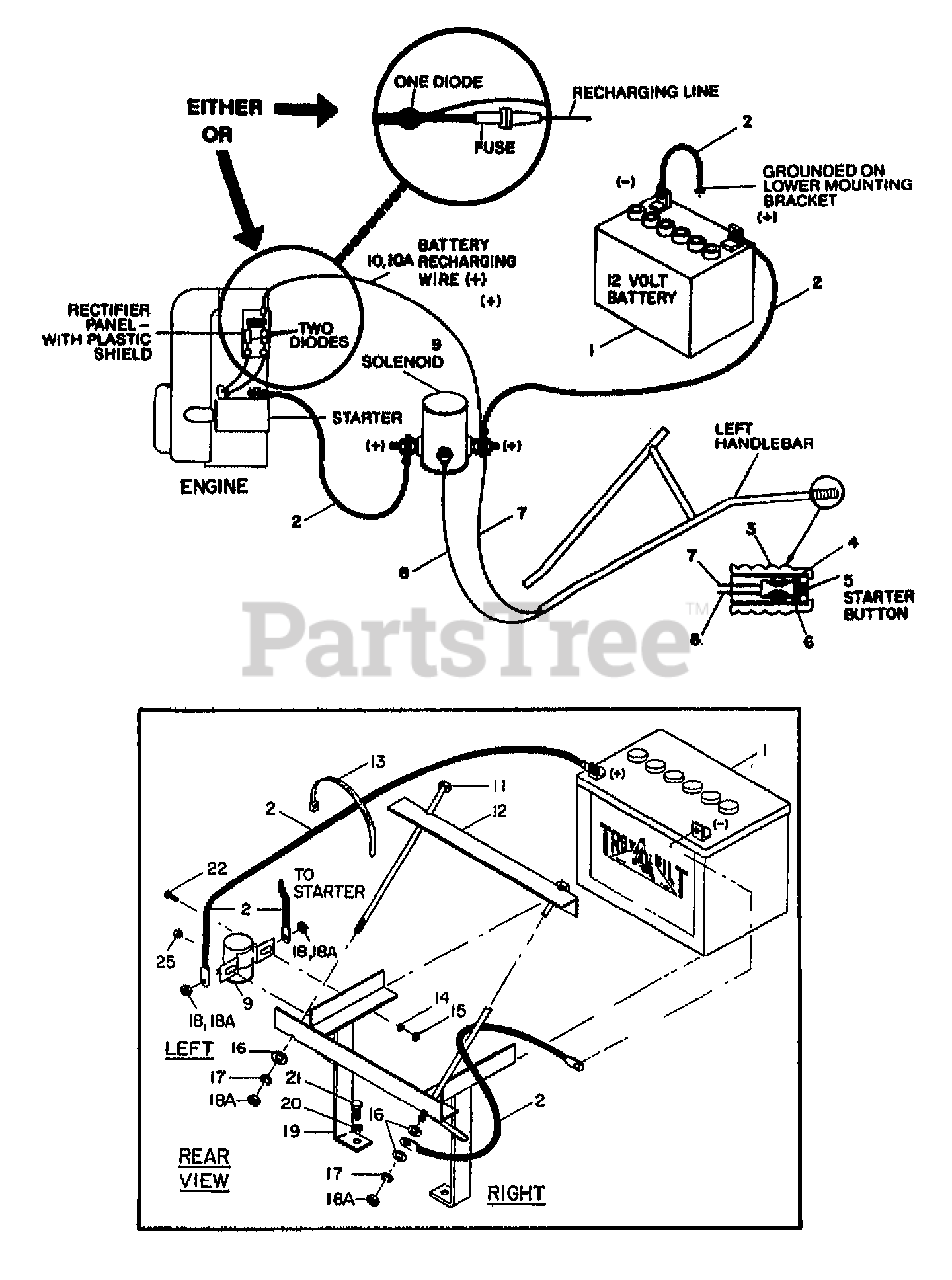

ELECTRIC START SYSTEMS (TEC.)(S/N 291332 & BELOW) Parts Diagram

  • Title
1

MTD GW-9123

KIT-VENTED BATTERY

$

$

Not available

2

Troy-Bilt GW-9124

CABLE-BATTERY
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

3

MTD GW-9141

GRIP-HANDLEBAR

$

$

Not available

4

Troy-Bilt GW-1180

SPACER-1.25X1X1.375

$

$

Currently unavailable

5

MTD GW-9128

SWITCH-STARTER

$

$

Not available

6

MTD GW-1229

WASHER-#1.25X.938X.062

$

$

Not available

7

MTD GW-1225

ASSM-WIRE LG

$

$

Not available

8

MTD GW-1226

ASSM-WIRE SM

$

$

Not available

9

Troy-Bilt GW-9127

KIT-SOL W/HDW
(Superseded to GW-1959)

$

$

Not available

10

Troy-Bilt GW-1424

ASSEMBLY-CONNECTOR

$

$

Currently unavailable

10A

Troy-Bilt GW-1227

ASSM-WIRE SOL/RECTIFIER

$

$

Currently unavailable

Troy-Bilt GW-29561

FUSE, 6AMPS (TEC. PART NUMBER)

$

$

Currently unavailable

11

MTD GW-9706

SCR-HH 5/16-18 X 9

$

$

Not available

12

MTD GW-1168

CLAMP-BATTERY BRKT

$

$

Not available

13

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

14

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

16

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

18A

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt GW-1169

KIT-BATTERY BRKT HORSE

$

$

Currently unavailable

20

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

21

MTD GW-9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

22

Troy-Bilt GW-9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

?23

Troy-Bilt GW-9218

CLIP-SPECIAL

$

$

Not available

25

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$6.49

$

Usually ships in 3-6 days

0
