Horse I - Troy-Bilt Rear-Tine Tiller, 6hp (SN: 001001 - 639999) ELECTRIC START SYSTEMS (B&S) Parts Diagram

Rear-Tine Tiller, 6hp

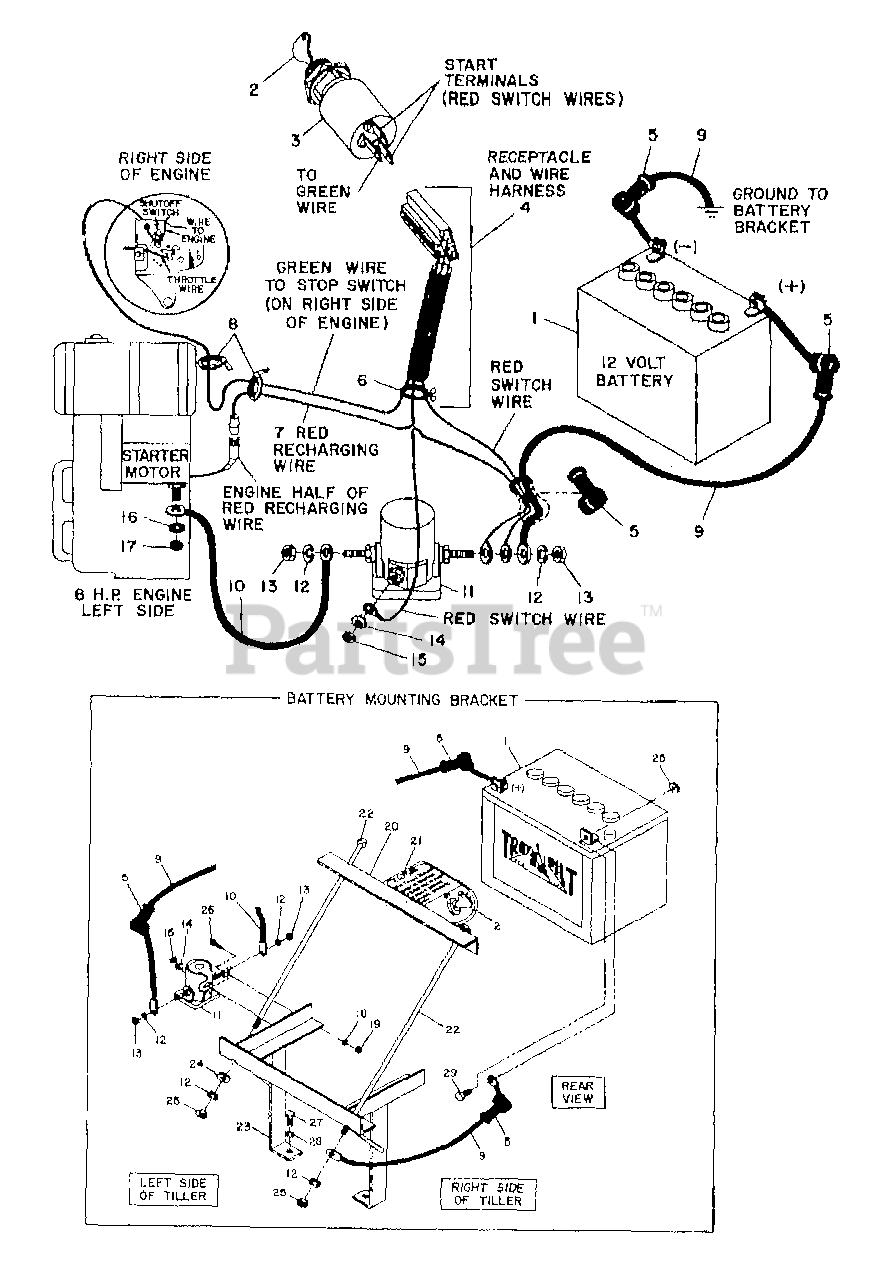

ELECTRIC START SYSTEMS (B&S) Parts Diagram

  • Title
1

MTD GW-9123

KIT-VENTED BATTERY

$

$

Not available

2

Troy-Bilt GW-9243

KEYS(1 PAIR) FOR SWITCH
(Superseded to GW-9243099)

$

$

Not available

3

MTD GW-9230

KEYSWITCH W/KEYS

$

$

Not available

4

Troy-Bilt GW-20424

ASSM-HARNESS 2647/20857

$

$

Currently unavailable

$

$

Not available

6

Troy-Bilt GW-9265

TIE-TWIST LOCK

$

$

Not available

7

Troy-Bilt GW-1554

WIRE-RECHARGE 5&7 BRIGGS
(Superseded to 1901894)

$

$

Not available

8

Troy-Bilt GW-9266

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

9

Troy-Bilt GW-9295

CABLE-BATTERY
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

10

MTD GW-9223

CABLE-BATTERY

$

$

Not available

11

Troy-Bilt GW-9127

KIT-SOL W/HDW
(Superseded to GW-1959)

$

$

Not available

12

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

14

Troy-Bilt GW-9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$6.49

$

Usually ships in 3-6 days

0

16

N/A

LOCKWASHER 1/4"

$

$

Not available

17

N/A

NUT HEX 1/4"-20

$

$

Not available

18

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

20

Troy-Bilt GW-1468

KEYSWITCH PLATE/CLAMP-WELD

$

$

Currently unavailable

21

Troy-Bilt GW-20418

DECAL-KEYSWITCH TILLER
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

22

MTD GW-9706

SCR-HH 5/16-18 X 9

$

$

Not available

23

Troy-Bilt GW-1169

KIT-BATTERY BRKT HORSE

$

$

Currently unavailable

24

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt GW-9723

SCR-RH 1/4-20 X .75 ZP

$

$

Currently unavailable

27

MTD GW-9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

28

Troy-Bilt GW-9913

WASHER-LK .375
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt GW-9703

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0
