HMBB 212 (UT-30070) - Homelite 21" Maxi Bagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Maxi Bagger Walk-Behind Mower

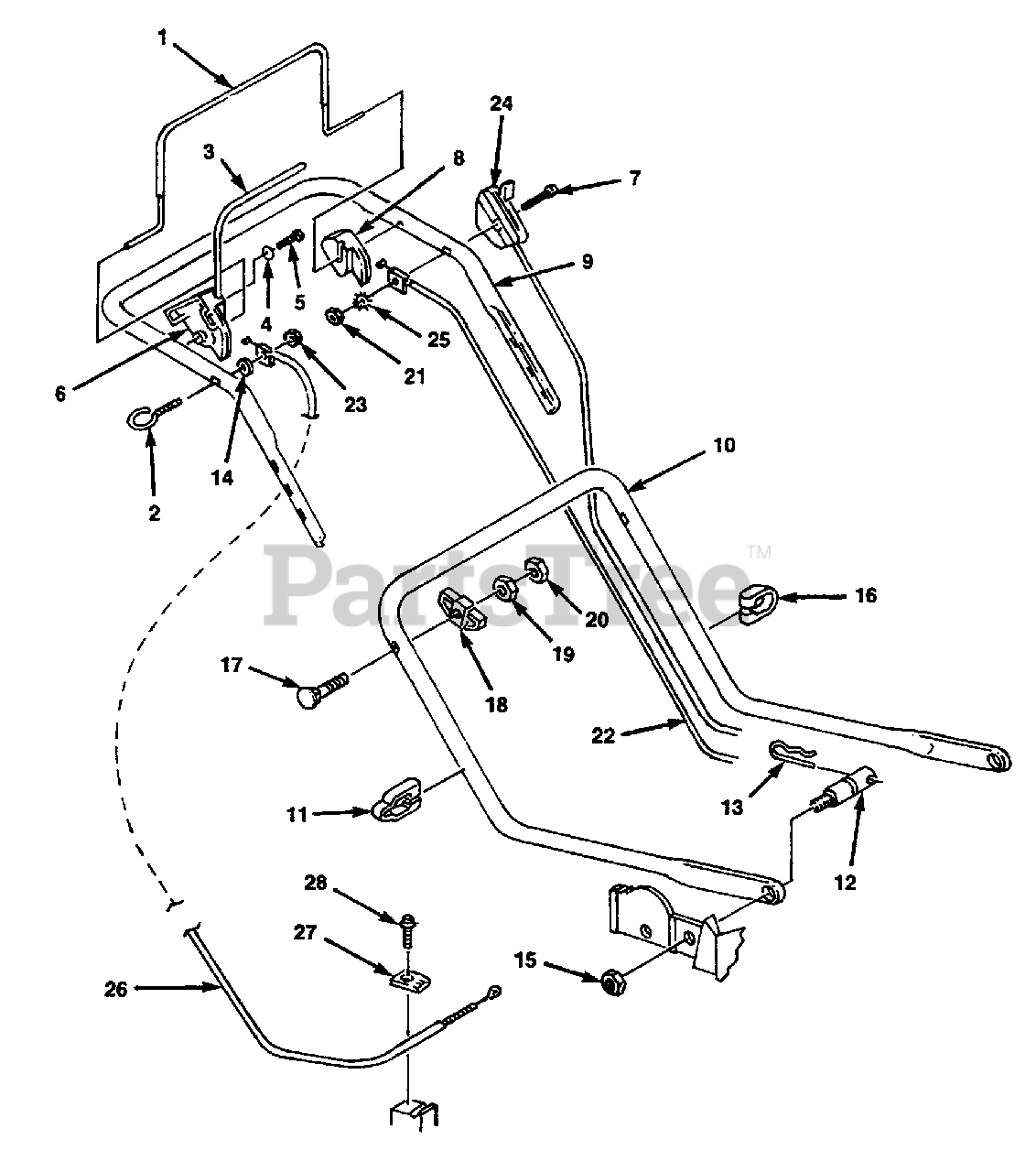

Handles & Controls Parts Diagram

  • Title
1

Homelite JA991886

BAIL- Brake

$79.99

$

Usually ships in 3-7 days

0

2

$

$

Currently unavailable

3

Homelite JA991893

TRACTION BAIL

Note: Not used on this product

$

$

Currently unavailable

4

Homelite 84103

WASHER

Note: Not used on this product

$

$

Not available

5

Homelite 82215

SCREW
(Superseded to 82528)

Note: Not used on this product

$2.49

$

Usually ships in 3-7 days

0

6

Homelite JA991906

ACTUATOR- R.H.

Note: Not used on this product

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

Homelite JA991907

ACTUATOR- L.H.

$

$

Currently unavailable

9

Homelite JA991895

HANDLE- Upper

$

$

Currently unavailable

10

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

11

Homelite JA995420

CLAMP- Cable (single)
(Superseded to JA994274)

$

$

Not available

12

Homelite JA359178

STUD- Handle mtg.

$

$

Not available

13

Homelite JA460306

PIN- Cotter hair

$

$

Not available

14

$

$

Currently unavailable

15

Homelite JA445775

NUT- Hex flange 5/16-18
(Superseded to UP06674)

$

$

Not available

16

Homelite JA995410

CLAMP- Cable (double)
(Superseded to JA994274)

$

$

Not available

17

Homelite JA359102

BOLT- Sq. neck

$

$

Not available

18

Homelite JA339550

KNOB- Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex locking 5/16-18
(Superseded to 81018)

$

$

Not available

20

Homelite JA444718

NUT- Hex locking 5/16-18

$

$

Not available

21

Homelite JA443102

NUT- Hex
(Superseded to JA993730)

$

$

Not available

22

Homelite JA991903

CONTROL- Manual start
(Superseded to JA993006)

$

$

Currently unavailable

23

Homelite JA444708

NUT- Hex locking 1/4-20

$

$

Currently unavailable

24

Homelite JA991904

CONTROL- Throttle

$

$

Not available

25

$

$

Currently unavailable

26

Homelite JA991898

CABLE- Traction

Note: Not used on this product

$

$

Currently unavailable

27

Homelite JA991065

CLAMP

Note: Not used on this product

$

$

Not available

28

Homelite JA409908

SCREW- Hex hd. (1/4-20 x 5/8")

Note: Not used on this product

$3.99

$

Usually ships in 3-7 days

0

Homelite JA473168

TIE- Secure

Note: (not shown)

$

$

Currently unavailable
