HMB 21 P4C (UT-30121) - Homelite 21" Maxi Bagger Walk-Behind Mower Gear Reducer Parts Diagram

21" Maxi Bagger Walk-Behind Mower

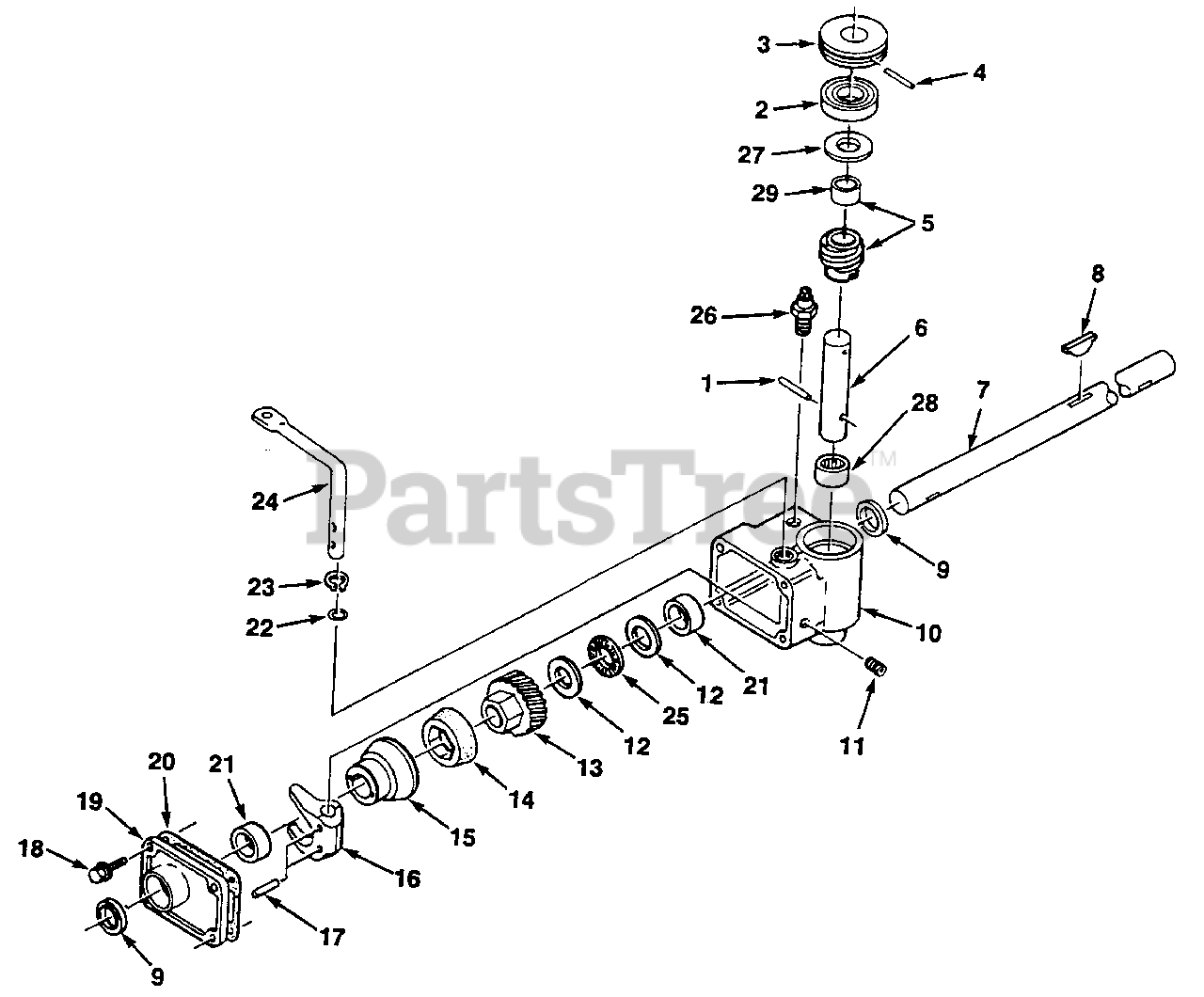

Gear Reducer Parts Diagram

  • Title

1

Homelite JA461415

PIN- (3/16 x 7/8")

$

$

Not available

2

Homelite JA990499

BEARING

$

$

Not available

3

Homelite JA991229

PULLEY
(Superseded to UP06660)

$33.99

$

Usually ships in 3-7 days

0

4

Homelite JA461414

PIN- (3/32 x 3/4")

$

$

Currently unavailable

5

Homelite JA990642

WORM & SPACER-

Note: (Incl. #29)

$

$

Currently unavailable

6

Homelite JA990525

SHAFT- Worm

$

$

Currently unavailable

7

Homelite JA992980

SHAFT- Drive

$

$

Currently unavailable

8

Homelite JA463101

KEY- (1/2-1/8")

$1.99

$

In Stock, only 1 left!

0

9

Homelite JA376110

SEAL

$15.99

$

In Stock, only 2 left!

0

10

Homelite JA990529

GEAR REDUCER HOUSING ASSY.

Note: (Includes #9 & #21)

$

$

Currently unavailable

11

Homelite JA472007

PLUG

$

$

Not available

12

Homelite JA990446

RACE- Bearing

$

$

Not available

13

Homelite JA992770

GEAR- Helical

$

$

Not available

14

Homelite JA992780

CONE- Friction

$

$

Currently unavailable

15

Homelite JA992800

DRUM- Clutch
(Superseded to JA990217)

$

$

Not available

16

Homelite JA990153

FORK- Shift

$

$

Not available

17

Homelite JA461330

PIN- (5/32 x 3/4")

$

$

Not available

18

Homelite JA408862

SCREW- (1/4-20 x 7/8")

$

$

Currently unavailable

19

Homelite JA990168

COVER- Gearbox

Note: (Incl. #9 & #21)

$

$

Currently unavailable

20

Homelite JA375948

GASKET
(Superseded to GP582047)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite JA992820

BUSHING- Sleeve

$

$

Not available

22

Homelite JA459037

O-Ring

$

$

Not available

23

Homelite JA458094

RING- Eaton

$

$

Not available

24

Homelite JA994110

LEVER- Shift

$

$

Not available

25

Homelite JA990447

BEARING- Thrust

$

$

Currently unavailable

26

Homelite JA990415

VENT

$

$

Not available

27

Homelite JA990463

WASHER

$

$

Not available

28

Homelite JA990527

BEARING- Needle
(Superseded to 58956)

$

$

Not available

29

Homelite JA990478

SPACER- Worm gear

$

$

Currently unavailable
