HMB 21 P42B (UT-30122) - Homelite 21" Maxi Bagger Walk-Behind Mower Grass Catcher Parts Diagram

21" Maxi Bagger Walk-Behind Mower

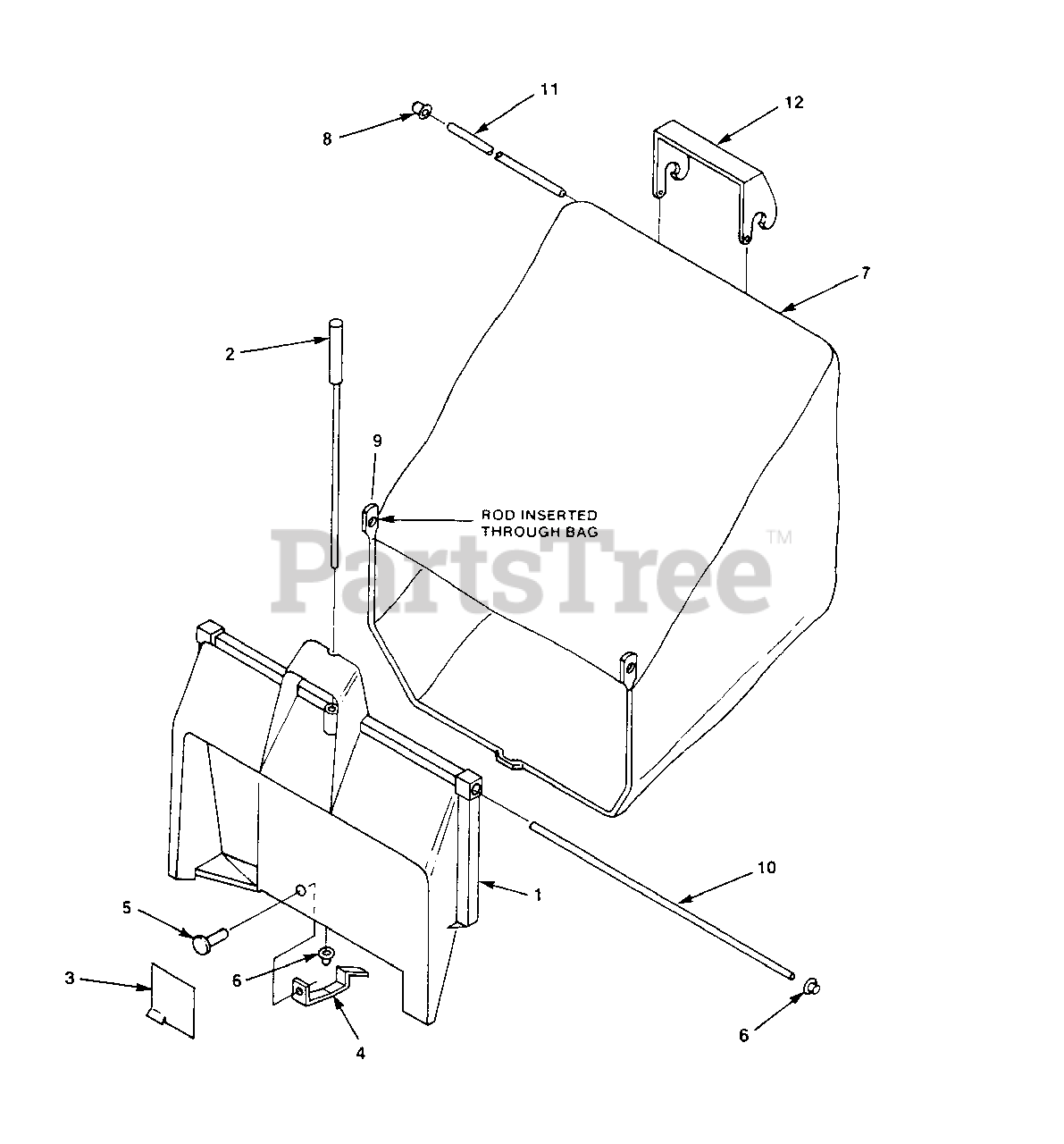

Grass Catcher Parts Diagram

  • Title
1

Homelite JA991789

ADAPTOR- Bag

Note: (Incl. #2 thru 6)

$

$

Currently unavailable

2

Homelite JA991788

ROD- Latch release

$

$

Not available

3

Homelite JA375660

DEFLECTOR

$

$

Currently unavailable

$

$

Currently unavailable

5

Homelite JA464845

RIVET- Pop 5/32 x 3/8"

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Homelite JA518759

CATCHER-GRASS

Note: (Incl.#6 & #8)

$

$

Currently unavailable

8

Homelite JA359179

END- Rod (Retainer Up-bag)

$

$

Currently unavailable

9

Homelite JA336651

ROD- ZP Bag support

$

$

Not available

10

Homelite JA359168

ROD- ZP Bag hinge

$

$

Currently unavailable

11

Homelite JA359169

ROD- ZP Upper bag

$

$

Not available

12

Homelite JA991786

HANDLE- Upper bag

$

$

Not available
