HMB 21 P4 (UT-30069) - Homelite 21" Maxi Bagger Walk-Behind Mower Gear Reducer Parts Diagram

21" Maxi Bagger Walk-Behind Mower

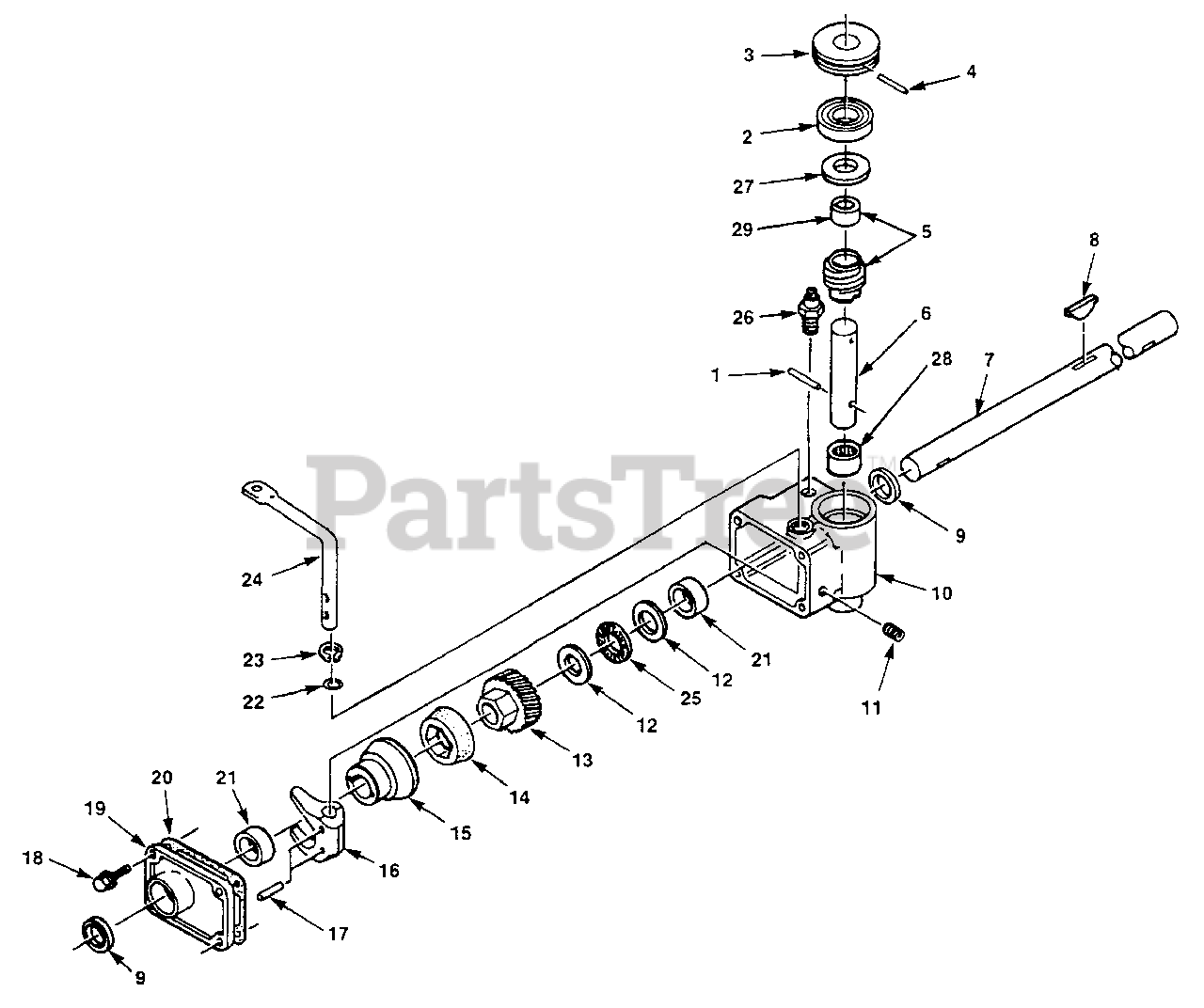

Gear Reducer Parts Diagram

  • Title

$

$

Not available

2

$

$

Not available

3

Homelite JA991229

PULLEY
(Superseded to UP06660)

$33.99

$

Usually ships in 3-7 days

0

$

$

Currently unavailable

5

Homelite JA990642

WORM & SPACER

Note: (Incl. #29)

$

$

Currently unavailable

6

Homelite JA990525

SHAFT- Worm

$

$

Currently unavailable

7

Homelite JA992980

SHAFT- Drive

$

$

Currently unavailable

$1.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 2 left!

0

10

Homelite JA990529

GEAR REDUCER HOUSING ASSY.

Note: (includes Index #9, 21, & 28)

$

$

Currently unavailable

$

$

Not available

12

Homelite JA990446

RACE- Bearing

$

$

Not available

13

Homelite JA992770

GEAR- Helical

$

$

Not available

14

Homelite JA992780

CONE- Friction

$

$

Currently unavailable

15

Homelite JA992800

DRUM- Clutch
(Superseded to JA990217)

$

$

Not available

16

Homelite JA990153

FORK- Shift

$

$

Not available

$

$

Not available

$

$

Currently unavailable

19

Homelite JA990168

COVER- Gearbox

Note: (Includes index #9 & 21)

$

$

Currently unavailable

20

Homelite JA375948

GASKET
(Superseded to GP582047)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite JA992820

BUSHING- Sleeve

$

$

Not available

22

$

$

Not available

$

$

Not available

24

Homelite JA994110

LEVER- Shift

$

$

Not available

25

Homelite JA990447

BEARING- Thrust

$

$

Currently unavailable

$

$

Not available

27

$

$

Not available

28

Homelite JA990527

BEARING- Needle
(Superseded to 58956)

$

$

Not available

29

$

$

Currently unavailable
