HMB 21 P4-I (UT-30528-B) - Homelite 21" Walk-Behind Mower Mower & Drive Parts Diagram

21" Walk-Behind Mower

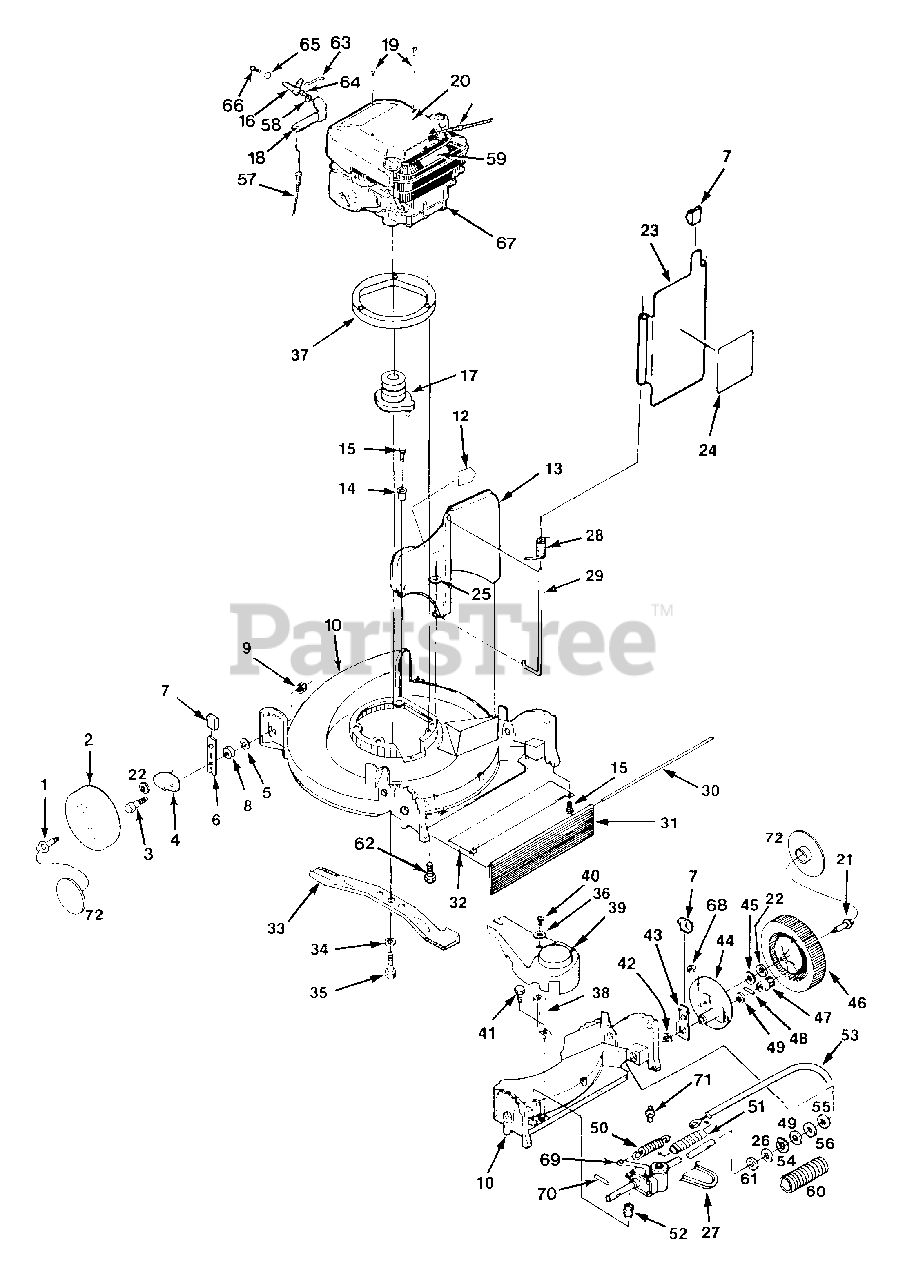

Mower & Drive Parts Diagram

  • Title

1

Homelite GP166741

BOLT - Shldr 3/8-16 x 2

$

$

Currently unavailable

2

Homelite GP043250

WHEEL - Front

$

$

Currently unavailable

3

Homelite GP166730

BOLT - Shldr 5/16-18 x 1 3/4

$

$

Currently unavailable

4

Homelite GP023895

ARM - Height adj

$

$

Currently unavailable

5

Homelite JA453009

WASHER - Flat 5/16
(Superseded to UP07173)

$

$

Not available

6

Homelite JA990087

SPRING - Index
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB - Index spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER - Index spring

$

$

Not available

9

Homelite JA445775

NUT - Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

10

Homelite GP023898

DECK - 21"

$

$

Currently unavailable

?11

Homelite JA990567

CLIP - rope stop

$

$

Not available

12

Homelite GP800074

DECAL - chute

$

$

Currently unavailable

13

Homelite GP115525

CHUTE - Discharge
(Superseded to JA994993)

$

$

Currently unavailable

14

Homelite JA473183

EYELET

$8.99

$

Usually ships in 3-7 days

0

15

Homelite JA408878

SCREW - (1/4-20 x 3/4")

$

$

Not available

16

Homelite GP023682

BELLCRANK

$

$

Currently unavailable

17

Homelite GP095214

ADAPTER - Blade

$

$

Not available

18

Homelite GP023815

THROTTLE BRACKET

$

$

Currently unavailable

19

Homelite GP036731

SCREW - #8-32 x 1-1/4 Phil Tap

$

$

Currently unavailable

20

Homelite GP036938

COVER - Engine

$

$

Currently unavailable

21

Homelite GP166743

BOLT - shldr 3/8-16 x 2

$

$

Currently unavailable

22

Homelite GP715607

WASHER - Bellville

$4.49

$

Usually ships in 3-7 days

0

23

Homelite GP023896

DOOR - Chute
(Superseded to JA994820)

$

$

Currently unavailable

24

Homelite GP800073

DECAL - Door

$

$

Currently unavailable

25

Homelite GP615690

WASHER - Flat (1/4")

$

$

Not available

26

Homelite JA328147

WASHER

$

$

Not available

27

Homelite JA993971

BELT - Drive

$

$

Currently unavailable

28

Homelite JA992947

SPRING - Door

$

$

Not available

29

Homelite JA359167

PIN - Hinge

$

$

Not available

30

Homelite JA359170

ROD - Drag flap

$

$

Currently unavailable

31

Homelite JA359257

FLAP - Drag

$

$

Currently unavailable

32

Homelite 03762

COVER - Rear

$

$

Not available

33

Homelite JA994796

BAR - Cutter 21"
(Superseded to GP589413)

$50.99

$

Usually ships in 3-7 days

0

34

Homelite GP156919

WASHER - Lock (3/8")

$

$

Currently unavailable

35

Homelite GP382902

BOLT (3/8-24 x 1 1/4")

$

$

Currently unavailable

36

Homelite GP151555

WASHER - Plain

$

$

Currently unavailable

37

Homelite JA994311

RING - Engine

$

$

Not available

38

Homelite 03735

SUPPORT - cover

$

$

Not available

39

Homelite JA994725

COVER - Drive

$

$

Currently unavailable

40

Homelite JA408879

SCREW - Rd hd phil (1/4-20 x 3/4")

$

$

Currently unavailable

41

Homelite JA409704

SCREW - Hex hd (10-16 x 1/2")

$

$

Not available

42

Homelite JA359141

SPACER - Hgt. Adj

$

$

Not available

43

Homelite JA991288

SPRING - Index

$

$

Not available

44

Homelite JA990074

DRIVE WHEEL SUPPORT
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER - Flat

$

$

Not available

46

Homelite GP043253

WHEEL - rear w/gear

$

$

Not available

47

Homelite JA994800

PINION (R.H.)

$

$

Not available

Homelite JA994801

PINION (L.H.)

$

$

Currently unavailable

48

Homelite JA994740

PIN

$

$

Currently unavailable

49

Homelite JA351077

WASHER - Flat

$

$

Not available

50

Homelite JA375748

SPRING - Traction cable

$

$

Not available

51

Homelite JA359270

COVER - Spring

$

$

Currently unavailable

52

Homelite JA994858

SPRING - Compression

$

$

Not available

53

Homelite GP053093

CABLE - Traction
(Superseded to UP06700)

$

$

Not available

54

Homelite JA458451

E-RING

$2.99

$

Usually ships in 3-7 days

0

55

Homelite JA454037

WASHER - Spring

$

$

Not available

56

Homelite JA353406

WASHER

$

$

Not available

57

Homelite GP053107

CONTROL - Throttle w/cable

$

$

Currently unavailable

58

Homelite GP094250

SPACER - stepped

$

$

Currently unavailable

59

Homelite 04443

DECAL - Danger

$10.99

$

Usually ships in 3-7 days

0

60

Homelite GP115462

COVER - Drive Shaft

$

$

Currently unavailable

61

Homelite JA990446

WASHER - Thrust

$

$

Not available

62

Homelite GP382892

SCREW - Hex 3/8-16 x 2 1/4

$

$

Not available

63

Homelite GP095532

THROTTLE LINK

$

$

Currently unavailable

64

Homelite GP157784

SCREW - #10-24 x 3/8" Hex Tap

$

$

Currently unavailable

65

Homelite GP159467

WASHER - 3/4" FLAT

$

$

Currently unavailable

66

Homelite GP380543

SCREW - #10-24 x 3/4" Hex Tap

$

$

Currently unavailable

67

Engine

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

68

Homelite GP156406

NUT - 3/8-16 Flg Lock

$

$

Not available

69

Homelite GP300014

TRANSMISSION

$

$

Currently unavailable

70

Homelite JA461361

ROLL PIN - 1/8 x 7/8

$

$

Not available

71

Homelite JA990415

VENT

$

$

Not available

72

Homelite GP043254

HUBCAP

$

$

Currently unavailable
