HM80-155163H - Tecumseh Engine Engine Parts List #1 Parts Diagram

Engine

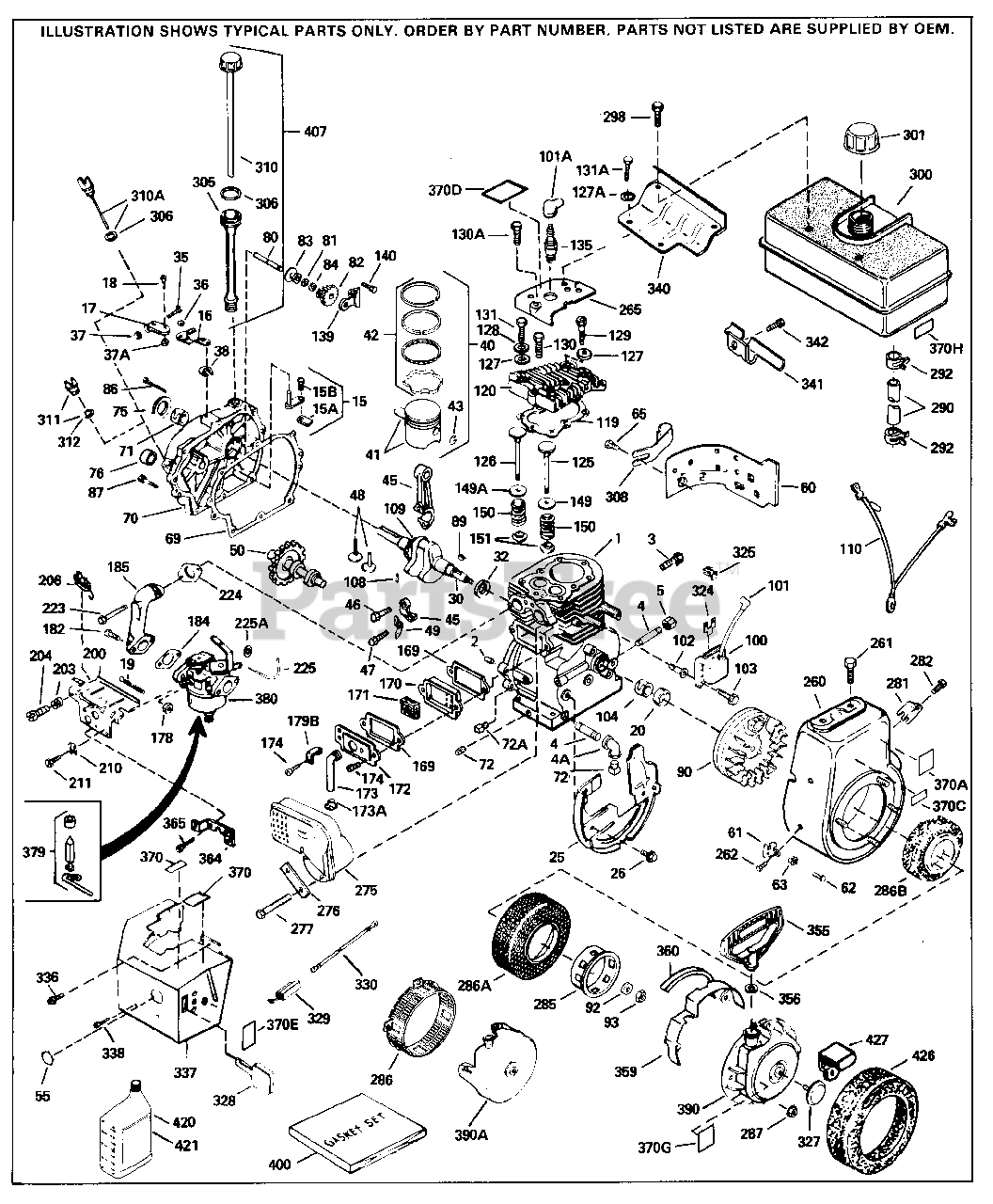

Engine Parts List #1 Parts Diagram

  • Title

1

Tecumseh 35385

"Cylinder Ass'y. (Incl. 2, 20, 72 & 72 A) (3-1/8" Bore) Bore)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

15B

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Rod Assy., Governor (Incl. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke, Governor

$1.99

$

In Stock, only 1 left!

0

16

Tecumseh 33454

Governor Lever Assy.
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 35326

Blower Housing Baffle
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

30

Tecumseh 35420A

Crankshaft

$169.99

$

Usually ships in 3-12 days

0

32

Tecumseh 33628

Washer, Thrust

$15.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Lock Washer #8

$1.99

$

In Stock, Qty 5

0

37A

Tecumseh 30322

Lock Nut, 8-32

$1.99

$

Usually ships in 3-12 days

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

45

Tecumseh 35373A

Connecting Rod Ass'y. (Incl.46,47,49)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

46

Tecumseh 650908

Bolt, Connecting rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

Bolt, Connecting rod
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 34034

Lifter, Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 35374

Oil Dipper

$1.99

$

In Stock, only 4 left!

0

50

Tecumseh 35375

Camshaft (MCR)

$

$

Not available

60

Tecumseh 33273A

Extension, Blower housing

$7.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 35262

* Gasket, Cylinder cover
(Superseded to 37342)

$11.99

$

In Stock, only 1 left!

0

70

Tecumseh 33626B

Cyl. Cover Incl. 71,74,75,80,175,176, 311,312
(Superseded to 33626C)

$152.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 33625

Seal, Oil

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 31845

Shaft, Mechanical governor
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 35378

Governor Gear Ass'y. (Incl. 81)

$3.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

89

Tecumseh 32589

Key, Flywheel

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611090

Flywheel

$166.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650880

Washer, Belleville

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Nut, Hex (5/8-18) (Add-on alternator)

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State Ignition
(Superseded to 35135B)

$62.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover, Spark plug (Use as required)

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Stud, Lamination mounting
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 34041A

* Gasket, Head
(Superseded to 34923A)

$7.99

$

Usually ships in 3-12 days

0

120

Tecumseh 34030A

Head, Cylinder
(Superseded to 34030B)

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 34035

Intake Valve (Std.) (Incl. 151)

$15.99

$

In Stock, only 1 left!

0

126

Tecumseh 34036

Intake Valve (1/32" OS) (Incl. 151)

$

$

Not available

127

Tecumseh 650691

Washer Use as req., but not w/6021A s crew

$1.99

$

Usually ships in 3-12 days

0

127A

Tecumseh 26073

Washer

$

$

Not available

127A

Tecumseh 650570

Washer, Flat (Use as required)

$

$

Not available

128

Tecumseh 650690

Washer, Belleville
(Superseded to 730324)

$9.99

$

In Stock, only 1 left!

0

129

Tecumseh 650727

Screw, 5/16-18 x 1-3/4" Use as requir ed

$3.99

$

In Stock, only 1 left!

0

130A

Tecumseh 6021A

Screw, 5/16-18 x 1-1/2" Use as requir ed, but do notuse with 650691 washer

$1.99

$

In Stock, only 3 left!

0

130

Tecumseh 650694A

Screw, 5/16-18 x 2" (Use as required)

$3.49

$

In Stock, Qty 20+

0

131

Tecumseh 650737

Screw, 1/4-20 x 1/2" Use as required

$1.99

$

In Stock, Qty 6

0

131

Tecumseh 650738

Screw, 1/4-20 x 5/8" Use as required

$3.99

$

In Stock, only 1 left!

0

131

Tecumseh 650802

Screw, 1/4-20 x 5/8" Use as required

$1.99

$

In Stock, Qty 5

0

131A

Tecumseh 650713

Screw, 5/16-18 x 5/8" Use as require d
(Superseded to 651055)

$1.99

$

In Stock, Qty 5

0

131A

Tecumseh 792028

Screw, 5/16-18 x 7/8" Use as require d

$4.49

$

In Stock, only 4 left!

0

135

Tecumseh 33636

Resistor Spark Plug - RJ17LM

$5.49

$

In Stock, Qty 12

0

139

Tecumseh 33369

Bracket, Governor gear

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

149A

Tecumseh 35862

Seal Assy., Intake valve

$9.49

$

Usually ships in 3-12 days

0

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Cap, Lower valve spring

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

* Gasket, Breather cover

$1.49

$

In Stock, Qty 8

0

170

Tecumseh 28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Breather Element

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Breather Tube

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

174

Tecumseh 650597

Screw, 10-24 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

178

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

179B

Tecumseh 30593

Clip, Primer line (Use as required)

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 30088A

Screw, 1/4-28 x 1"

$1.99

$

In Stock, only 4 left!

0

184

Tecumseh 33263

* Gasket, Carburetor

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 34707

Pipe, Intake

$33.99

$

Usually ships in 3-12 days

0

206

Tecumseh 610973

Terminal Assy. (Use as required)

$3.99

$

In Stock, Qty 5

0

223

Tecumseh 650378

Screw, Torx T-30, 5/16-18 x 1-1/8 "

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

* Gasket, Intake pipe

$5.99

$

In Stock, Qty 19

0

260

Tecumseh 33375D

Blower Housing (For electric starter)
(Superseded to 33375E)

$

$

Not available

261

Tecumseh 650788

Screw, 5/16-18 x 3/4" Use as require d

$1.99

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw, T-40, 5/16-24 x 21/32"

$1.99

$

In Stock, Qty 9

0

265

Tecumseh 33272B

Cover, Cylinder head
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

275C

Tecumseh 35824

Muffler (Optional quiet muffler)

$123.99

$

Usually ships in 3-12 days

0

275

Tecumseh 33280A

Muffler
(Superseded to 34185B)

$46.99

$

In Stock, only 1 left!

0

276

Tecumseh 31588

Plate, Muffler locking

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 650729

Screw, 5/16-18 x 3-3/16"

$1.99

$

In Stock, Qty 5

0

277A

Tecumseh 650696

Screw, 5/16-18x2-3/4" Used with 276A

$3.99

$

In Stock, only 2 left!

0

281

Tecumseh 33013

Cover, Starter bubble

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 32125

Cup, Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

286A

Tecumseh 35194

Screen, Starter

$

$

Currently unavailable

287

Tecumseh 29752

Nut & Lock Washer 1/4-28

$1.99

$

In Stock, only 1 left!

0

290

Tecumseh 29774

Fuel Line (8.62") req.)

$34.99

$

In Stock, Qty 6

0

290

Tecumseh 30705

Fuel Line (Braided 16")(41 cm) Use as req.

$16.99

$

In Stock, only 2 left!

0

290

Tecumseh 30962

Fuel Line (Braided 32")(81 cm) Use as req.

$30.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 34156A

Fuel Tank (Incl. 292 & 301) NOTE: The se tanks were builtwith different siz e fuel inlet openings. Tanks with the 1-3/16" I.D. opening use fuel cap 34 210. Tanks with the 1-1/2" I.D. openi ng use fuel cap 35355.

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 33032

Fuel Cap (Red 1-1/2" ID) (also availa ble in Packaged Part #740005B) (Red Plastic) (Spurt Resistant, Low Profil e) (1-3/16" I.D.)

$7.49

$

In Stock, only 1 left!

0

301

Tecumseh 34210

Fuel Cap (Red Plastic) (Spurt Resista nt, High Profile) (1-3/16" I.D)

$8.49

$

In Stock, Qty 12

0

301

Tecumseh 35355

Fuel Cap (Red)
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

301

Tecumseh 410144B

Fuel Cap (White Plastic)(Std) 1-1/2" I.D.
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

306

Tecumseh 29673

* Gasket, Oil fill

$1.99

$

In Stock, only 3 left!

0

310A

Tecumseh 35941

Dipstick (Incl. 306)

$5.49

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

325

Tecumseh 34246

Clip, Ground wire (Use as required)

$1.99

$

In Stock, only 1 left!

0

340

Tecumseh 34154

Plate, Fuel tank mounting

$

$

Not available

341

Tecumseh 34155

Bracket, Fuel tank mounting

$

$

Not available

342

Tecumseh 650561

Screw, 1/4-20 x 5/8"

$1.99

$

In Stock, only 2 left!

0

370A

Tecumseh 34686

Decal, Name
(Superseded to 34686A)

$

$

Not available

370J

Tecumseh 34870

Decal, Instruction Can be used on HM8 0 with diecast starter.

$

$

Currently unavailable

370

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

379

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

380

Tecumseh 632351

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page 188 for break down or Fiche18A-1, Grid F-5)

$113.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590479

Rewind Starter Refer to Division 5, S ection C, page 30 for breakdown or Fi che 18A-1, Grid G-5
(Superseded to 590685B)

$68.99

$

Usually ships in 3-12 days

0

400

Tecumseh 33279G

Gasket Set (Incl. items marked*)
(Superseded to 33279L)

$

$

Not available

408

Tecumseh 35570

Screen Seal Can be used on HM80 with stamped steel recoil starter

$

$

Not available

409

Tecumseh 35569

Spacer Can be used on HM80 with stamp ed steel recoil starter

$7.49

$

Usually ships in 3-12 days

0

410

Tecumseh 730573

Debris Screen Kit (Incl. 360, 370B, 3 87, 411 &413) (Can be used on HM80 wi th stamped steel recoil starter)

$

$

Not available

411

Tecumseh 35568

Debris Screen Can be used on HM80 wit h stamped steel recoil starter

$

$

Not available

413

Tecumseh 650907

Screw, 5/16-18 x 1-5/8" Can be used o n HM80 with stamped steel recoil star ter

$

$

Not available

420

Tecumseh 730225

SAE 30, 4-Cycle Engine Oil (Quart)
(Superseded to 730225A)

$8.99

$

In Stock, only 2 left!

0

421

Tecumseh 730226A

SAE 5W30 4-Cycle Engine Oil - Quart - Winter
(Superseded to 730226B)

$13.99

$

In Stock, Qty 9

0

425

Tecumseh 730572

Starter Muff Kit (Incl. 370J, 426 & 4 27) (Can be used on HM80 with di e cast starter)

$

$

Not available

429

Tecumseh 650868

Screw, 8-18 x 1-1/8" (3 Required) (Us e as required) (Refer to Mechanics Ha ndbook for installation instructions) .

$

$

Currently unavailable

430

Tecumseh 611077

Alternator, Add on (Use as required) (Refer to Mechanics Handbook for inst allation instructions).

$

$

Not available

431

Tecumseh 590609

Centering tube (Use with engines equi pped with die cast aluminum starter)( Use as required) (Refer to Mechanics Handbook for installation instruction s)

$

$

Currently unavailable

431

Tecumseh 590610

Centering tube (Use as required) (Ref er to Mechanics Handbook for installa tion instructions).

$

$

Not available

432

Tecumseh 611078

A.C. Lighting Connector (Use as requi red) (Refer to Mechanics Handbook for installation instructions).

$

$

Currently unavailable

432

Tecumseh 611079

D.C. Charging Connector (Use as requi red) (Refer to Mechanics Handbook for installation instructions).

$

$

Currently unavailable

433

Tecumseh 590611

Alternator Shaft (4.00") (Use with en gines equipped with cast aluminum sta rter)(Use as required) (Refer to Mech anics Handbook for installation instr uctions).

$

$

Not available

433

Tecumseh 590636

Alternator Shaft (Use with engines e quipped with stamped steel starter)(U se as required) (Refer to Mechanics H andbook for installation instructions ).

$

$

Currently unavailable
