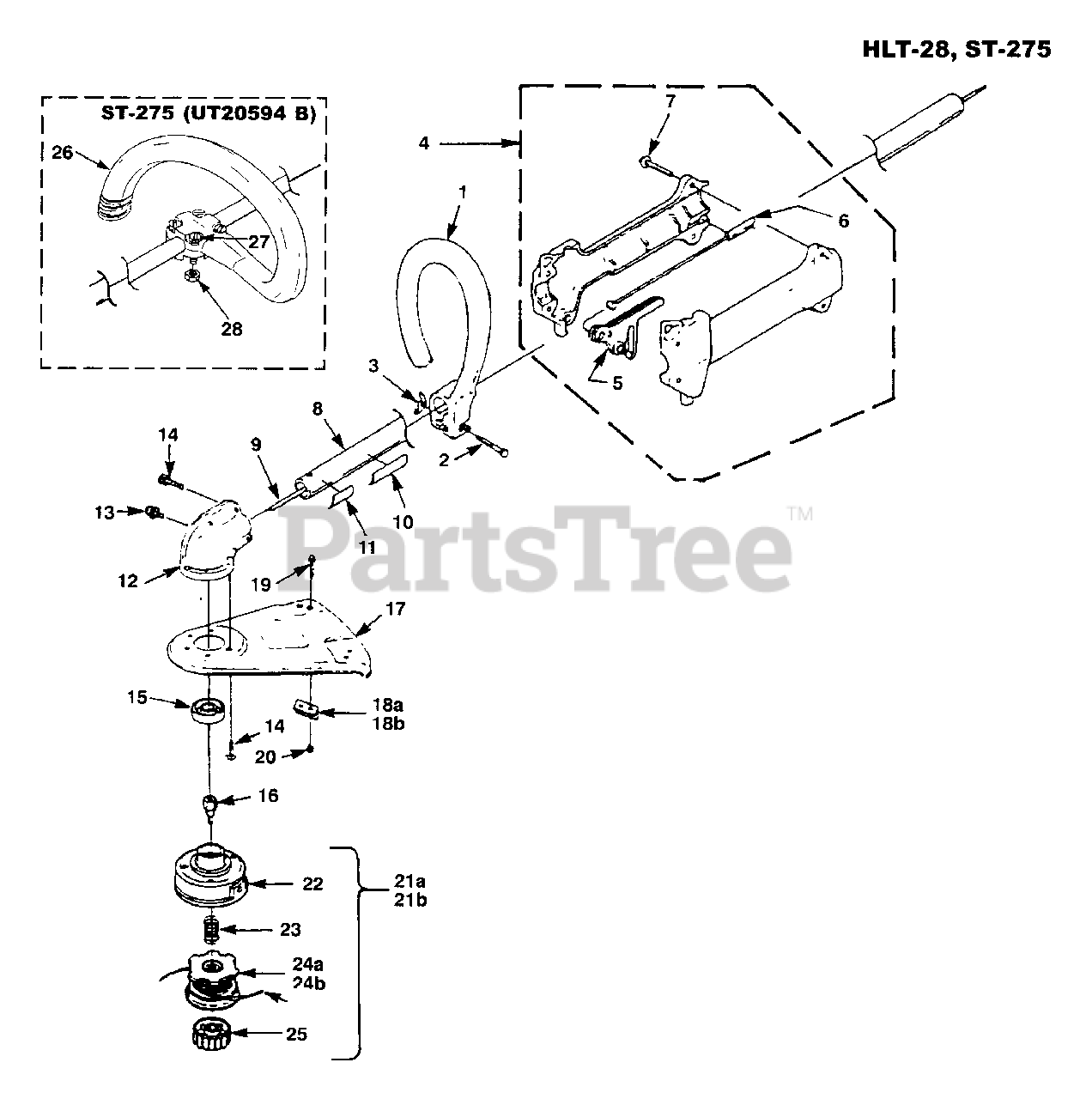

HLT 28 (UT-20595-C) - Homelite String Trimmer Boom, Handles & Head Parts Diagram

String Trimmer

Boom, Handles & Head Parts Diagram

  • Title

1

Homelite A04709

HANDLE KIT - Front Loop

$

$

Not available

2

Homelite 80295

SCREW - Hex Hd (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 93992

NUT - Wing (1/4-20)

Note: Torque Specs. 5-30 In/Lbs, 6-3.4 Nm

$

$

Not available

4

Homelite A00101A

HANDLE GRIP ASSEMBLY

$

$

Currently unavailable

5

Homelite 08833

TRIGGER
(Superseded to UP04558)

$

$

Not available

6

Homelite A03006

CABLE - Throttle

$

$

Not available

7

Homelite 82368

SCREW - Plastite (8 X 3/4")
(Superseded to PS00055)

Note: Torque Specs. 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

8

Homelite A04379A

HOUSING - Drive Shaft
(Superseded to UP04337)

$89.99

$

Usually ships in 3-7 days

0

9

Homelite 98818

SHAFT - Flexible

$

$

Not available

10

Homelite 04458

DECAL - Staring Instructions
(Superseded to UP04130)

$

$

Not available

11

Homelite 04679

DECAL - Warning
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite A04336C

GEAR HEAD

$

$

Currently unavailable

13

Homelite 88049

SCREW - Hex Hd (10-24 X 1/2")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

14

Homelite 82593

SCREW - Hex Hd (10-24 X 5/8")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$4.99

$

Usually ships in 3-7 days

0

15

Homelite 04168A

WASHER - Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 04355

ADAPTOR - Shaft

$19.99

$

Usually ships in 3-7 days

0

17

Homelite A04683A

GRASS DEFLECTOR KIT

$

$

Not available

18a

Homelite 07076

BLADE - Cut Off

$

$

Not available

18b

Homelite 07128

BLADE - Cut Off

$

$

Not available

19

Homelite 82450

SCREW - Mach Hex Hd (10-24 X 3/8")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm, Red 262 Required Loctite

$

$

Not available

20

Homelite 81208

NUT - Lock Hex (10-24)

$

$

Not available

21a

Homelite DA03001A

STRINGHEAD COMPLETE (.080" Line)
(Superseded to UP04408A)

Note: ST275

$

$

Not available

21b

Homelite DA04591A

STRINGHEAD COMPLETE (.095" Line)
(Superseded to DA04591AA)

Note: HLT-28

$103.99

$

In Stock, only 1 left!

0

22

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

Note: Dual Line

$

$

Not available

23

Homelite 06713

SPRING - Compression

$1.99

$

In Stock, only 3 left!

0

24a

Homelite DA98912E

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

Note: ST275

$

$

Not available

24b

Homelite DA02598C

SPOOL & STRING (.095" Line)
(Superseded to UP00147)

Note: HLT-28

$103.99

$

In Stock, only 1 left!

0

25

Homelite DA98866A

RETAINER - Spool
(Superseded to UP04273A)

Note: R.H. Thread, Black

$

$

Not available

26

Homelite A07137A

FRONT HANDLE ("G")

Note: UT20594 B

$

$

Not available

27

Homelite 82605

SCREW - Hex Hd (10-24 X 1")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

28

Homelite 81208

NUT - Hex (10-24)

$

$

Not available
