HLT 17 C (UT-20596-B) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

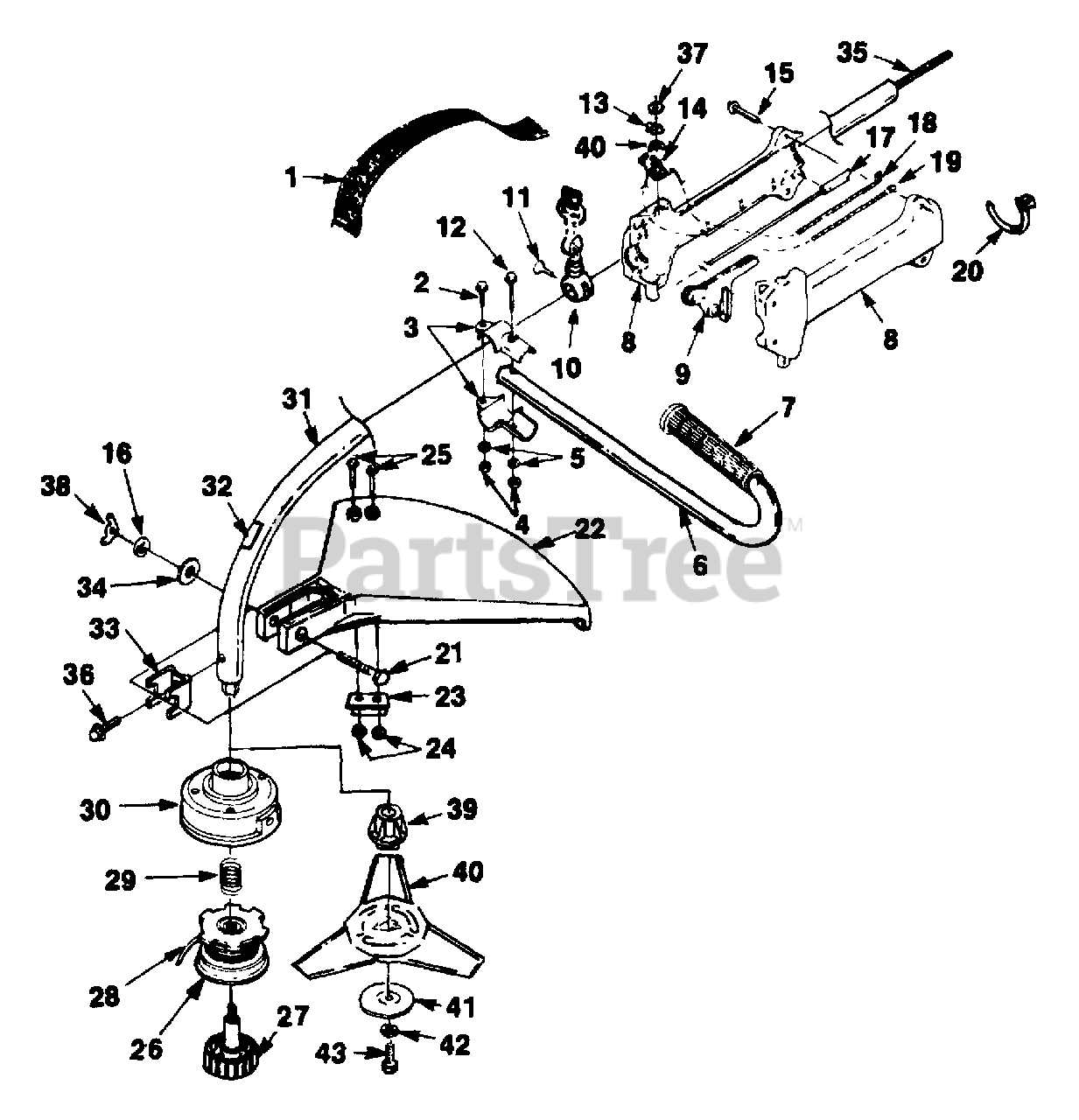

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/CONNECTOR

$

$

Currently unavailable

2

Homelite 88078

SCREW (1/4-20 X 7/8")

$

$

Not available

3

Homelite 00422

CLAMP-Handle Bar
(Superseded to 099075001007)

$1.49

$

In Stock, only 1 left!

0

4

Homelite 81267

NUT (1/4-20)

$

$

Not available

5

Homelite 83061

WASHER (1/4")

$

$

Not available

6

Homelite A02951

HANDLE BAR

$

$

Currently unavailable

7

Homelite 94474B

GRIP

$

$

Not available

8

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

9

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

10

Homelite A94442

BRACKET-Hanger

$18.99

$

Usually ships in 3-7 days

0

11

Homelite 82260

SCREW-Thumb

$

$

Not available

12

Homelite 88071

SCREW (1/4-20 X 1 1/2")

$

$

Not available

13

Homelite 95231

PLATE-Indicating
(Superseded to UP04266)

$

$

Not available

14

Homelite 93653

SWITCH-Toggle
(Superseded to UP04261)

$

$

Not available

15

Homelite 82368

SCREW-Plastite (#8 X 3/4")
(Superseded to PS00055)

$

$

Not available

16

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

17

Homelite A03006

CABLE-Throttle

$

$

Not available

18

Homelite A03912

LEAD-Electrical
(Superseded to UP04534)

$

$

Not available

19

Homelite A98919A

LEAD-Ground
(Superseded to UP04274)

$

$

Not available

20

Homelite 46840

CABLE-Tie

$

$

Not available

21

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

22

Homelite 02610

DEFLECTOR-Grass
(Superseded to UP06572A)

$

$

Not available

23

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

$

$

Not available

24

Homelite 81261

NUT (10-24)

$

$

Not available

25

Homelite 82531

SCREW-Mach Hex Hd (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

26

Homelite DA02598A

SPOOL & STRING

$

$

Currently unavailable

27

Homelite A02781

SPOOL RETAINER

$17.99

$

Usually ships in 3-7 days

0

28

Homelite 0395903

LINE-Replacement (.095 dia)
(Superseded to D06514)

$

$

Not available

29

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

30

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

31

Homelite A02720

HOUSING-Driveshaft
(Superseded to UP00710)

$

$

Not available

32

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

33

Homelite 98853

CLAMP
(Superseded to 07928)

$

$

Not available

34

Homelite 84006

WASHER-Flat

$

$

Not available

35

Homelite 98816

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

36

Homelite 82541

SCREW-Thread Forming

$1.99

$

In Stock, only 3 left!

0

37

Homelite 72084A1

NUT-Toggle Switch
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

38

Homelite 93992

NUT-Wing

$

$

Not available

39

Homelite 02617

ADAPTOR-Blade

$

$

Not available

40

Homelite DA02616A

TRI-ARC BLADE

$

$

Currently unavailable

41

Homelite 00580

WASHER-Cupped

$

$

Not available

42

Homelite 83030

WASHER-Lock

$

$

Not available

43

Homelite 80085

SCREW-Cap Hex Hd

$2.49

$

Usually ships in 3-7 days

0
