HLT 15 (UT-20602-B) - Homelite String Trimmer Ignition - Rotor - Starter - Clutch Parts Diagram

String Trimmer

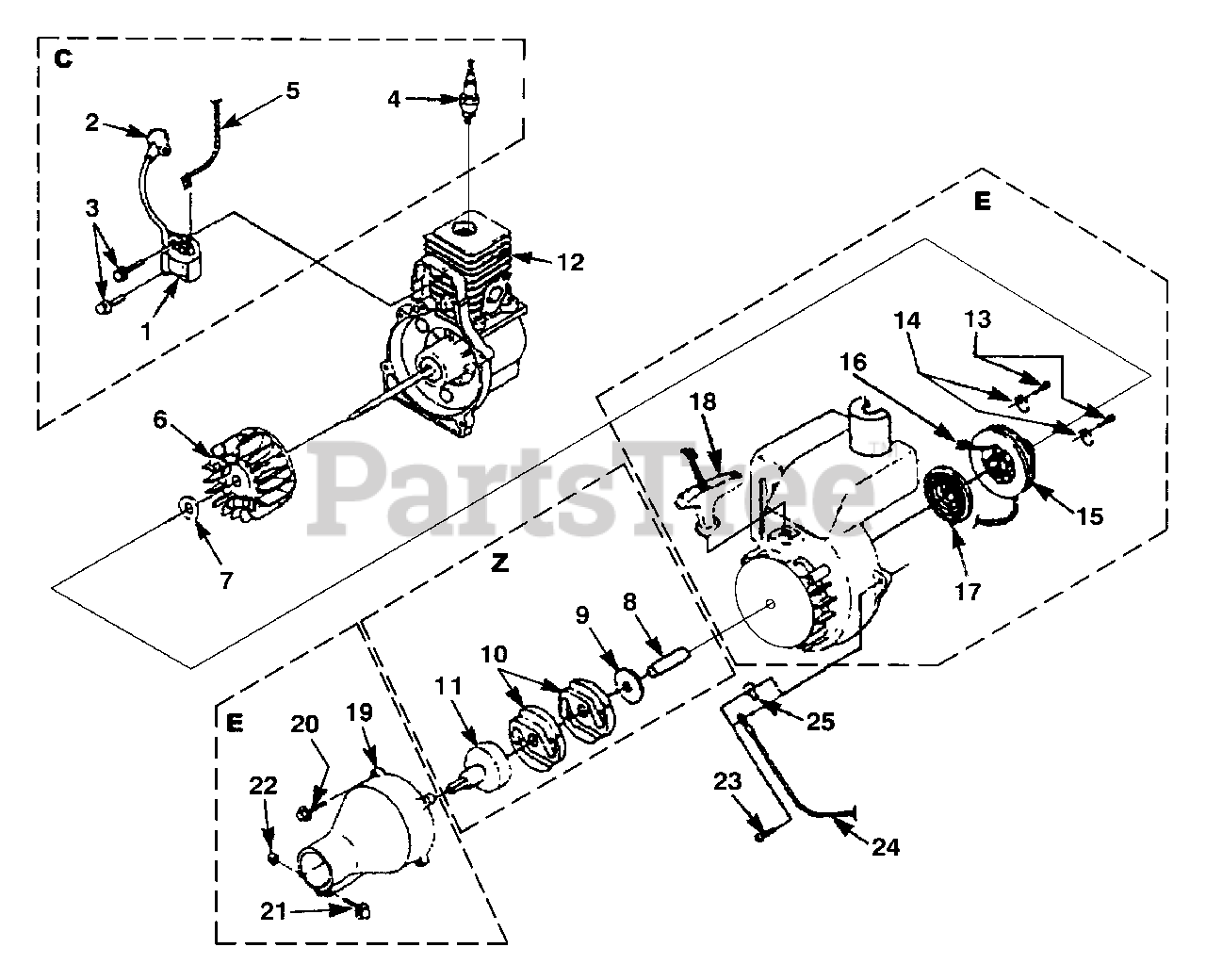

Ignition - Rotor - Starter - Clutch Parts Diagram

  • Title

C

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

$

$

Not available

1

Homelite 94711CS

MODULE - Ignition

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

$

$

Not available

3

Homelite 82540

SCREW - Taptite (8-32 X 1")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm, Blue 242 Required Loctite

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

Note: Torque Specs. 120-180 In/Lbs, 13.6-20.3 Nm

$3.49

$

In Stock, only 3 left!

0

5

Homelite A00681

LEAD - Electrical

$

$

Not available

6

Homelite A04158S

ROTOR KIT
(Superseded to UP03856A)

Note: ST-185BC, GST-BC

$

$

Not available

7

Homelite 95479A

WASHER - Flat

$

$

Not available

8

Homelite 035661

SPACER
(Superseded to PS035661)

Note: Clutch Models

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 98795A

CONNECTOR - Drive

$

$

Not available

Z

Homelite A04655

CLUTCH AND DRUM KIT

Note: ST-285BC, ST-385BC, HBC-18, HBC-30

$

$

Currently unavailable

9

Homelite 98929A

WASHER - Flat
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

10

Homelite 00242

CLUTCH

Note: ST-185BC, GST-BC

$

$

Not available

10

CLUTCH

Note: ST-285BC, ST-385BC, HBC 18, HBC 30

$

$

Not available

11

Homelite A03485A

CONNECTOR & DRUM
(Superseded to UP04133)

Note: ST-285BC, ST-385BC, HBC-18, HBC-30

$41.99

$

Usually ships in 3-7 days

0

12

SHORT BLOCK

Note: See "Engine Internal" illustration and parts list, items 1A, 1B.

$

$

Not available

E

Homelite A04638C

COMPLETE STARTER ASSEMBLY

$

$

Not available

13

Homelite 82541

SCREW - Plastite (#10-1/2")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$1.99

$

In Stock, only 3 left!

0

14

Homelite 98791

BRACKET - Retaining

$

$

Not available

15

Homelite 98770A

PULLEY - Starter

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 9789902

ROPE - Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 4 left!

0

18

Homelite 02264

GRIP - Starter
(Superseded to UP03832)

$

$

Not available

19

Homelite A02396A

TUBE ADAPTER

$

$

Currently unavailable

20

Homelite 88052

SCREW - Hex Hd (10-24 X 7/8")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 96624

SCREW - Sems Hex Hd (10-24 X 1-1/8")

$

$

Not available

22

Homelite 81208

NUT (10-24)

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

23

Homelite 82538

SCREW - Taptite (10-24 X 3/4")

Note: Torque Specs. 55-60 In/Lbs, 6.2-6.8 Nm

$1.99

$

Usually ships in 3-7 days

0

24

Homelite A98919A

LEAD - Ground
(Superseded to UP04274)

$

$

Not available

25

Homelite 02851

TERMINAL - Male

$

$

Not available
