HLM 140 SP - Homelite 45cm Walk-Behind Mower Self-Propelled Mower Parts Diagram

45cm Walk-Behind Mower

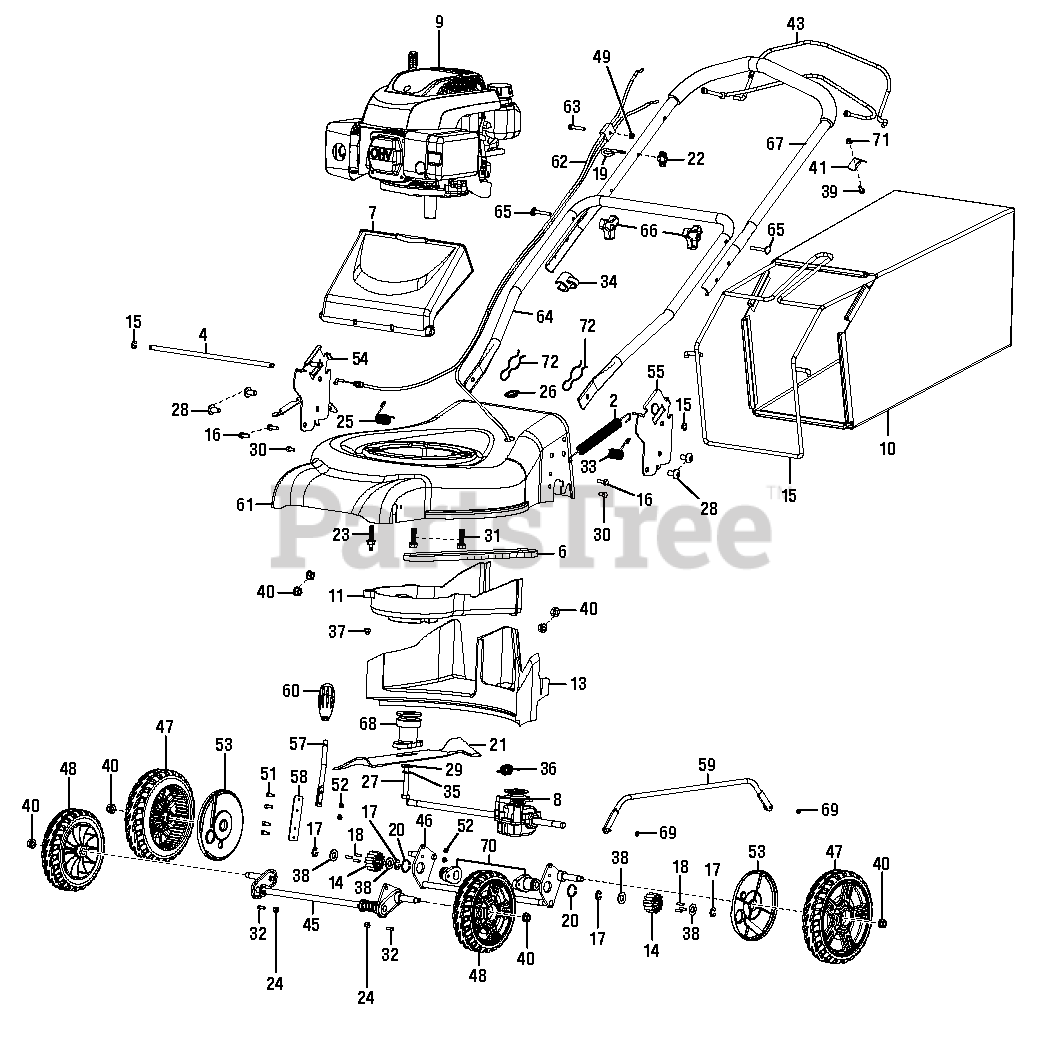

Self-Propelled Mower Parts Diagram

  • Title

2

Homelite 099960001054

Spring

$

$

Currently unavailable

3

Homelite 099960001090

Bag Frame

$

$

Currently unavailable

4

Homelite 099960001053

Door Hinge Rod

$

$

Currently unavailable

6

Homelite 099960001088

Drive Belt

$

$

Currently unavailable

7

Homelite 099960001089

Rear Door

$

$

Currently unavailable

8

Homelite 099960001098

Transmission

$

$

Currently unavailable

9

Homelite 099960001091

Engine (140cc OHV)

$

$

Currently unavailable

10

Homelite 099960001069

Grass Catcher

$

$

Currently unavailable

11

Homelite 099960001097

Belt Guard

$

$

Currently unavailable

12

Homelite 099960001038

Wing Nut

$

$

Currently unavailable

13

Homelite 099960001095

Rear Baffle

$

$

Currently unavailable

14

Homelite 099960001070

Pinion Gear

$

$

Currently unavailable

15

Homelite 099960001003

Door Hinge E-Ring

$

$

Currently unavailable

16

Homelite 099960001034

Screw (1/4 in. x 3/4 in., Hex Hd.)

$

$

Currently unavailable

17

Homelite 099960001033

Pinion E-Ring

$

$

Currently unavailable

18

Homelite 099960001055

Dowel Pin

$

$

Currently unavailable

19

Homelite 099960001035

Eye Bolt

$

$

Currently unavailable

20

Homelite 099960001004

Retaining Ring (1 in.)

$

$

Currently unavailable

21

Homelite 099960001071

Mower Blade (18 in.)

$

$

Currently unavailable

23

Homelite 099960001044

Engine Bolt, 2 End

$

$

Currently unavailable

24

Homelite 099960001059

Lock Nut (#10)

$

$

Currently unavailable

25

Homelite 099960001037

Door Spring (RH)

$

$

Currently unavailable

26

Homelite 099960001056

Grommett

$

$

Currently unavailable

27

Homelite 099960001057

Blade Bolt (3/8-24 x 2.5 in.)

$

$

Currently unavailable

28

Homelite 099960001039

Socket Screw (M10, Button Hd.)

$

$

Currently unavailable

29

Homelite 099960001042

Washer

$

$

Currently unavailable

30

Homelite 099960001058

Screw (M6 x 13 mm, Hex Hd.)

$

$

Currently unavailable

31

Homelite 099960001043

Engine Bolt

$

$

Currently unavailable

32

Homelite 099960001060

Screw (#10 x 1/2 in.)

$

$

Currently unavailable

33

Homelite 099960001036

Door Spring (LH)

$

$

Currently unavailable

34

Homelite 099960001040

Cable Clamp

$

$

Currently unavailable

35

Homelite 099960001041

Lock Washer (3/8 in.)

$

$

Currently unavailable

36

Homelite 099960001005

Tension Spring

$

$

Currently unavailable

37

Homelite 099960001006

Acorn Nut

$

$

Currently unavailable

38

Homelite 099960001045

Seal Washer

$

$

Currently unavailable

39

Homelite 099960001007

Bolt (M5 x 30 mm)

$

$

Currently unavailable

40

Homelite 099960001072

Nut (M10)

$

$

Currently unavailable

41

Homelite 099960001061

Bail Stop

$

$

Currently unavailable

43

Homelite 099960001062

Bail Drive

$

$

Currently unavailable

45

Homelite 099960001015

Front Axle Assembly

$

$

Currently unavailable

46

Homelite 099960001010

Rear Torque Assembly

$

$

Currently unavailable

47

Homelite 099960001084

Drive Wheel Assembly

$

$

Currently unavailable

48

Homelite 099960001073

Wheel Assembly (7 in.)

$

$

Currently unavailable

49

Homelite 099960001001

Flange Nut (M6)

$

$

Currently unavailable

51

Homelite 099960001009

Screw (M5 x 13 mm, Socket Hd. Cap)

$

$

Currently unavailable

52

Homelite 099960001032

Flange Nut (M5)

$

$

Currently unavailable

53

Homelite 099960001083

Wheel Dust Cover

$

$

Currently unavailable

54

Homelite 099960001046

Handle Bracket Assembly (RH)

$

$

Currently unavailable

55

Homelite 099960001024

Handle Bracket Assembly (LH)

$

$

Currently unavailable

57

Homelite 099960001050

Handle Adjustment Rod

$

$

Currently unavailable

58

Homelite 099960001049

Handle Adjustment Plate

$

$

Currently unavailable

59

Homelite 099960001063

Height Adjustment Assembly

$

$

Currently unavailable

60

Homelite 099960001027

Height Adjustment Knob

$

$

Currently unavailable

61

Homelite 099960001028

Deck Assembly (45 cm)

$

$

Currently unavailable

62

Homelite 099960001031

Cable Mzr. Drive Assembly

$

$

Currently unavailable

63

Homelite 099960001002

Bolt (M6 x 35 mm, Flange Head)

$

$

Currently unavailable

64

Homelite 099960001066

Lower Handle

$

$

Currently unavailable

65

Homelite 099960001096

Square Handle Screw

$

$

Currently unavailable

66

Homelite 099960001052

Handle Knob

$

$

Currently unavailable

67

Homelite 099960001076

Upper Handle Assembly

$

$

Currently unavailable

68

Homelite 099960001080

Blade Adapter Assembly

$

$

Currently unavailable

69

Homelite 099960001008

Flange Nut (M5)

$

$

Currently unavailable

70

Homelite 099960001099

Axle Bushing Assembly

$

$

Currently unavailable

71

Homelite 099960001008

Flange Nut (M5)

$

$

Currently unavailable

72

Homelite 099960001100

Handle Clip

$

$

Currently unavailable

Homelite 987000494

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
