HLE 5500 (UT-03685) - Homelite Generator Engine & Frame Parts Diagram

Generator

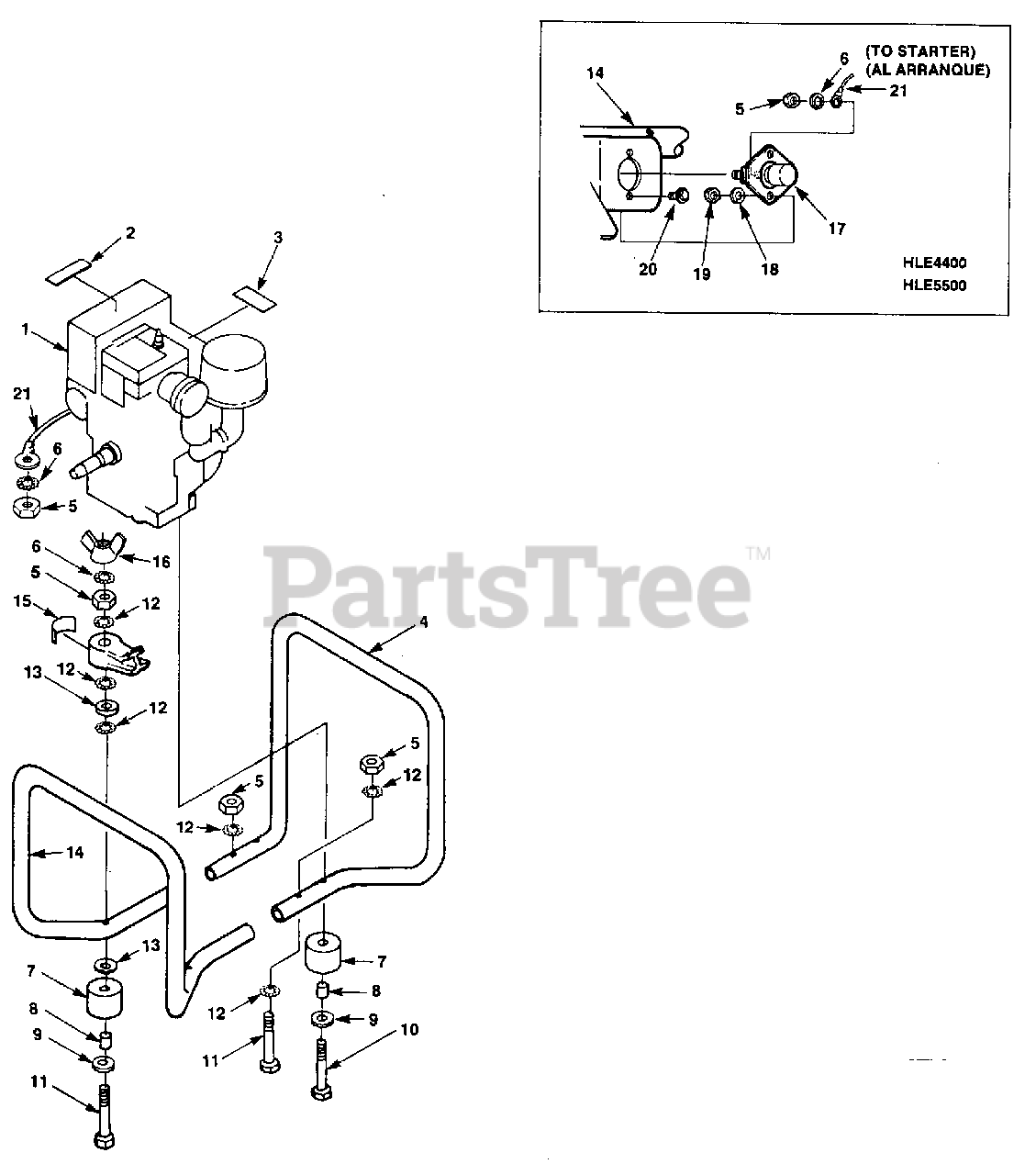

Engine & Frame Parts Diagram

  • Title

1

ENGINE

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropiate dealer in your area.

$

$

Not available

2

Homelite 49613

DECAL- Warning

$

$

Not available

3

Homelite 49598

DECAL- Caution

$

$

Not available

4

Homelite 020451

MEMBER- Frame (Engine)

$

$

Not available

5

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

6

Homelite 83081

WASHER- Locking (5/16")

$

$

Not available

7

Homelite 48789

FOOT

$

$

Not available

8

Homelite 49733

SPACER- Foot

$

$

Not available

9

Homelite 84046

WASHER- Flat (5/16")

$

$

Not available

10

Homelite 82529

SCREW- Cap hex hd (Gen & Carburetor Side)

$

$

Not available

Homelite 82530

SCREW- Cap hex hd. (Engine Side)

$

$

Not available

11

Homelite JA400200

BOLT- Engine (Rear)

$

$

Not available

12

Homelite 83033

WASHER- Lock ext./int.
(Superseded to 83081)

$

$

Not available

13

Homelite 84058

WASHER- Flat (5/16")

$

$

Not available

14

Homelite A021661

MEMBER & STARTER BRACKET

$

$

Currently unavailable

15

Homelite 49490

DECAL- Ground

$

$

Not available

16

Homelite 81015

NUT- Wing- (5/16-18)

$

$

Not available

17

Homelite 49705

SWITCH- Starter
(Superseded to UP03487)

$

$

Not available

18

Homelite 83009

WASHER

$8.49

$

Usually ships in 3-7 days

0

19

Homelite 81242

NUT

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 82477

SCREW- Hex hd
(Superseded to UP03402)

$

$

Not available

21

Homelite JA376123

CABLE

$

$

Currently unavailable
