HL 80835 - Homelite Gasoline Pressure Washer General Assembly (Part 1) Parts Diagram

Gasoline Pressure Washer

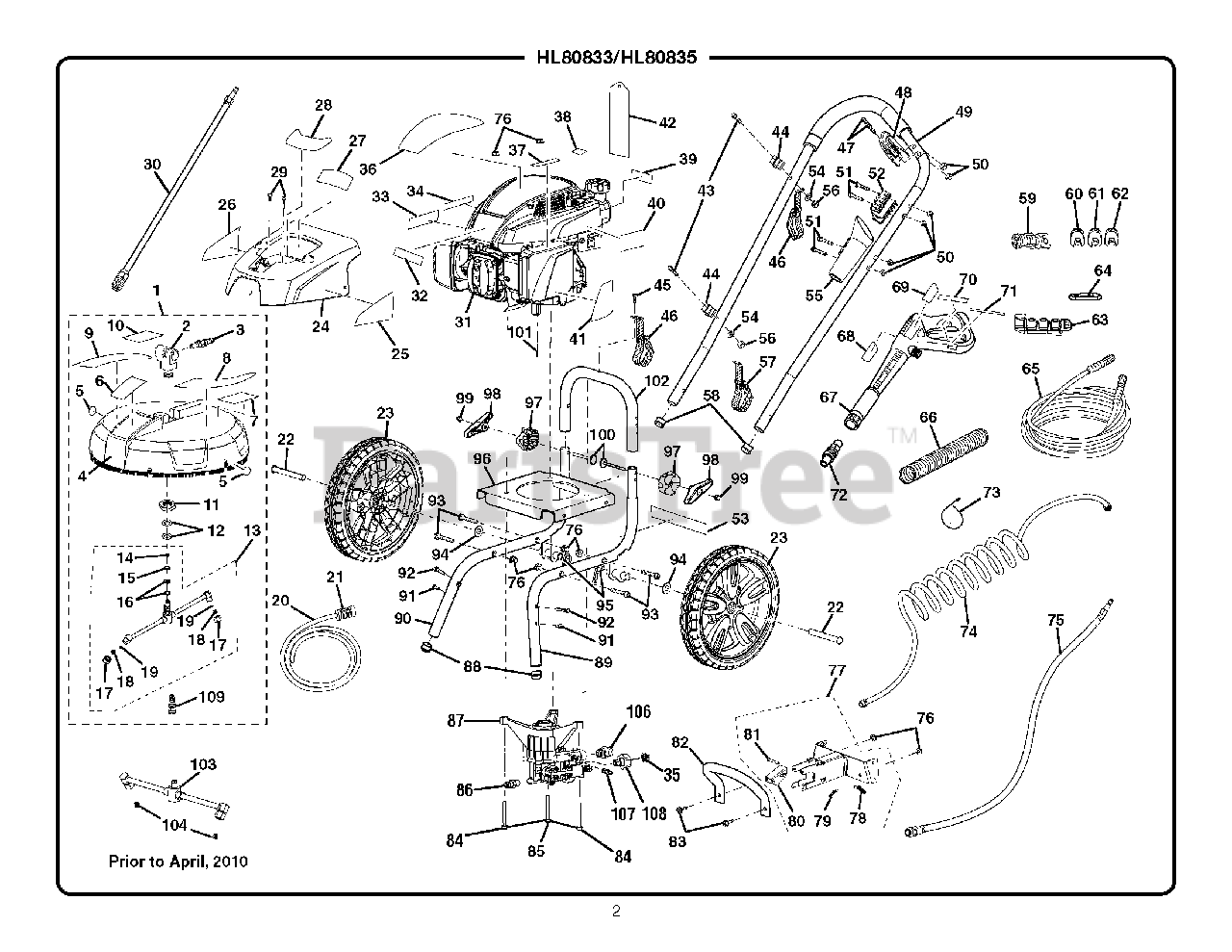

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 308999020

Deck Assembly
(Superseded to 308999011)

Note: (Inc. Key Nos. 2-19 And 109)

$

$

Not available

2

Homelite 308998001

Deck Pivot Assembly

$

$

Not available

3

Homelite 678557001

1/8 Quick Connect (BSPP)

$11.99

$

In Stock, only 1 left!

0

4

Homelite 310709005

Deck w/Brush Assembly
(Superseded to 308471015)

$

$

Not available

5

Homelite 940507002

No Hands/Feet Label

$

$

Not available

6

Homelite 948034002

Surface Cleaner Label

$

$

Currently unavailable

7

Homelite 940707024

Deck Danger Label (FR)

$

$

Not available

8

Homelite 940792004

Deck Pressure Washer Label

$

$

Not available

9

Homelite 940705019

Deck Logo Label

$

$

Not available

10

Homelite 940654091

Deck Danger Label

$

$

Not available

11

Homelite 678635001

Nut (M22)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 678889001

Washer (D12.2 x D22 x .8t)

$2.49

$

In Stock, Qty 12

0

13

Homelite 308996007

Deck Swivel w/Nozzle Assembly

Note: (Inc. Key Nos. 14-19)

$

$

Not available

14

Homelite 561571002

O-Ring (4.5 x 1.8)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 518746001

Washer (D17.9 x D13.7 x 1.5t)

$1.99

$

In Stock, only 3 left!

0

16

Homelite 518747001

Washer (D17.9 x D11.1 x 2.9t)

$1.99

$

In Stock, only 4 left!

0

17

Homelite 678727003

Nozzle Nut

$

$

Not available

18

Homelite 678548008

Nozzle w/015 Jet (1/8 NPT)
(Superseded to 678548001)

$18.99

$

Usually ships in 3-7 days

0

19

Homelite 570455001

O-Ring (4.5 x 1.8)

$

$

Not available

20

Homelite 561399003

Injection Hose

$2.99

$

In Stock, only 2 left!

0

21

Homelite 518391001

Filter

$

$

Not available

22

Homelite 620599001

Axle (D13.3 x 95 mm)
(Superseded to 620599007)

$4.49

$

Usually ships in 3-7 days

0

23

Homelite 308451004

Wheel (12 in. x 2 in.)

$

$

Not available

24

Homelite 310710001

Front Shroud Assembly

Note: (Inc. Key Nos. 25-28)

$

$

Not available

25

Homelite 940654117

Shroud Warning Label (FR)

$

$

Not available

26

Homelite 940719011

Shroud Warning Label

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 940779035

PSI/GPM Performance Label (ENG/FR)

$

$

Currently unavailable

28

Homelite 940694002

Deck Removal Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 661569001

Screw (12-24)

$

$

Not available

30

Homelite 308494015

Wand Assembly
(Superseded to 308494058)

$

$

Not available

31

Homelite 308655006

Homelite Engine

Note: (HL80833, CARB)

$

$

Not available

31

Homelite 309591037

Homelite Engine

Note: (HL80835, EPA)

$

$

Currently unavailable

32

Homelite 940850002

Logo Label (Homelite)

$

$

Currently unavailable

33

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 308662001

Filter Screen

$

$

Not available

36

Homelite 940779036

Performance Label

$

$

Currently unavailable

37

Homelite 940324014

Homelite Inquires Label

$

$

Not available

38

Homelite 940872001

E85 Label

$

$

Not available

39

Homelite 940947003

Combustion Warning Label

$

$

Not available

40

Homelite 960433001

Start/Run/Choke Label

$

$

Currently unavailable

41

Homelite 940647045

Quick Start Label

$

$

Currently unavailable

42

Homelite 940433001

Danger Hang Tag Label

$

$

Not available

43

Homelite 660938004

Bolt (M5 x 40 mm)

$

$

Not available

44

Homelite 678632001

Spring Clip

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 660733003

Screw (12-14 x 1/2 in., Pan Hd.)

$

$

Not available

46

Homelite 308652002

Hose Storage Strap
(Superseded to 308652001)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 660643008

Screw (1/4-20 x 40 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 519821001

Trigger Handle Lock

$

$

Not available

49

Homelite 310702002

Upper Handle Assembly

Note: (Inc. Key No. 58)

$

$

Currently unavailable

50

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

51

Homelite 660760002

Screw (1/4-20 x 45 mm, Truss Hd.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 519820001

Upper Trigger Handle Holder

$

$

Not available

53

Homelite 940676008

Data Label

$

$

Currently unavailable

54

Homelite 638318003

Washer (D15 x D5.5 x 2t)

$

$

Not available

55

Homelite 519002001

Lower Trigger Handle Holder

$

$

Not available

56

Homelite 678390001

Lock Nut (M5)

$

$

Not available

57

Homelite 308652004

Hose Attachment System Strap

$

$

Not available

58

Homelite 518992001

End Cap (25 mm)

$

$

Not available

59

Homelite 310660001

Soap Blaster Nozzle Assembly

$

$

Not available

60

Homelite 308697016

0º Nozzle

$

$

Not available

61

Homelite 308700016

40º Nozzle

$

$

Not available

62

Homelite 308690016

25º Nozzle

$

$

Currently unavailable

63

Homelite 570727006

Nozzle Holder

$6.99

$

In Stock, only 1 left!

0

64

Homelite 638637002

Spring Clip

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 308835004

Hose
(Superseded to 308835066)

$

$

Not available

66

Homelite 570105001

Tube Conduit

$

$

Not available

67

Homelite 308760017

Trigger Handle Assembly
(Superseded to 308760028)

Note: (Inc. Key Nos. 68-71)

$46.99

$

Usually ships in 3-7 days

0

68

Homelite 940705088

Logo Label (Homelite Trigger Handle)

$

$

Not available

69

Homelite 940654083

Warning Label (ENG)

$2.99

$

Usually ships in 3-7 days

0

70

Homelite 940654089

Warning Label (FR/SP)

$1.49

$

In Stock, only 1 left!

0

71

Homelite 940786006

Maximum Pressure Label

$

$

Not available

72

Homelite 308918004

Expand Style Quick Connect

$

$

Not available

73

Homelite 678650001

Hanger

$

$

Not available

74

Homelite 310701001

15 ft. Self-Coiling Garden Hose

$

$

Not available

75

Homelite 308792005

Deck High Pressure Hose Assembly
(Superseded to 308792002A)

$

$

Not available

76

Homelite 678774002

Lock Nut (M8 x 1-1/4 mm)

$

$

Not available

77

Homelite 310706001

Deck Bracket Assembly

Note: (Inc. Key Nos. 78-81)

$31.99

$

Usually ships in 3-7 days

0

78

Homelite 678633001

Deck Lock Spring

$

$

Not available

79

Homelite 678640001

Hitch Pin

$

$

Not available

80

Homelite 678597001

Release Handle

$

$

Not available

81

Homelite 678406006

Connect Pin

$

$

Not available

82

Homelite 310698001

Lift Handle

$

$

Not available

83

Homelite 660391002

Hex Bolt (M8 x 20 mm)

$2.99

$

Usually ships in 3-7 days

0

84

Homelite 660962003

Hex Bolt (M8 x 60 mm)

$1.99

$

In Stock, only 3 left!

0

85

Homelite 678760002

Bolt (M8 x 40 mm, Hex Hd.)

$

$

Currently unavailable

86

Homelite 678169004

Thermal Release Valve

$

$

Not available

87

Homelite 308653006

Pump (Himore)
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

88

Homelite 518993001

Frame Glide

$

$

Not available

89

Homelite 308939010

Left Frame Assembly

Note: (Inc. Key No. 88)

$26.99

$

Usually ships in 3-7 days

0

90

Homelite 308938010

Right Frame Assembly

Note: (Inc. Key No. 88)

$

$

Not available

91

Homelite 660760003

Screw (T-30 Torx, 1/4-20, Truss Hd. Shoulder)

$2.49

$

Usually ships in 3-7 days

0

92

Homelite 661570001

Screw (1/4-20 x 40 mm, T-30 Torx Flat Hd.)

$

$

Not available

93

Homelite 661505003

Hex Bolt (M8 x 50 mm, Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

94

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, Qty 5

0

95

Homelite 678899001

Hitch Pin

$

$

Not available

96

Homelite 638385007

Engine Plate

$

$

Not available

97

Homelite 519004001

Handle Spacer

$

$

Not available

98

Homelite 518190001

Knob Assembly

$

$

Not available

99

Homelite 678142001

Acorn Nut (Center lock)

$

$

Not available

100

Homelite 661568001

Carriage Bolt (1/4-20 x 88.5 mm)

$2.99

$

Usually ships in 3-7 days

0

101

Homelite 678041003

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

102

Homelite 310708001

Frame Connector Assembly

Note: (Inc. Key Nos. 45-46)

$

$

Not available

103

Homelite 308996003

Deck Swivel w/Nozzle Assembly

$

$

Currently unavailable

104

Homelite 678548002

Nozzle w/015 Jet (1/8 NPT)

$

$

Currently unavailable

105

Lubricant (SAE10W30)

Note: (Purchase locally)

$

$

Not available

106

Homelite 308862003

Outlet Tube

$8.99

$

In Stock, only 3 left!

0

107

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

108

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

109

Homelite 678546001

Trunk

$

$

Not available

Homelite 987000883

Operator's Manual

$

$

Currently unavailable
