HK 28 (UT-18013) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

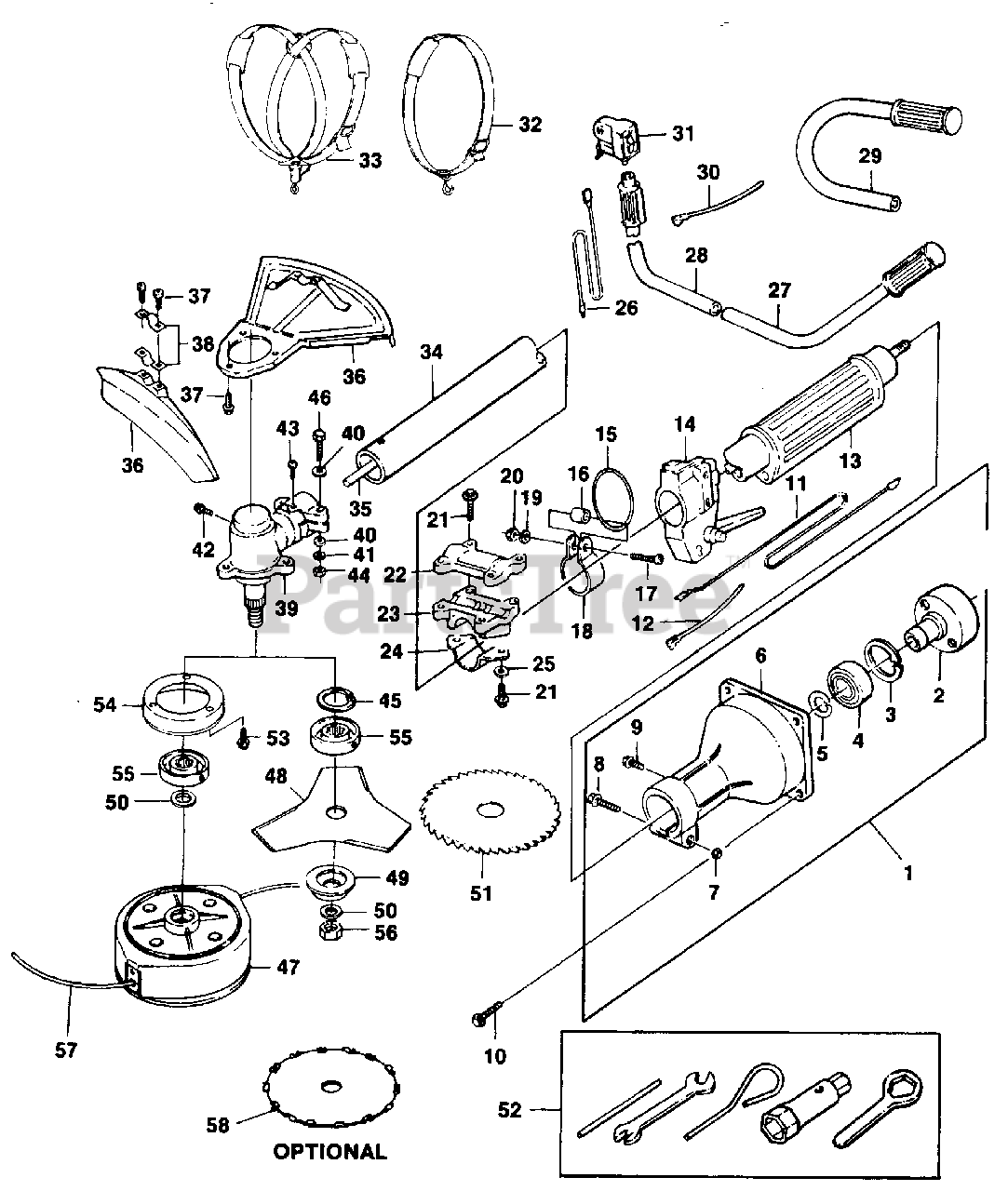

Boom & Head Parts Diagram

  • Title

1

Homelite A9806193

CLUTCH CASE ASSY.

$

$

Currently unavailable

2

Homelite 9806194

DRUM- Clutch

$

$

Not available

3

Homelite 9806156

RING- Stop

$

$

Currently unavailable

4

Homelite 9806155

BEARING- Ball

$

$

Not available

5

Homelite 9855076

RING- Stop

$

$

Not available

6

Homelite 9806154

CASE- Clutch

$

$

Not available

7

Homelite 9806158

NUT

$

$

Currently unavailable

8

Homelite 9806157

BOLT

$

$

Currently unavailable

9

Homelite 9806164

SCREW

$

$

Currently unavailable

10

Homelite 9855081

BOLT

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 0269354

WIRE- Lead

$

$

Currently unavailable

12

Not Used On This Model

$

$

Not available

13

Homelite 9806161

GRIP

$

$

Not available

14

Not Used On This Model

$

$

Not available

15

Homelite 9855087

RING- Hanger

$

$

Currently unavailable

16

Homelite 9855088

SPACER

$

$

Currently unavailable

17

Homelite 0269352

SCREW

$

$

Currently unavailable

18

Homelite 9806162

HANGER

$

$

Currently unavailable

19

Homelite 9855112

WASHER- Spring

$

$

Currently unavailable

20

Homelite 9855113

NUT
(Superseded to 9806537)

$

$

Not available

21

Homelite 9806050

BOLT- w/Washer

$

$

Currently unavailable

22

Homelite 9855092

BRACKET- Top

$

$

Currently unavailable

23

Homelite 9855093

BRACKET- Upper

$

$

Currently unavailable

24

Homelite 0269369

BRACKET- Lower

$

$

Currently unavailable

25

Not Used On This Model

$

$

Not available

26

Not Used On This Model

$

$

Not available

27

Not Used On This Model

$

$

Not available

28

Not Used On This Model

$

$

Not available

29

Homelite 9855091

U-HANDLE

$

$

Not available

30

Not Used On This Model

$

$

Not available

31

Not Used On This Model

$

$

Not available

32

Homelite DA92703B

HARNESS

$

$

Currently unavailable

33

Not Used On This Model

$

$

Not available

34

Homelite A9806159

PIPE ASSY

$

$

Currently unavailable

35

Homelite 9806160

DRIVESHAFT

$

$

Currently unavailable

36

Homelite 9855116

SHIELD

$

$

Currently unavailable

37

Homelite 9855118

SCREW

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 9855117

STAY

$

$

Not available

39

Homelite A9806167

GEAR CASE ASSY.

$

$

Not available

40

Homelite 0269359

WASHER- Flat

$

$

Not available

41

Homelite 0269358

WASHER- Spring

$6.49

$

Usually ships in 3-7 days

0

42

Homelite 9855115

SCREW

$

$

Currently unavailable

43

Homelite 0269357

SCREW

$

$

Currently unavailable

44

Homelite 9855113

NUT
(Superseded to 9806537)

$

$

Not available

45

Homelite 9856156

RING- Stop

$

$

Currently unavailable

46

Homelite 0269356

BOLT

$

$

Currently unavailable

47

STRING HEAD ASSY.

Note: Original equipment manufacturer's stringhead parts are not supplied. If parts are needed order:

$

$

Not available

48

Homelite D98717A

TRI ARC BLADE
(Superseded to D98717C)

$21.99

$

Usually ships in 3-7 days

0

49

Homelite 0043607

FLANGE- Lower

$

$

Currently unavailable

50

Homelite 9855123

WASHER- Special

$

$

Not available

51

Not Used On This Model

$

$

Not available

52

Homelite A0269363

TOOL SET

$

$

Currently unavailable

53

Homelite 0269360

SCREW

$

$

Currently unavailable

54

Homelite 9855119

COVER

$

$

Not available

55

Homelite 0043606

FLANGE- Upper

$

$

Currently unavailable

56

Homelite 9855124

BLADE- Nut

$

$

Not available

57

Homelite 9807101

LINE- .105" Dia. (250 ft.)

$

$

Currently unavailable

Homelite 9807104

LINE- .105" Dia. (700 ft.)
(Superseded to G07807)

$131.99

$

Usually ships in 3-7 days

0

58

Homelite DA00714

MACHETE BLADE - (7")

$

$

Currently unavailable

Homelite A00116A

Stringhead Assy.

$

$

Not available

Homelite 00490

Drive Connector

$

$

Not available

Homelite 812721

Retainer Nut

$

$

Currently unavailable

Homelite A00143

Spool & String

$28.99

$

Usually ships in 3-7 days

0

Homelite A00144

Housing & Eyelet
(Superseded to A00116A)

$

$

Not available
