HK 18 (UT-18003) - Homelite String Trimmer Engine & Peripherals Parts Diagram

String Trimmer

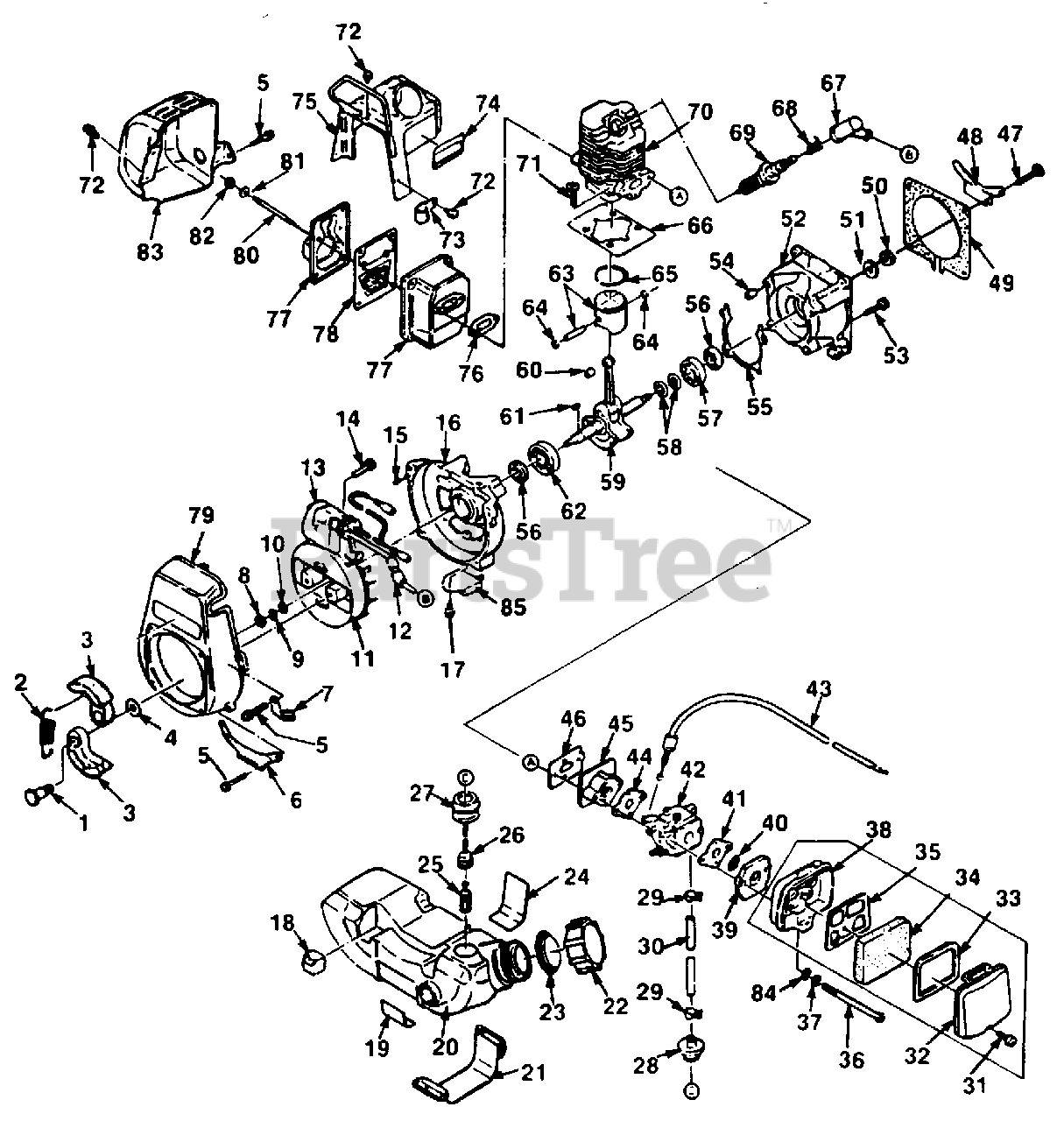

Engine & Peripherals Parts Diagram

  • Title

1

Homelite 9806036

PIN- Clutch

$

$

Currently unavailable

2

Homelite 9806038

SPRING- Clutch

$

$

Currently unavailable

3

Homelite 9806037

SHOE- Clutch

$

$

Not available

4

Homelite 9806039

WASHER

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 9855286

SCREW- (M5 x 16)

$

$

Currently unavailable

6

Homelite 9855288

BRACKET- Tank

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 9855025

BRACKET- Cable

$

$

Currently unavailable

8

Homelite 9806080

NUT- (M6 mm)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 9806082

WASHER- Spring

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 9806081

WASHER

$

$

Currently unavailable

11

Homelite 9855029

FLYWHEEL

$

$

Currently unavailable

12

Homelite 9855033

TUBE

$

$

Currently unavailable

13

Homelite 9855030

COIL- Ignition

$

$

Currently unavailable

14

Homelite 9855293

BOLT- (M5 x 24)

$

$

Currently unavailable

15

Homelite 9806043

PIN- Dowel

$

$

Currently unavailable

16

Homelite 9855017

CRANKCASE

$

$

Currently unavailable

17

Homelite 9855362

SCREW- (M4 x 8)

$

$

Currently unavailable

18

Homelite 9806070

DAMPER

$

$

Not available

19

Homelite 9855290

DAMPER

$

$

Currently unavailable

20

Homelite A9855021

FUEL TANK (Incl. item #22 & 23)

$

$

Currently unavailable

21

Homelite 9855027

BAND- Tank

$

$

Currently unavailable

22

Homelite 9806066

CAP- Tank

$

$

Currently unavailable

23

Homelite 9806067

BREATHER

$

$

Currently unavailable

24

Homelite 9855028

DAMPER

$

$

Currently unavailable

25

Homelite A9855277

FILTER ASSEMBLY

$

$

Currently unavailable

26

Homelite 9806063

CLIP

$

$

Not available

27

Homelite 9855279

TUBE

$

$

Currently unavailable

28

Homelite 9855022

JOINT

$

$

Not available

29

Homelite 9855282

CLIP

$

$

Currently unavailable

30

Homelite 9855023

TUBE

$

$

Currently unavailable

31

Homelite 9855007

SCREW (M4 x 14)

$

$

Not available

32

Homelite 9855005

CAP- Air cleaner

$

$

Currently unavailable

33

Homelite 9855006

PLATE- Air Cleaner

$

$

Currently unavailable

34

Homelite 9855003

ELEMENT

$

$

Currently unavailable

35

Homelite 9855004

PLATE- Air cleaner

$

$

Currently unavailable

36

Homelite 9855008

BOLT

$

$

Not available

37

Homelite 9855450

WASHER- Spring

$

$

Currently unavailable

38

Homelite 9855002

CASE- Air filter

$

$

Currently unavailable

39

Homelite 9855009

SPACER

$

$

Currently unavailable

40

Homelite 9855010

SCREEN

$

$

Currently unavailable

41

Homelite 9855011

GASKET

$

$

Not available

42

Homelite A9855036

CARBURETOR ASSEMBLY

$

$

Currently unavailable

43

Homelite 9855132

CABLE- Throttle

$

$

Currently unavailable

44

Homelite 9855011

GASKET

$

$

Not available

45

Homelite 9855019

INSULATOR

$

$

Currently unavailable

46

Homelite 9855271

GASKET

$

$

Currently unavailable

47

Homelite 9855034

SCREW (M5 x 18)

$

$

Currently unavailable

48

Homelite 9855026

BRACKET- Tank

$

$

Currently unavailable

49

Homelite 9855035

GASKET

$

$

Currently unavailable

50

Homelite 9806080

NUT- (M6 MM)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 9806081

WASHER- (M6)

$

$

Currently unavailable

52

Homelite 9855018

CRANKCASE

$

$

Currently unavailable

53

Homelite 9806045

SCREW

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 9855268

PIN- Dowel

$

$

Currently unavailable

55

Homelite 9855266

GASKET

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 9806048

SEAL- Oil

$

$

Currently unavailable

57

Homelite 9806047

BEARING- Ball (6000C3)

$

$

Currently unavailable

58

Homelite A9806029

SHIM ASSEMBLY

$

$

Currently unavailable

59

Homelite A9855016

CRANK SHAFT ASSEMBLY

$

$

Currently unavailable

60

Homelite 9855263

BEARING- Plain

$

$

Currently unavailable

61

Homelite 9806083

KEY

$

$

Currently unavailable

62

Homelite 9806046

BEARING- Ball (6200C3)

$

$

Currently unavailable

63

Homelite A9855258

PISTON ASSEMBLY

$

$

Currently unavailable

64

Homelite 9855261

RING- Snap

$

$

Currently unavailable

65

Homelite 9855259

RING- Piston

$

$

Currently unavailable

66

Homelite 9855249

GASKET

$

$

Not available

67

Homelite 9855032

CAP- Plug

$

$

Currently unavailable

68

Homelite 9806091

SPRING

$

$

Currently unavailable

69

Homelite 63710S

SPARK PLUG (DJ7Y)
(Superseded to GM190036)

$

$

Not available

70

Homelite 9855248

CYLINDER

$

$

Currently unavailable

71

Homelite 9855250

SCREW

$

$

Currently unavailable

72

Homelite 9806022

SCREW (M4 x 10)

$

$

Not available

73

Homelite 9855294

CLAMP

$

$

Currently unavailable

74

Homelite 98125

LABEL

$

$

Not available

75

Homelite 9855284

SHROUD

$

$

Not available

76

Homelite 9855256

GASKET

$9.49

$

Usually ships in 3-7 days

0

77

Homelite A9855012

MUFFLER ASSY

$

$

Currently unavailable

78

Homelite 9855133

SPARK ARRESTOR

$

$

Currently unavailable

79

Homelite 9855131

HOUSING- Fan

$

$

Currently unavailable

80

Homelite 9855257

STUD

$

$

Currently unavailable

81

Homelite 9806017

WASHER

$1.99

$

Usually ships in 3-7 days

0

82

Homelite 9806016

NUT

$

$

Currently unavailable

83

Homelite 9855013

COVER- Muffler

$

$

Not available

84

Homelite 9806017

WASHER

$1.99

$

Usually ships in 3-7 days

0

85

Homelite 9806078

IGNITER

$

$

Currently unavailable

Homelite A98059

PULLER- Rotor (Accessory)

$

$

Not available
