HHT35 S UKAT (HAHA) - Honda String Trimmer, Made in USA (SN: HAHA-1000001 - HAHA-1999999) FRAME PIPE Parts Diagram

String Trimmer, Made in USA

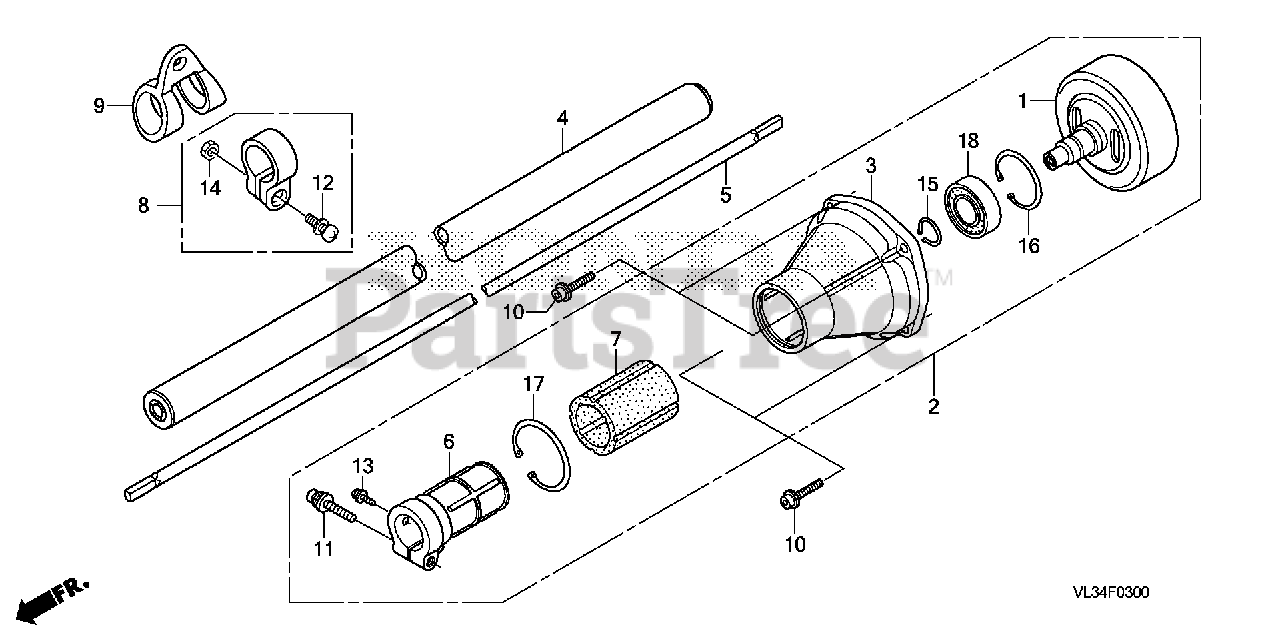

FRAME PIPE Parts Diagram

  • Title

1

Honda 22100-VL3-D41

CLUTCH OUTER

$20.99

$

Usually ships in 3-6 days

0

2

Honda 22260-VL3-D41

HOUSING ASSY., CLUTCH

$94.99

$

In Stock, only 1 left!

0

3

Honda 22261-VK9-A01

HOUSING, CLUTCH (A)

$42.99

$

Usually ships in 3-6 days

0

4

Honda 40230-VL3-D40

PIPE ASSY., FRAME

$81.99

$

Usually ships in 3-6 days

0

5

Honda 41411-VH8-640

SHAFT, DRIVE

$16.99

$

Usually ships in 3-6 days

0

6

Honda 50225-VL3-D41

BRACKET, ENGINE MOUNTING

$16.99

$

Usually ships in 3-6 days

0

7

Honda 50237-VK9-A01

RUBBER, ENGINE MOUNTING

$4.49

$

Usually ships in 3-6 days

0

8

Honda 50374-VH8-641

HOLDER A, HANGER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 50376-VF9-701

HOLDER B, HANGER

$11.99

$

In Stock, only 1 left!

0

10

Honda 90102-VK4-000

BOLT, FLANGE SOCKET (6X20)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90104-VK9-A01

BOLT, SOCKET (6X30)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 93892-05025-00

SCREW-WASHER (5X25)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93893-05010-00

SCREW-WASHER (5X10) (NOT AVAILABLE)

$

$

Not available

14

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

16

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.49

$

In Stock, only 2 left!

0

17

Honda 94520-45000

CIRCLIP (INNER) (45MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$17.99

$

Usually ships in 3-6 days

0
