HHT35 S UKAT (HAHA) - Honda String Trimmer, Made in USA (SN: HAHA-1000001 - HAHA-1999999) CARBURETOR Parts Diagram

String Trimmer, Made in USA

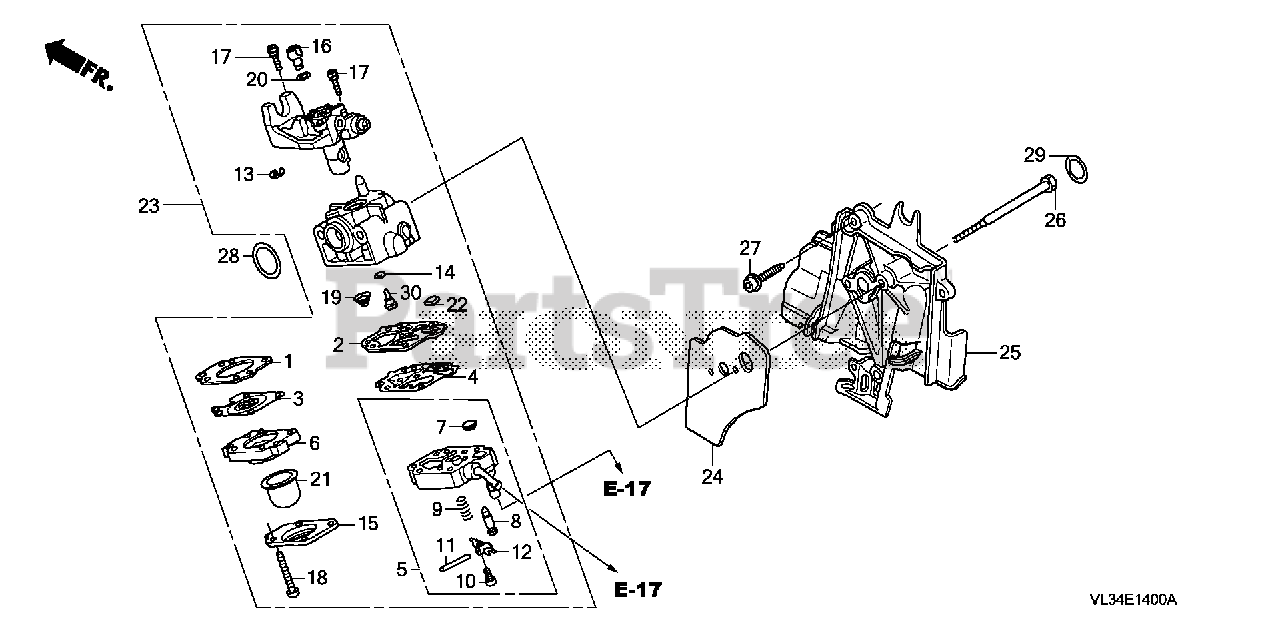

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZM3-004

GASKET, METERING DIAPHRAGM

$2.49

$

In Stock, Qty 6

0

2

Honda 16011-Z0H-013

GASKET, PUMP (CARBURETOR NO.)

$4.99

$

In Stock, Qty 12

0

3

Honda 16013-Z0H-003

DIAPHRAGM ASSY., METERING

$18.99

$

Usually ships in 3-6 days

0

4

Honda 16014-ZM3-004

DIAPHRAGM, PUMP

$4.49

$

In Stock, only 2 left!

0

5

Honda 16015-Z0H-013

BODY ASSY., PUMP (CARBURETOR NO.)

Note: Use up to Engine SN WYB 14D.

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16015-Z6J-003

BODY ASSY., PUMP (CARBURETOR NO.)
(Superseded to 16015-Z6J-023)

Note: Use from Engine SN WYB 36 to WYB 36.

$43.99

$

In Stock, only 1 left!

0

5

Honda 16015-Z6J-013

BODY ASSY., PUMP (CARBURETOR NO.)
(Superseded to 16015-Z6J-023)

Note: Use from Engine SN WYB 34A.

$43.99

$

In Stock, only 1 left!

0

6

Honda 16017-ZM3-004

BODY ASSY., AIR PURGE

$10.99

$

In Stock, Qty 8

0

7

Honda 16018-ZM3-802

SCREEN, INLET (CARBURETOR NO.)

$1.49

$

In Stock, only 1 left!

0

8

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16020-ZM3-004

SPRING, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

10

Honda 16021-ZM3-004

SCREW, METERING LEVER PIN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16022-ZM3-014

SEE PART DETAILS - PRI; PIN, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

12

Honda 16023-ZM3-004

LEVER, METERING

$2.99

$

In Stock, Qty 6

0

13

Honda 16024-Z0H-003

RING, RETAINING

$1.99

$

In Stock, Qty 5

0

14

Honda 16025-ZM3-004

O-RING

$2.99

$

In Stock, Qty 8

0

15

Honda 16026-ZM3-004

COVER, PRIMER PUMP

$3.99

$

In Stock, only 1 left!

0

16

Honda 16027-ZM3-004

SWIVEL

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16028-ZM3-004

SCREW, THROTTLE COLLAR

$1.99

$

In Stock, only 3 left!

0

18

Honda 16029-ZM3-004

SCREW, PUMP COVER

$1.99

$

In Stock, Qty 6

0

19

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, only 4 left!

0

20

Honda 16031-ZM3-004

WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16032-ZM3-004

PUMP, PRIMER

$2.99

$

In Stock, Qty 6

0

22

Honda 16035-ZM3-802

FILTER, FUEL INLET (CARBURETOR NO.)

$11.99

$

In Stock, only 1 left!

0

23

Honda 16100-Z0Z-034

CARBURETOR ASSY. (WYB 16C)
(Superseded to 16100-Z0Z-815)

Note: Use up to Engine SN 1804408.

$72.99

$

In Stock, only 2 left!

0

23

Honda 16100-Z0Z-815

CARBURETOR ASSY. (WYB 14D)

Note: Use up to Engine SN 2432707.

$72.99

$

In Stock, only 2 left!

0

23

Honda 16100-Z6J-013

SEE PART DETAILS - PRI; CARBURETOR ASSY. (WYB 34A/B)
(Superseded to 16100-Z6J-023)

Note: Use from Engine SN 4147862.

$45.99

$

Usually ships in 3-6 days

0

23

Honda 16100-Z6K-802

SEE PART DETAILS - PRI; CARBURETOR ASSY. (WYB 36A/B)

Note: Use from Engine SN 2432708 to 4147861.

$

$

Not available

24

Honda 16221-Z0Z-000

GASKET, CARBURETOR

$7.49

$

In Stock, Qty 15

0

25

Honda 19631-Z0Z-010

SHROUD

Note: Use up to Engine SN 4147861.

$121.99

$

In Stock, only 1 left!

0

25

Honda 19631-Z0Z-020

SHROUD

Note: Use from Engine SN 4147862.

$14.99

$

Usually ships in 3-6 days

0

26

Honda 90014-Z0H-003

BOLT (5X53)

$0.99

$

In Stock, only 2 left!

0

27

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

Note: Use up to Engine SN 2949968.

$0.99

$

In Stock, only 3 left!

0

27

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

Note: Use from Engine SN 2949969.

$4.99

$

Usually ships in 3-6 days

0

28

Honda 91301-ZM3-000

O-RING (14.8X2.4)

$1.49

$

In Stock, only 4 left!

0

29

Honda 91308-Z3E-000

O-RING (12.3X2.4) (CARBURETOR NO.)

$1.99

$

In Stock, Qty 11

0

30

Honda 99101-ZM5-0330

JET (#33) (CARBURETOR NO.)

Note: (Optional).Use from Engine SN WYB 34A.

$11.99

$

In Stock, only 1 left!

0

30

Honda 99101-ZM5-0340

JET (#34) (CARBURETOR NO.)

Note: Use from Engine SN WYB 34A.

$11.99

$

Usually ships in 3-6 days

0

30

Honda 99101-ZM5-0350

JET (#35) (CARBURETOR NO.)

Note: (Optional).Use up to Engine SN WYB 36A.

$11.99

$

Usually ships in 3-6 days

0

30

Honda 99101-Z0H-0320

JET (#32) (CARBURETOR NO.)

Note: (Optional).Use from Engine SN WYB 34A.

$5.99

$

In Stock, only 1 left!

0

30

Honda 99101-Z0Z-0360

JET (#36) (CARBURETOR NO.)

Note: (Optional).Use up to Engine SN WYB 36A.

$9.99

$

Usually ships in 3-6 days

0

30

Honda 99101-Z0Z-0370

JET (#37) (CARBURETOR NO.)

Note: Use up to Engine SN WYB 36A.

$9.99

$

Usually ships in 3-6 days

0
