HHT35 S UKAT/A (HAHA) - Honda String Trimmer, Made in USA (SN: HAHA-2000001 - HAHA-9999999) GEAR CASE Parts Diagram

String Trimmer, Made in USA

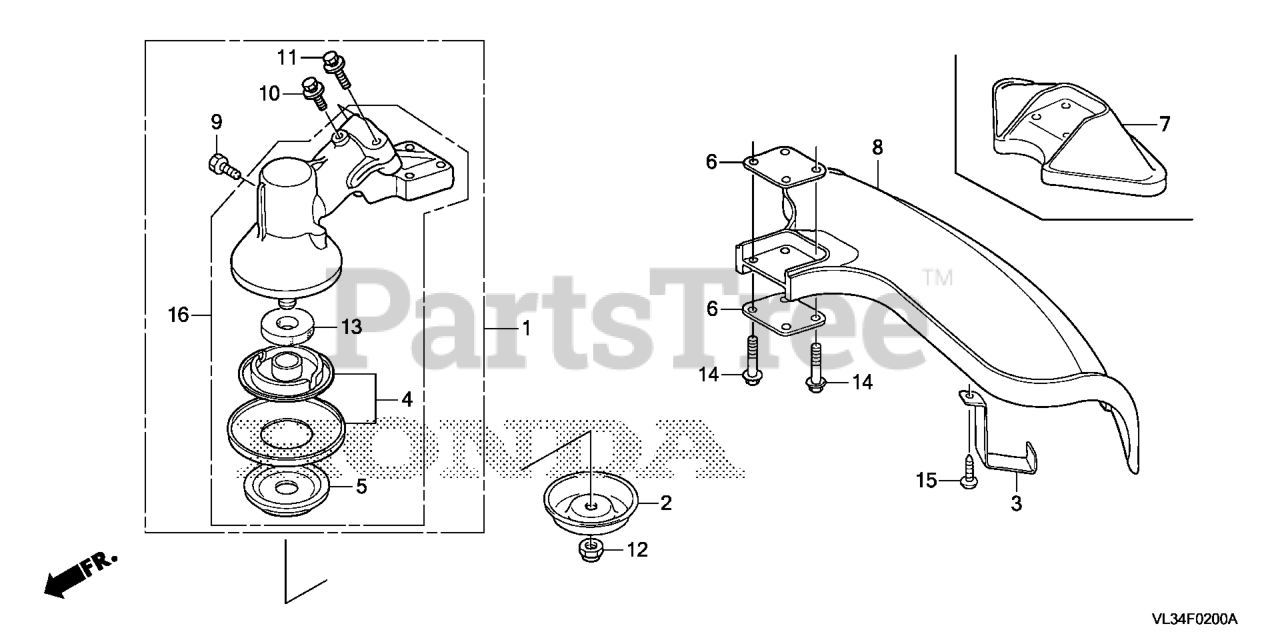

GEAR CASE Parts Diagram

  • Title

2

Honda 72566-VH8-761

COVER, NUT

$8.99

$

Usually ships in 3-6 days

0

3

Honda 72571-VH8-640

PLATE, NYLON CUTTING

$3.49

$

In Stock, only 1 left!

0

4

Honda 72610-VH8-641

SEE PART DETAILS - PRI; HOLDER, BLADE

$62.99

$

Usually ships in 3-6 days

0

5

Honda 72621-VH8-641

HOLDER B, BLADE

$18.99

$

Usually ships in 3-6 days

0

6

Honda 76242-VH8-640

SPACER, DEFLECTOR

$14.99

$

In Stock, only 2 left!

0

7

Honda 76247-VF9-D60

DEFLECTOR, GRASS

$26.99

$

Usually ships in 3-6 days

0

8

Honda 76247-VH8-640

DEFLECTOR, GRASS

$11.99

$

Usually ships in 3-6 days

0

9

Honda 90102-VH8-641

BOLT, HEX. (8X10)

$3.49

$

In Stock, only 1 left!

0

10

Honda 93893-05012-00

SCREW-WASHER (5X12) (Honda Code 0638734).

$1.99

$

In Stock, only 3 left!

0

11

Honda 93403-05025-04

BOLT-WASHER (5X25)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90302-VH8-760

NUT, LOCK (10MM)

$4.99

$

In Stock, only 1 left!

0

13

Honda 91251-VH8-641

OIL SEAL

$2.99

$

Usually ships in 3-6 days

0

14

Honda 93403-05028-08

SEE PART DETAILS - PRI; BOLT-WASHER (5X28)

$2.99

$

In Stock, Qty 20+

0

15

Honda 93913-25220

SCREW, TAPPING (5X12) (PO)

$0.99

$

In Stock, Qty 8

0

16

Honda 41100-VH8-642

CASE ASSY., GEAR
(Superseded to 41100-VH8-643)

$102.99

$

In Stock, only 1 left!

0
